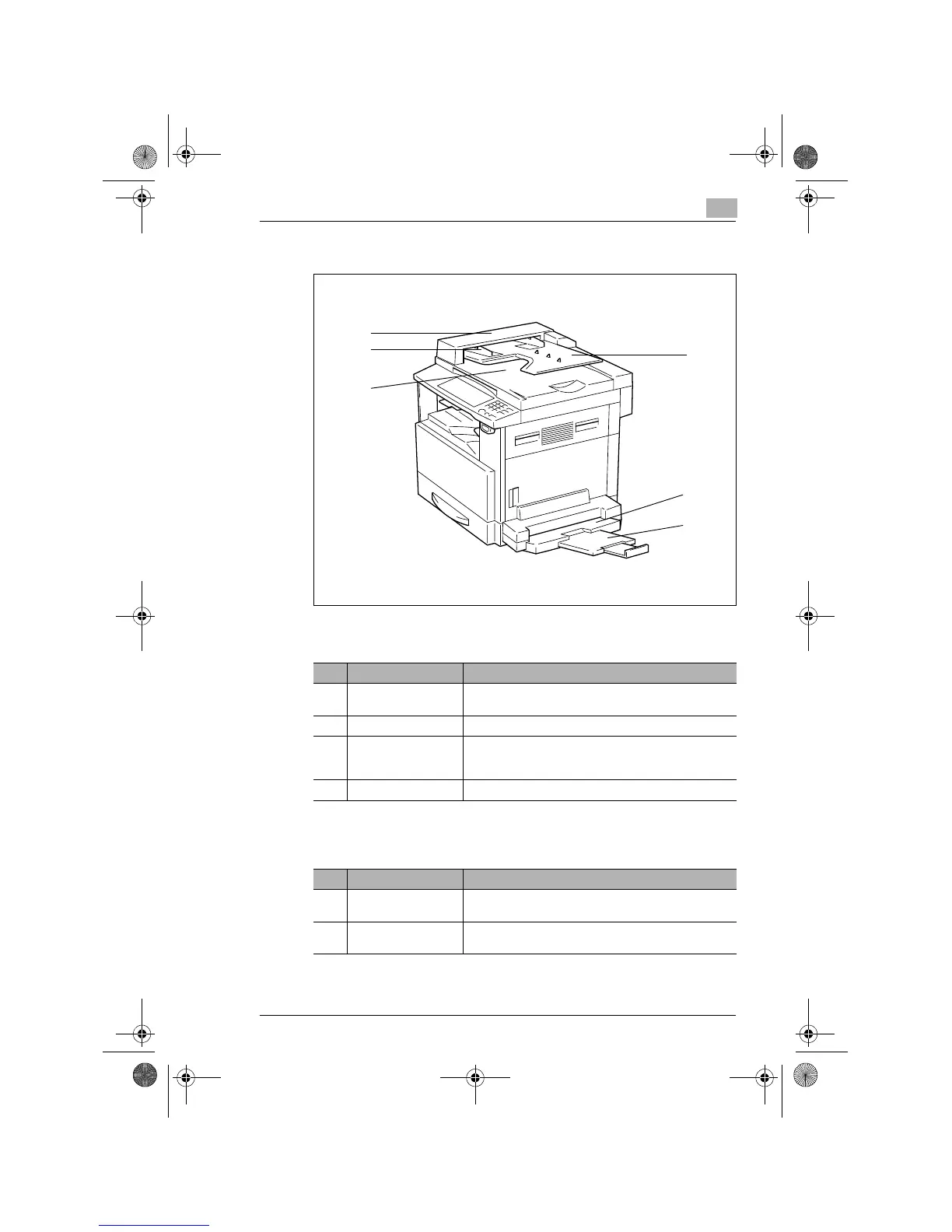

Options
Automatic Document Feeder
Multiple Bypass Tray
No. Part Name Description
1 Document Exit Tray Receives originals which have been scanned by the
copier.
2 Document Guide Plate Slide the guide plate to the size of the originals. (p.4-3)
3 Document Feeder
Cover (Doc. Feed
Cover)
Open when clearing an original that has been misfed. (p.8-
18)
4 Document Feeder Tray Load the originals to be copied face up on this tray. (p.4-3)
No. Part Name Description
5 Bypass Tray Up to 50 sheets of plain paper or 20 sheets of special paper
can be loaded on this tray. (p.8-7)
6 Bypass Tray Extender Slide this Bypass Tray Extender out to load paper of a large
size.
1
2
3
4
5
6
