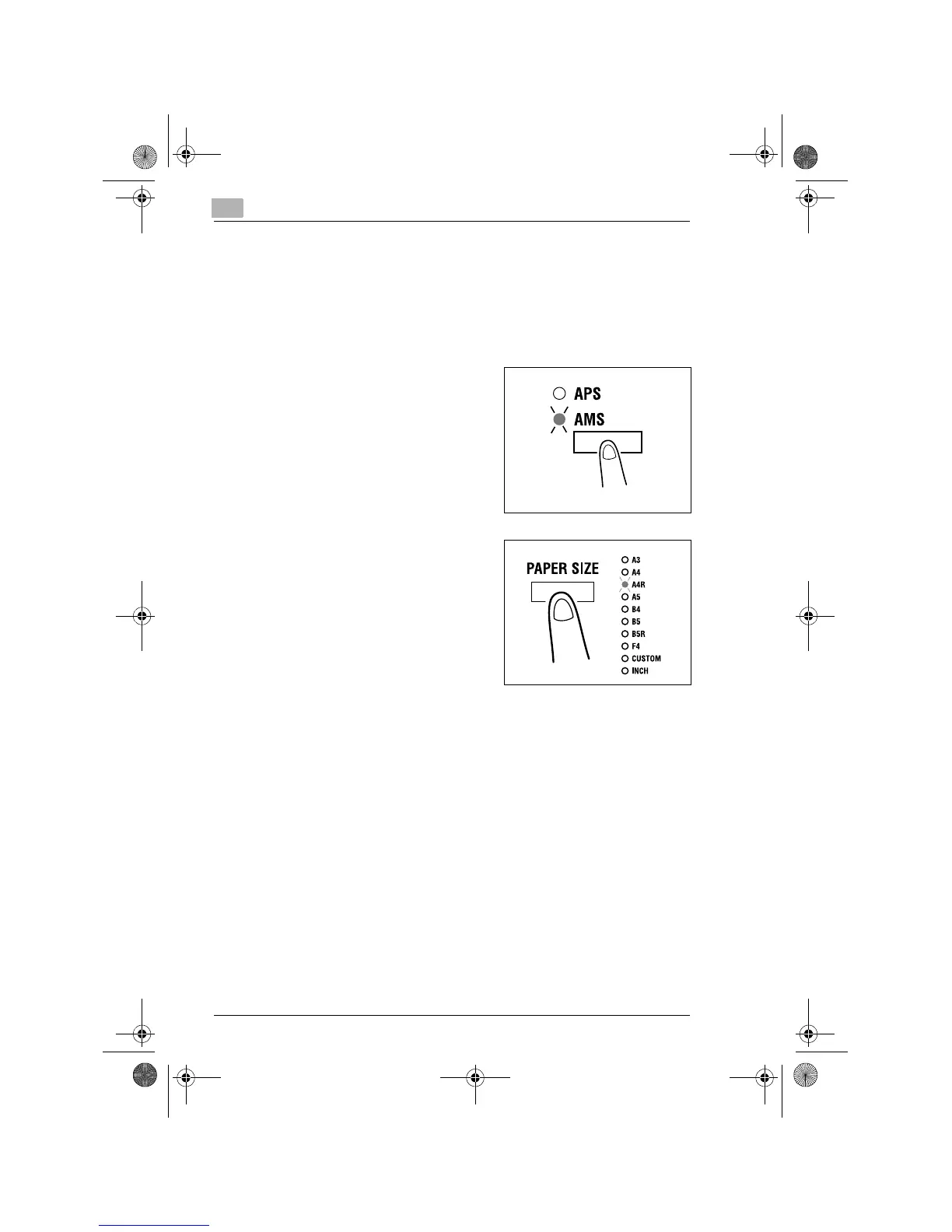

5
Making
Copies
5-12
Setting the Z
oom Ratio
<AMS>
1
Position
the origi
nal.
❍
Origina
l Loading
(p.4-1)
2
Press the [APS/A
MS] key on th
e
control
panel unti
l the AMS in
dicat
or
light
s.
3
Press the [P
APER SIZE] key
on the
control p
anel unt
il the desire
d paper
size i
ndicator l
ights.
4
Make a
ny other n
ecessary
settings
.
❍
Image Den
sity
(p.5-16)
5
Enter the n
umber
of copies to
be ma
de from th
e Key Pad an
d then
press th
e [START] key
.
Konica7115_7118.book Pag
e 12 Tuesday, October 16,
2001
10:51 AM
70
72
Table of Contents
Default Chapter
1
Energy Star
1
Table of Contents
2
1 Introduction
8
We Want You to be a Satisfied Customer
8
Safety Information
9
Warning and Precaution Symbols
9
Meaning of Symbols
9
Warning
10
Caution
11
Precautions for Routine Use
12
Safety Information
13
Laser Safety
13
Internal Laser Radiation
13
Laser Safety Label
15
Warning Label
15
Ozone Release
16
About the Instruction Manual
17
Explanation of Manual Conventions
17
] Key
17
Explanation of Basic Concepts and Symbols
18
Paper Feeding
18
Width" and "Length
19
Paper Orientation
19
2 Precautions
20
Installation Precautions
20
Installation Site
20
Power Source
20
Space Requirements
21
Operation Precautions
22
Operating Environment
22
Proper Use
22
Transporting the Copier
23
Care of Copier Supplies
23
Legal Restrictions on Copying
24
3 Before Making Copies
26
Available Features
26
Components and Their Functions
29
Parts Names and Their Functions
31
Copier
31
Inside the Copier
33
Options
34
Control Panel
37
Names of Control Panel Parts and Their Functions
37
Icons on the Control Panel
39
Turning on and off and the Initial Mode
40
How to Turn ON/OFF the Copier
40
When Copier Is Turned on
40
Default Settings
41
Useful Functions
42
Auto Resetting
42
Auto Panel Reset
42
Power Save
43
Auto Shut off
43
Auto Copy Start
43
Interrupting Copy Jobs
44
Auto Tray Switching
44
Account Number
45
To Enter an Account Number
45
Printing from the Personal Computer
46
Sending and Receiving Faxes Using the Copier
46
Copy Paper
47
Paper Specifications
47
4 Loading Originals
50
Two Ways of Loading the Original
50
Specific Types of Originals
50
Loading Originals in the Automatic Document Feeder
51
Precautions for Using the Automatic Document Feeder
51
Mixed Originals
53
Place the Original on the Original Glass
55
Precautions for Placing the Original on the Original Glass
55
How to Position a Sheet Original
56
Highly Transparent Originals
57
Books
58
5 Making Copies
60
Copying
60
Selecting the Paper
62
Feeding Paper Manually
64
Making Copies by Using the Bypass Tray
65
Specifying the Zoom Ratio
70
Setting the Zoom Ratio
71
Adjusting the Image Density
75
Interrupting a Copy Job
77
6 Advanced Copying
80
Making 1-Sided Copies
80
Sorting
85
Grouping
87
Erasing Part of Original Image (Erase)
89
Precautions for Erase Position
90
Reversing Original Tonal Arrangements
92
Providing a Image Shift
93
Precautions for Image Shift Position
93
7 Using the Utility Mode
94
User's Choice
95
Mixed Orig
99
Paper Priority
99
Copy Priority
99
Density Priority
99
Density Level Priority (Auto)
99
Density Level Priority (Manual)
100
Output Priority
100
Crisscross Mode
100
4In1 Copy Order
100
Book Binding Position
100
Margin Setting
100
Erase Setting (Left, Top, and Frame)
101
Auto Panel Reset
101
Power Save
101
Auto Shut off
101
Density (ADF)
101
Printer Density
101
Paper Auto Detection
102
Paper Size Detection
102
Paper Type (1St Tray)
102
Paper Type (Bypass Tray)
102
Special Paper Setting
102
Making the User's Choice Settings
103
Drum Dehumidify
105
Toner Replenisher (Auxiliary Toner Replenishing)
106
Custom Size Input
107
Administrator Mode
109
Copy Track
111
Disable Auto Shut off
119
Checking the Total Number of Copies/Prints Produced
121
Storing a Job
123
8 Error Displays and Other Indicators
126
Major Error Displays and Remedial Actions
126
When the Add Paper Indicator Lights up
129
Adding Paper
129
When the Add Toner Indicator Lights up
133
When the Paper Misfeed Indicator Lights
136
Misfeed Indications and Misfeed Locations
136
Clearing a Paper Misfeed
137
9 Troubleshooting Tips
146
When this Type of Copy Is Produced
146
When the Copier Is Not Operating Correctly
149
10 Appendix 10.1 Specifications
150
10 Appendix
150
Copier Konica 7115/7118
150
Automatic Document Feeder DF-217
152
Paper Feed Cabinet PF-121
152
Job Tray IT-102
153
Multiple Bypass Tray MT-102
153
Shifting Unit IS-101
153
Care of the Copier
154
Cleaning
154
Function Combination Table
155
Conditions for Combined Functions
155
List of Paper Sizes and Zoom Ratios
156
Paper Sizes
156
Zoom Ratios(Original Size to Paper Size)
157
