Chapter 5 Disassembly and Assembly
5-114

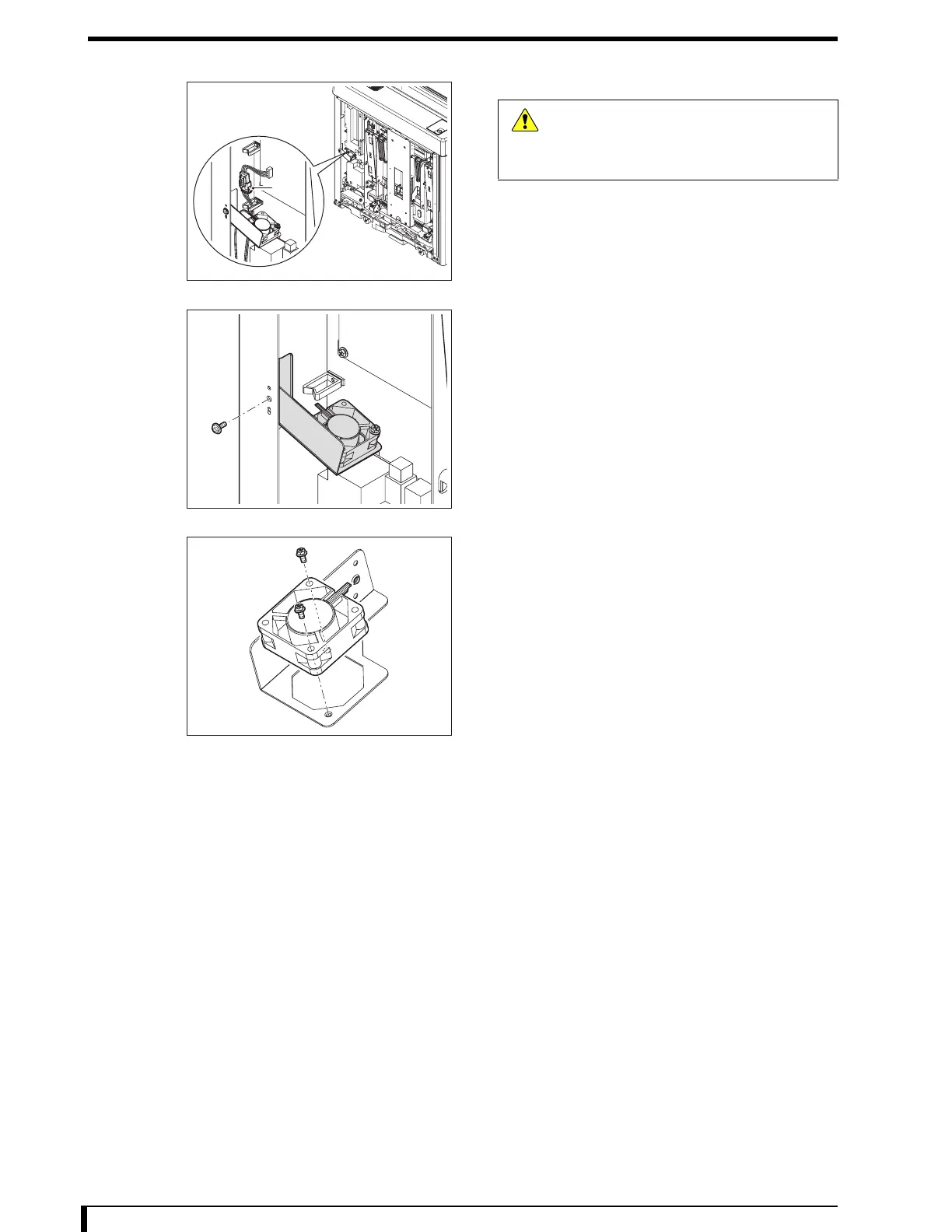

3 Remove the connector (JJ62).
4 Remove the fan unit assembly.
•
1 screw (M4 x 8)
5 Remove the cooling fan.
•
1 hex/Phillips-head screw (M3 x 20)
6 Install the new cooling fan.
•
1 hex/Phillips-head screw (M3 x 20)
7 See Step 4 to install the fan unit assembly.
•
1 screw (M4 x 8)
8 Connect the connector (JJ62) that was removed
in Step 3.
9 Install the circuit board cover that was removed in
Step 2.
•
3 screws (M3 x 6)
10 See "îš„ Installation Procedures (Page 5-8)" in "5.2.3 Removing/Installing the Exterior Panel
and Insertion Unit" to install the first front back panel.
Now, you have finished with the procedures to replace the cooling fan.
JJ62
First Front Back Side
Caution
When removing the connector, hold a notch
on the connector without pulling a cable.
Giving a strong pull to the cable may cause
it to be broken.
