8-8
Repair manual KTM LC8 Art.-No. 3.206.035-E
1
2
3
4
5
6
7
8

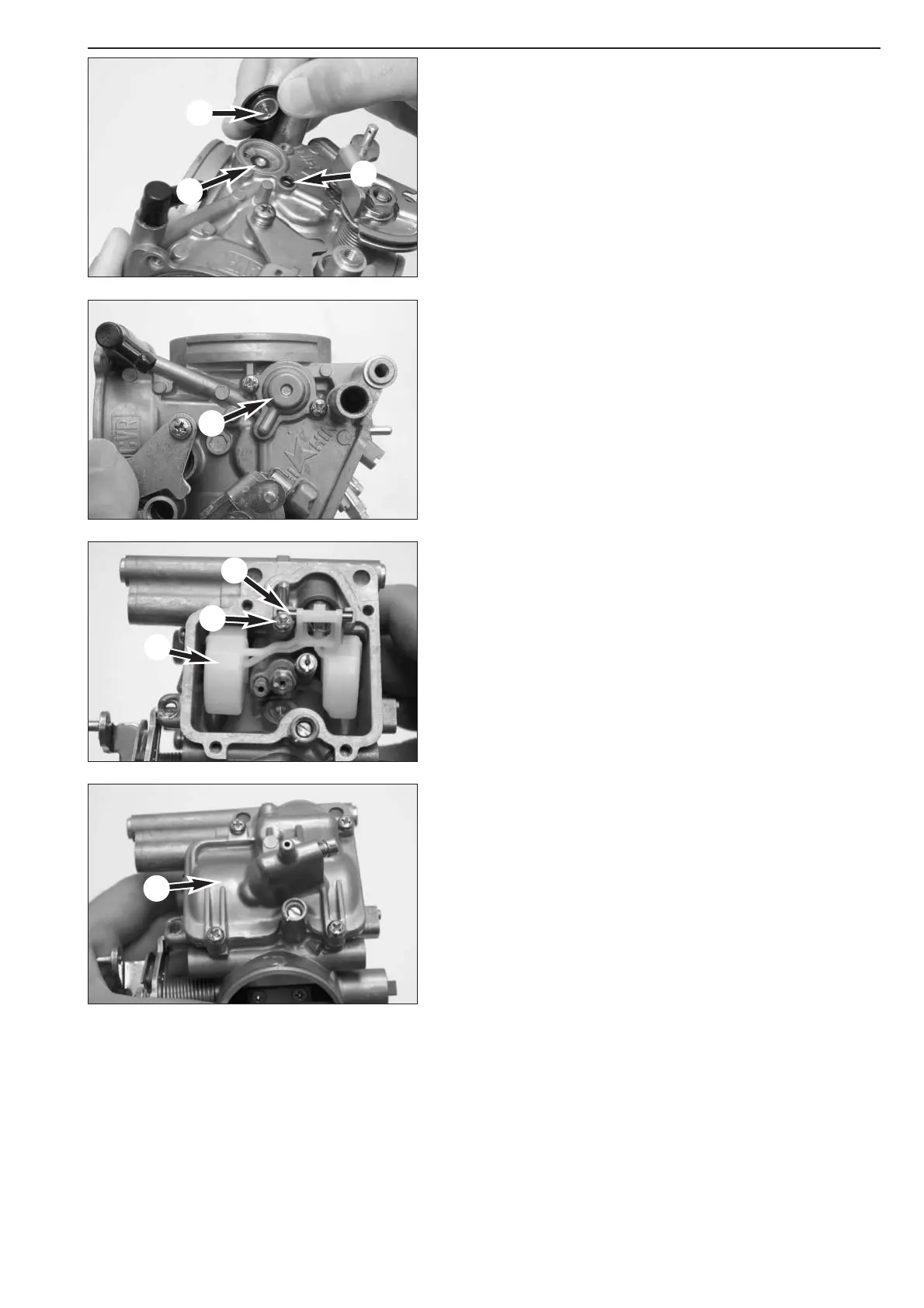

– Place the O-ring 1 in the recess around the air jet.
– Mount the ACV diaphragm so that the pin
2 presses on the ACV
valve plate
3.
– Place the spring on the diaphragm and mount the ACV cover
4.
– Position the float
5 together with the needle valve and float hinge
pin
6 in the carburetor housing.
– Tighten the fixing screw
7 on the float hinge pin.
See pages 8-10 to adjust the float level.
– Mount the float chamber
8 with a new gasket. Tighten the screws.
