8-7
1
2
3
4
5
6
7
8
9

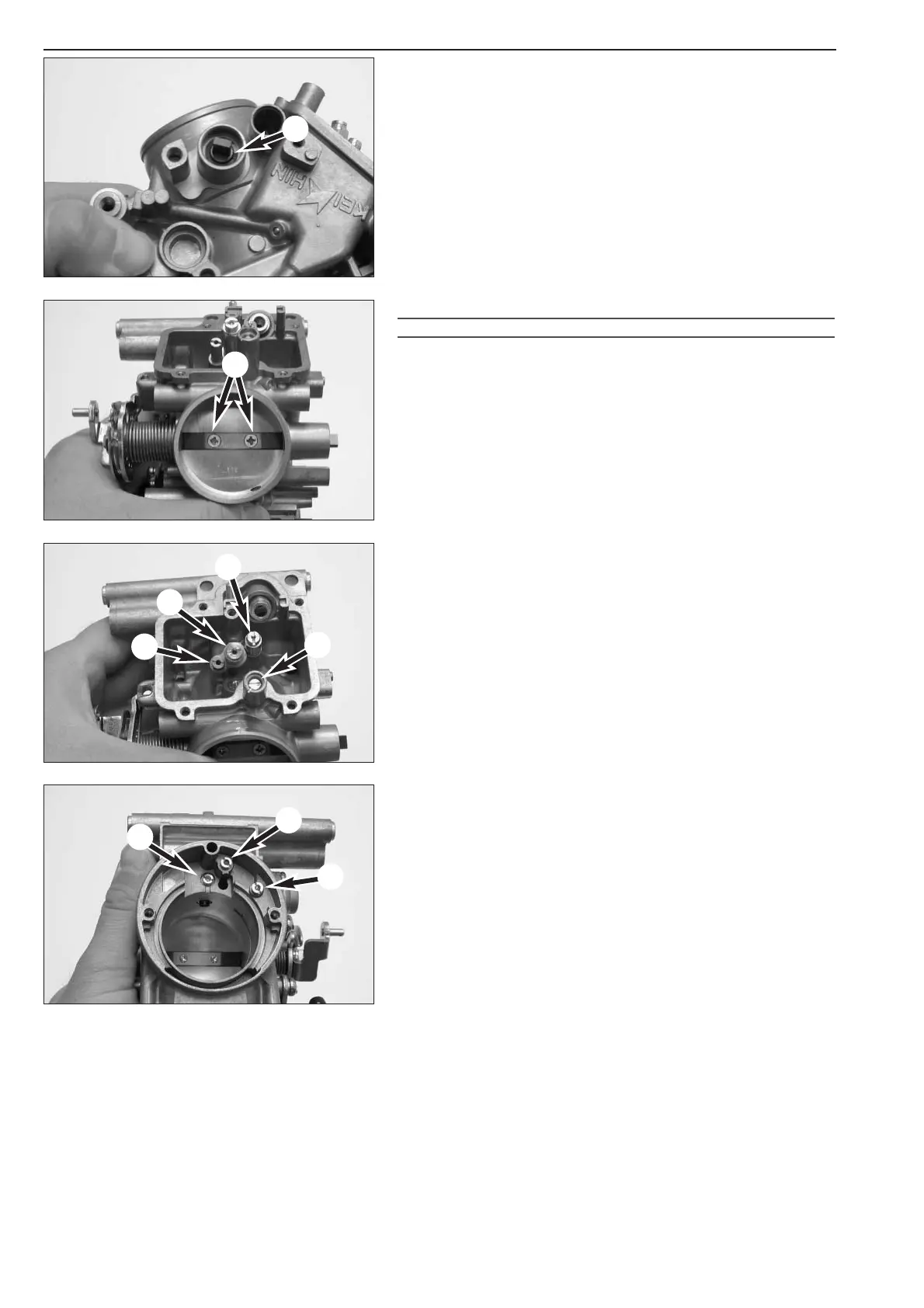

Assembling the carburetor
– Push the throttle shaft into the carburetor housing, fit the spring
and mount the lock ring
1.
– Mount the throttle valve
2, tighten and caulk the screws.
!
CAUTION
!
H
OLD A SUITABLE MANDREL AGAINST THE THROTTLE SHAFT TO KEEP IT FROM
BENDING
.
– Screw on the idle-air jet
3, main jet 4 with main jet holder and
starter jet
5.
– Screw the idle-air mixture control screw
6 with the O-ring, shim
and spring in to the limit, unscrew the number of turns previously
noted.
See pages 8-10 to adjust the mixture control screw.
– Mount the main air jet 7, ACV jet 8 and idle-air jet 9 with a
suitable screwdriver.
