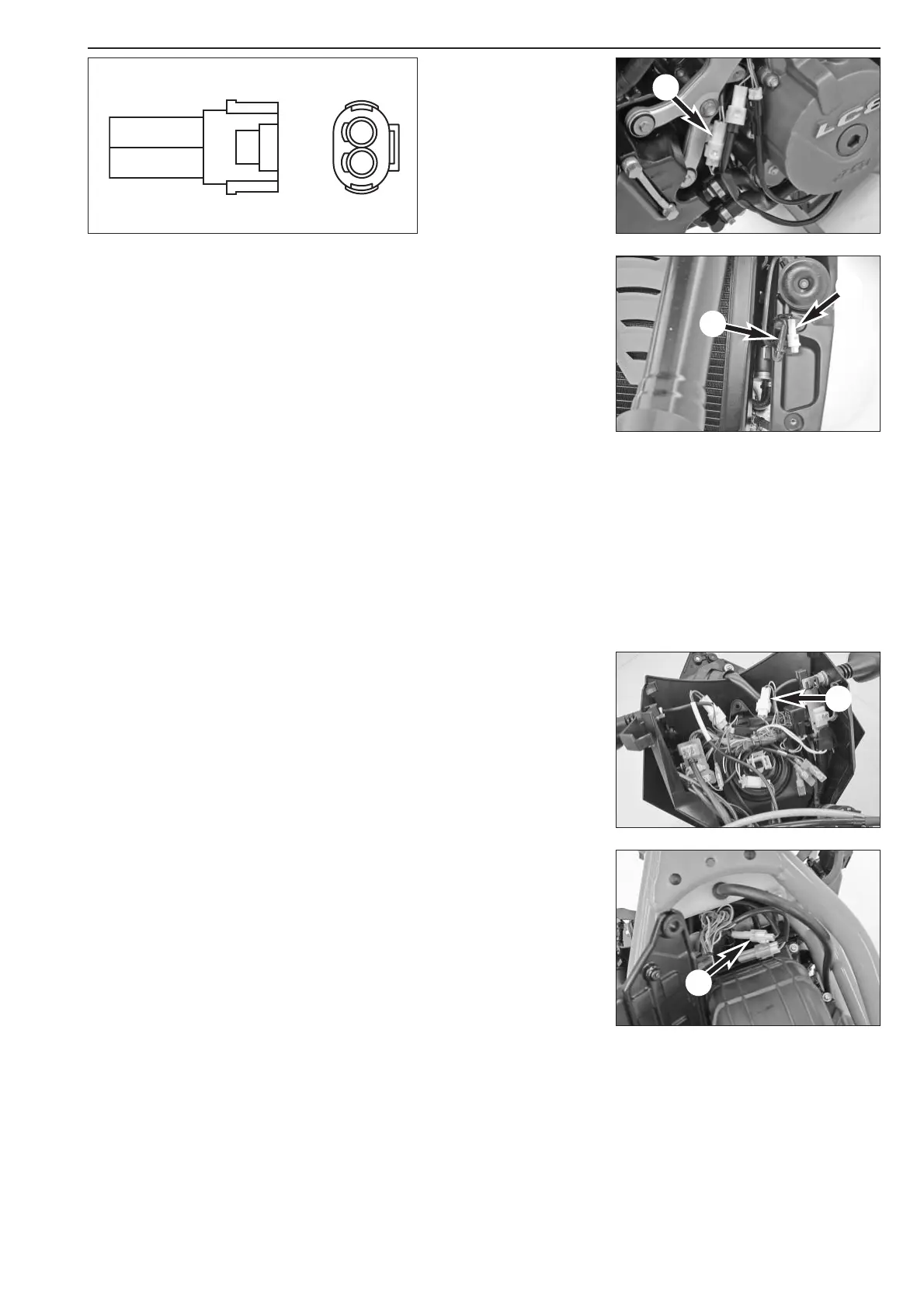

Repair manual KTM LC8 Art.-No. 3.206.035-E
2
1
Connector AL
2-pole
1
Pulse generator
On the left between the
oil tank and the
generator cover
Connector AL1
2-pole
2
Fuel sender
On the front left next to
the radiator
Connector AL2
2-pole
3
Fuel pump
On the front left next to
the radiator
Connector AL3
2-pole
4
Clutch switch
Behind the headlight
Connector AL4
2-pole
5
Carburetor heater
Between the steering
head and the ECU
1
2
3
4
5
