13-136

Repair manual KTM LC8 Art.-No. 3.206.035-E

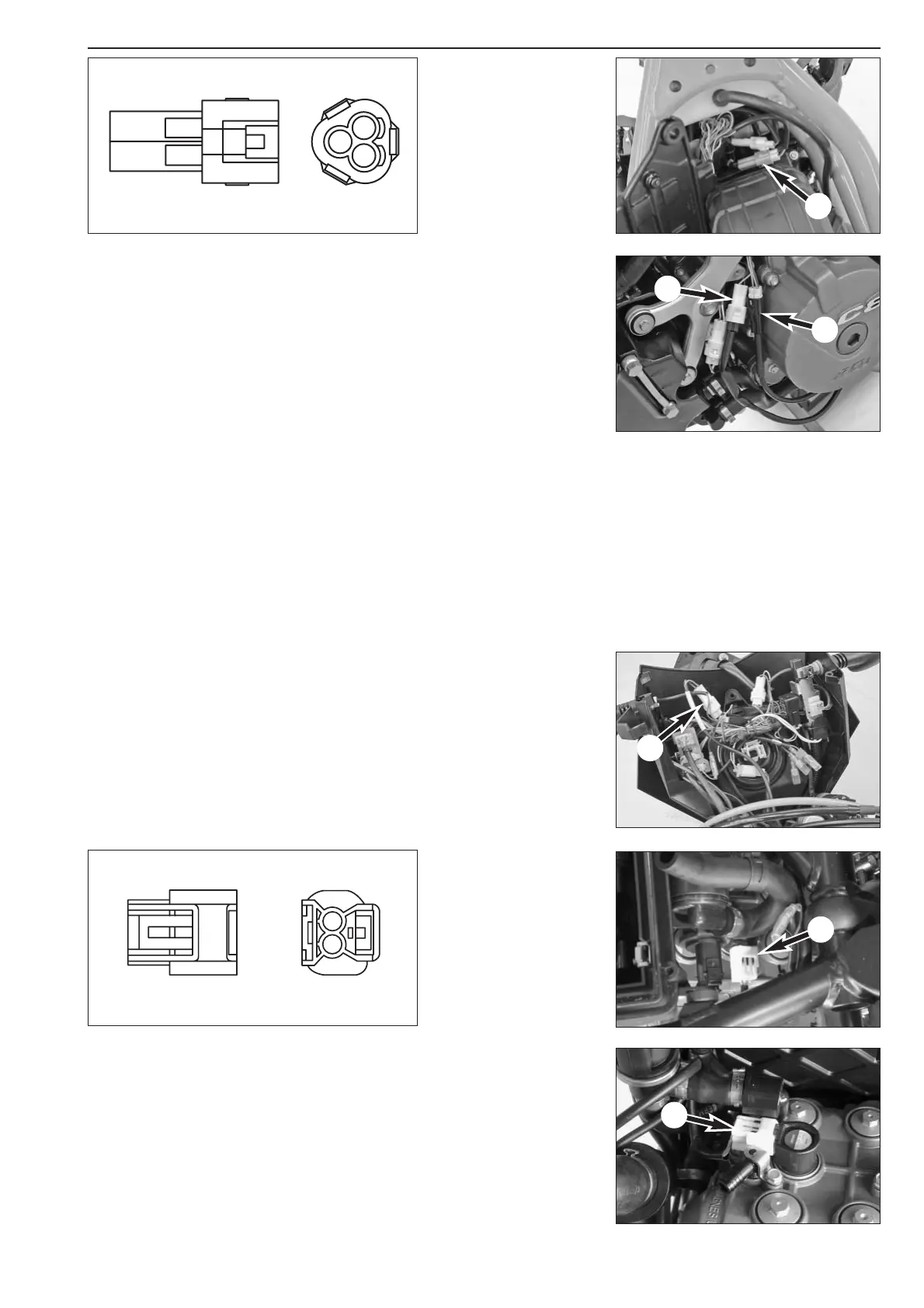

Connector AR

3-pole

Throttle sensor

Between the steering

head and the ECU

Connector AR1

3-pole

Gear sensor

On the left between the

oil tank and the

generator cover

Connector AR2

3-pole

Side stand switch

On the left between the

oil tank and the

generator cover

Connector AR3

3-pole

Speed sensor

Behind the headlight

Connector AS1

2-pole

Front ignition coil

Behind the radiator

Connector AS

2-pole

Rear ignition coil

Behind the air filter box
