Repair manual KTM LC8 Art.-No. 3.206.035-E

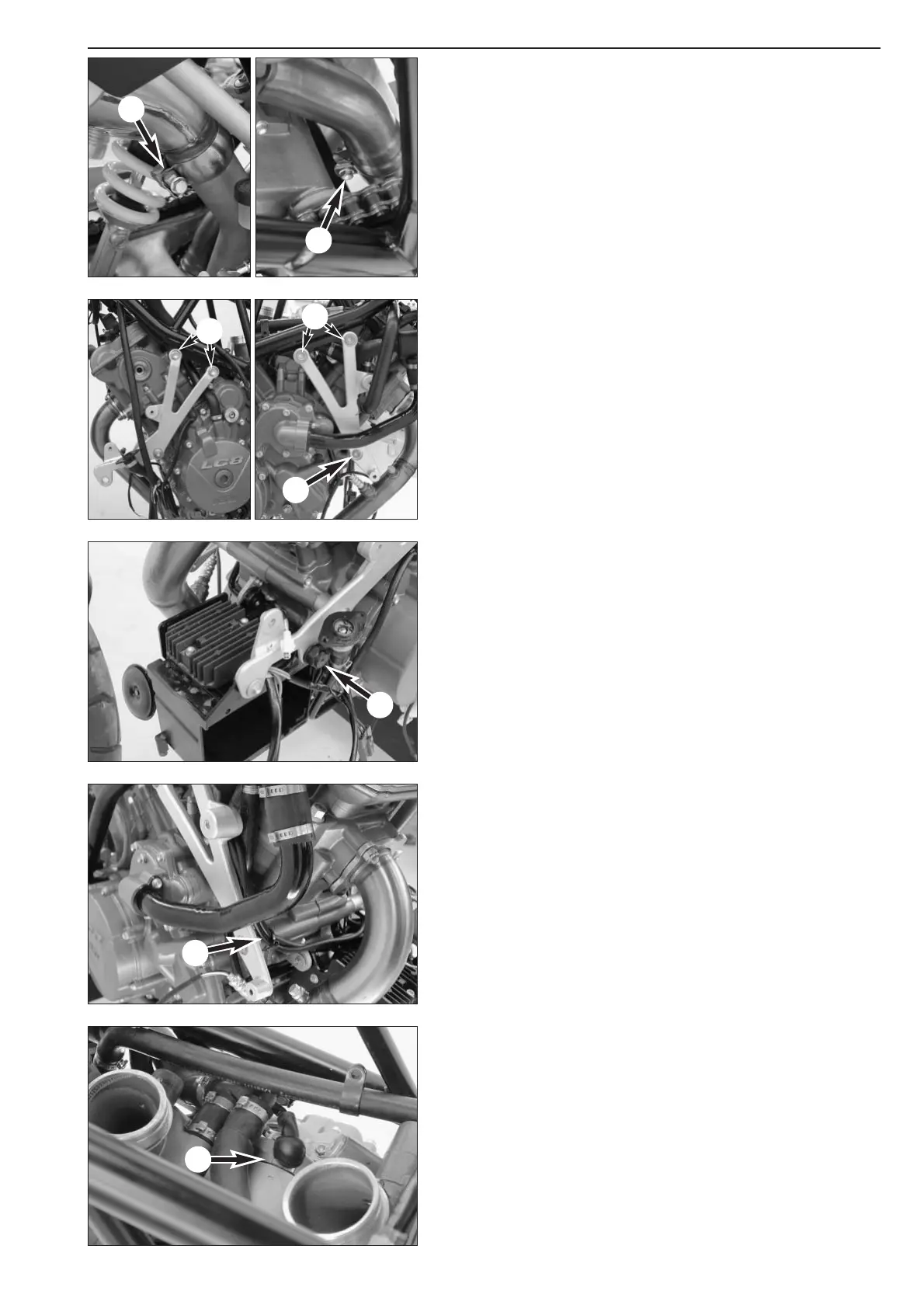

– Mount the exhaust pipe clamp 1 between the manifold and the
main silencer and slightly tighten.
– Slightly tighten the exhaust pipe clamp
2 on the rear manifold.
NOTE:
– Do not tighten the screw connections until the exhaust system is
completely installed and mounted stress-free.
– Tighten the exhaust nuts evenly without bending the sheet.
– Tightening torque for clamp
1: 35 Nm and clamp 2: 12 Nm.
– Position the side stays on the engine, insert the bolt
3 and mount
the nut.
– Turn in the screws
4 (M10x24), lifting the engine if necessary.
Tighten the nut and screws to 45 Nm.
– Tighten the nut on the swing arm bolt to 130 Nm.
– Mount the battery case with the controller and horn, using the black
screw
5 in the position shown.
– Run the positive starter cable
6 to the starter engine 7 and screw
on, screw on the starter ground and run to the battery case.
1
2
4
3
4
5
6
7
