KTM 690 User Manual

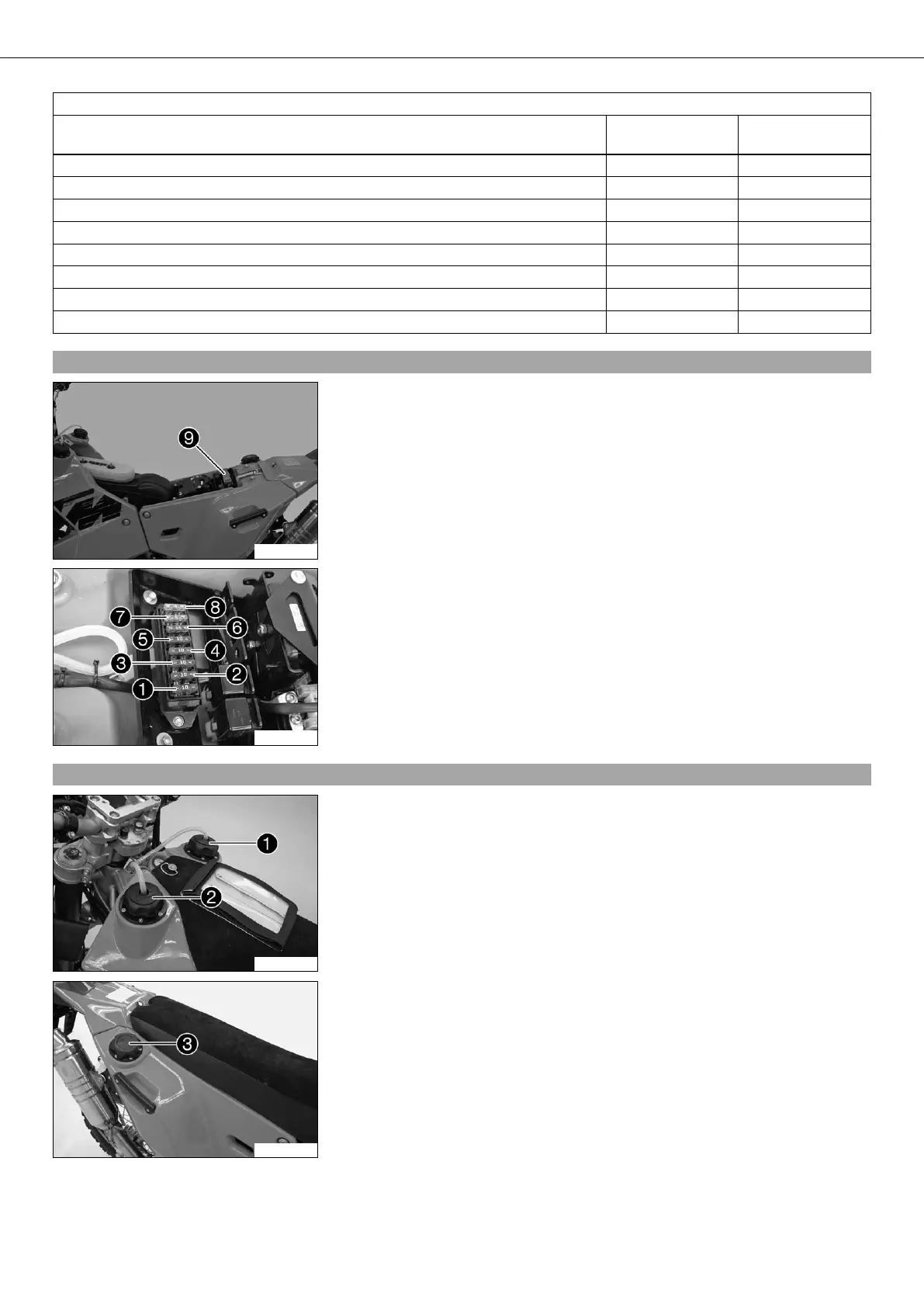

OPERATING ELEMENTS 17
Overview of conditions and ability to be enabled
Display The motorcycle is
standing
Menu can be
enabled
Display mode SPEED/LAP (lap time) •
Display mode SPEED/ODO (odometer)
Display mode SPEED/TR1 (trip master 1) •
Display mode SPEED/TR2 (trip master 2) •
Disply mode SPEED/A1 (average speed 1) •
Display mode SPEED/A2 (average speed 2) •
Display mode SPEED/S1 (stop watch 1) •
Display mode SPEED/S2 (stop watch 2) •
4.28Fuses
600029-10
The fuse box  is located under the seat.
600028-10
Fuse  - Electric starter system
Fuse  - Radiator fan
Fuse  - Lighting Sentinel (optional)
Fuse  - Roadbook
Fuse  - not assigned
Fuse  - Lighting
Fuse  - GPS (optional)
Fuse  - Iritrac (optional)
4.29Fuel tank
600045-10
The right fuel tank is filled via filler cap  and the left fuel tank is filled via filler
cap .
600046-10
The rear fuel tank is filled via filler cap .
This model has three separate fuel tanks controlled by a fuel tap. Two fuel tanks are
located in front of the seat and one fuel tank is located beneath the seat.

KTM 690 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Transmission	6-speed
Starter	Electric
Fuel System	Electronic fuel injection
Cooling	Liquid-cooled
Rear Suspension	WP monoshock
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Brembo single-piston caliper, 240 mm disc
Fuel Tank Capacity	13.5 liters
Frame	Chromium-Molybdenum steel trellis
Rear Wheel	17"
