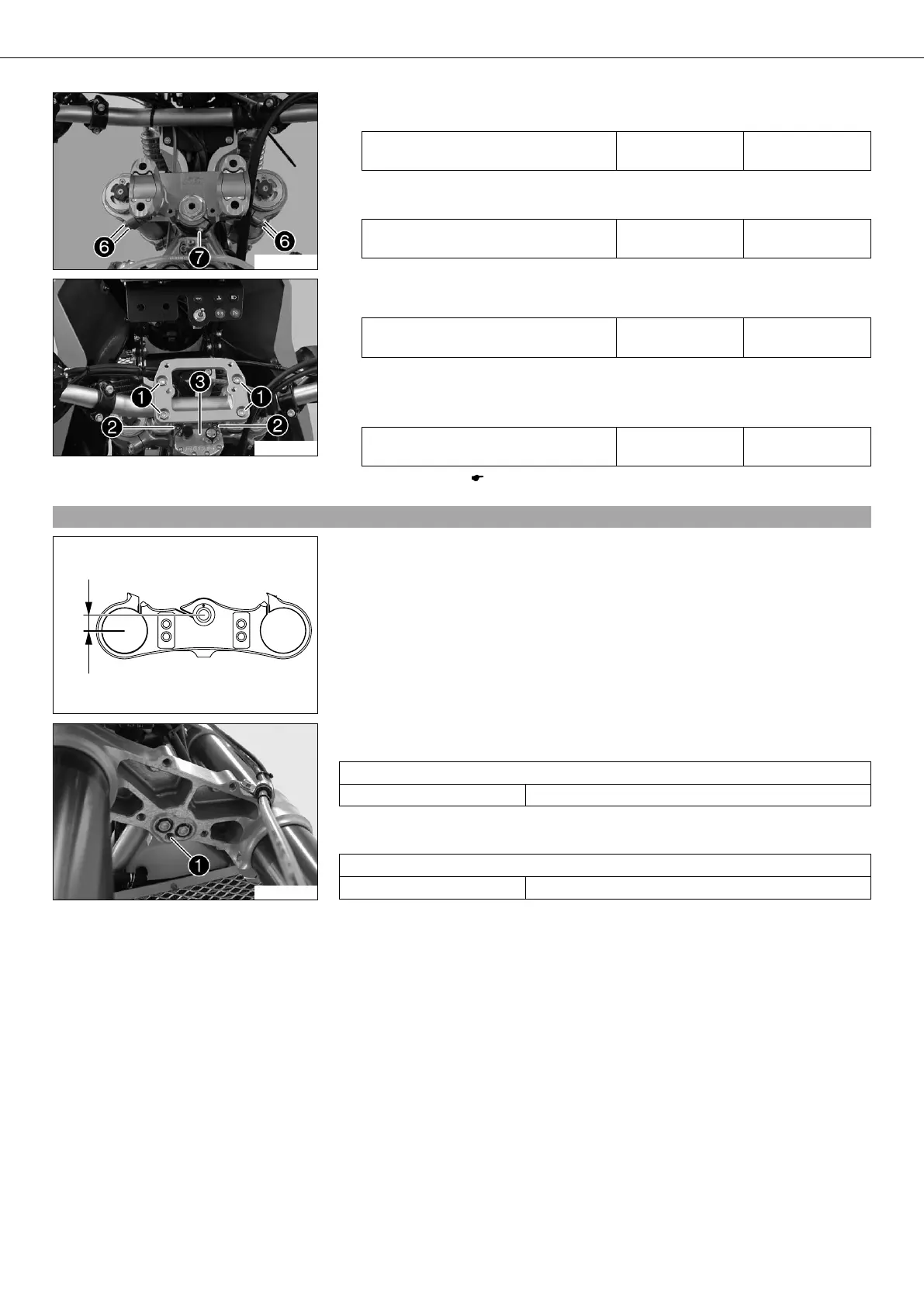

MAINTENANCE WORK ON CHASSIS AND ENGINE 37
600100-12
– Tighten screw .
Specification
Screw, top steering stem M8 20 Nm
(14.75 lbf ft)
– Fully tighten screw .
Specification
Screw, top triple clamp M8 17 Nm
(12.54 lbf ft)
600099-11
– Position the steering damper . Mount and tighten screws .
Specification
Remaining screws, chassis M6 10 Nm
(7.38 lbf ft)
– Open the cable binders and position the handlebar.
– Position the holding plate with handlebar clamps. Mount and tighten screws .
Specification
Screw, handlebar clamp M8 16 Nm
(11.8 lbf ft)
– Mount the trim. ( P. 54)
8.23Fork offset
400356-10
The fork offset  has an impact on the handling of the vehicle. It is calculated from
the center of the fork leg to the center of the steering head bearing.
The fork offset can optionally be adjusted.
600111-10
When the mark 1 is visible in the bore  (as delivered), you will achieve better han-
dling in bends.
Fork offset
Mark 1 visible 20 mm (0.79 in)
If the mark 1 is not visible in the bore , you will achieve better riding stability on fast
stretches.
Fork offset
No mark 22 mm (0.87 in)
