KTM 690 User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 48

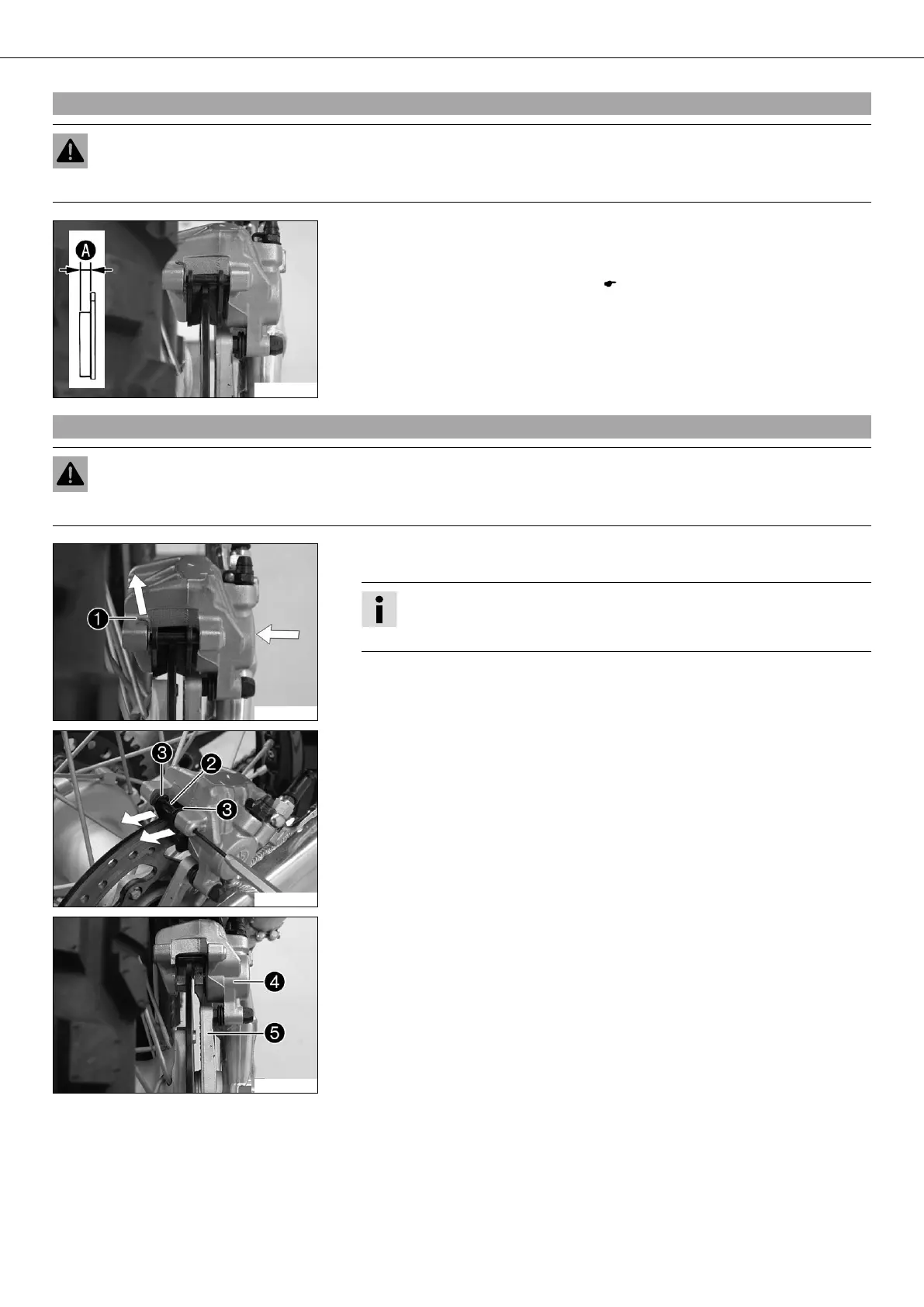

8.48Checking rear brake linings
Warning
Danger of accidents Reduced braking due to worn brake linings.
– Worn brake linings should be replaced immediately in an authorized KTM workshop.
600064-10
– Check the brake linings for minimum thickness .
» ≥ 1 mm (≥ 0.04 in)
If the minimum thickness is less than specified:
– Change the rear brake linings. ( P. 49)
8.49Removing rear brake linings x
Warning
Danger of accidents Improper brake maintenance and repair.
– Always have your brake system maintained and repaired in an authorized KTM workshop.
600042-10
– Press the brake caliper by hand on to the brake disc in order to press back the
brake piston.
Info
Make sure when pushing back the brake piston that you do not press the
brake caliper against the spokes.
– Remove the lock pin .
600043-10
– Remove the bolt  with a suitable tool and disassemble the brake linings .
600066-10
– Clean brake caliper  and brake caliper support .

KTM 690 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Transmission	6-speed
Starter	Electric
Fuel System	Electronic fuel injection
Cooling	Liquid-cooled
Rear Suspension	WP monoshock
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Brembo single-piston caliper, 240 mm disc
Fuel Tank Capacity	13.5 liters
Frame	Chromium-Molybdenum steel trellis
Rear Wheel	17"
