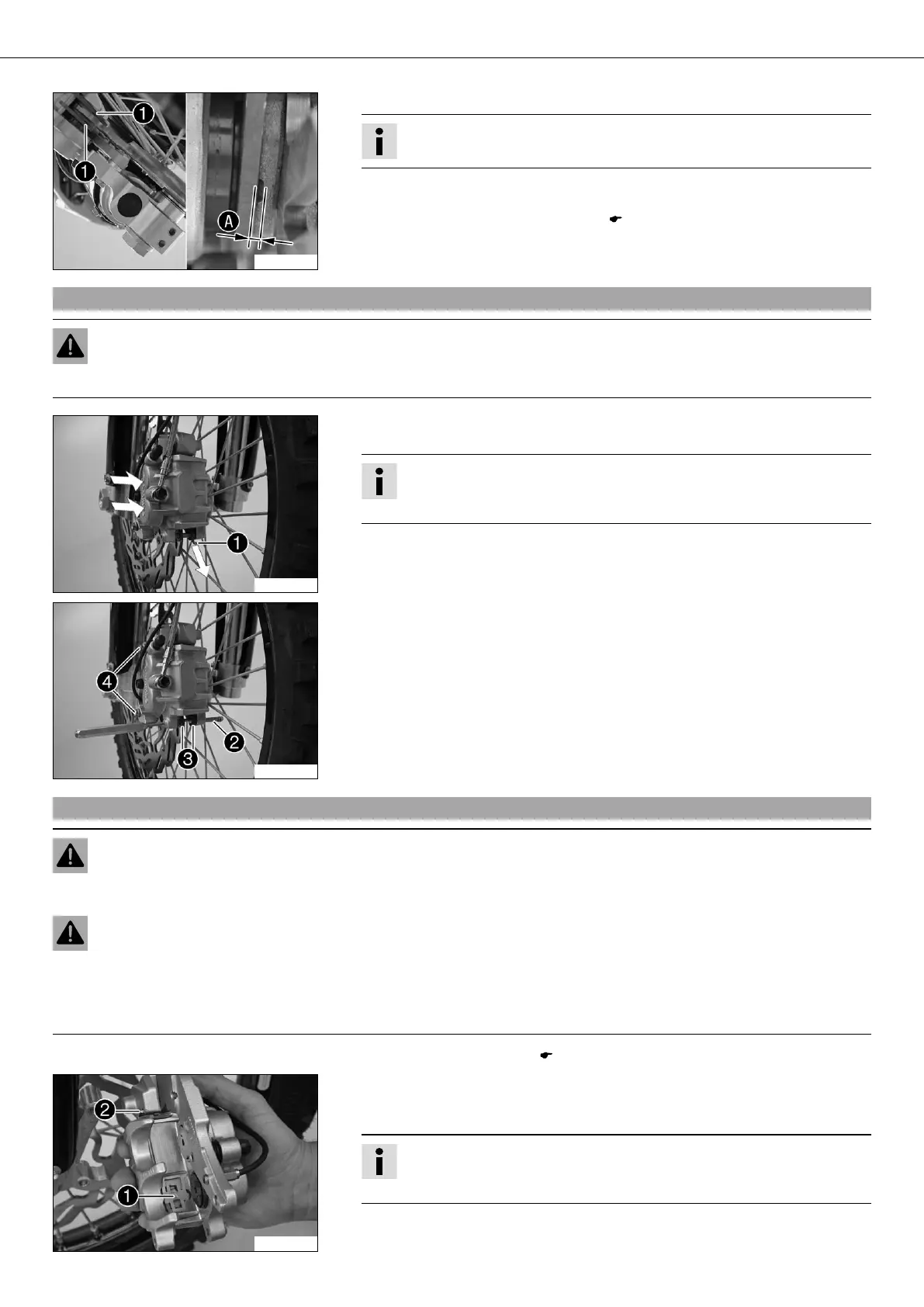

MAINTENANCE WORK ON CHASSIS AND ENGINE 44
600062-10
– Check the brake linings for minimum thickness .
Info
The brake lining wear marks must be clearly visible.
» ≥ 1 mm (≥ 0.04 in)
If the minimum thickness is less than specified:
– Change the front brake linings. ( P. 45)
8.40Removing front brake linings x
Warning
Danger of accidents Improper brake maintenance and repair.
– Always have your brake system maintained and repaired in an authorized KTM workshop.
600039-10
– Press the brake caliper by hand on to the brake disc in order to press back the
brake pistons.
Info
Make sure when pushing back the brake pistons that you do not press the
brake caliper against the spokes.
– Remove the lock pin .
600040-10
– Remove the bolt with a suitable tool and disassemble the brake linings .
– Remove screws and take off brake caliper.
– Clean brake caliper and brake caliper support.
8.41Mounting front brake linings x
Warning
Danger of accidents Reduced braking due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danger of accidents Reduced braking due to use of non-approved brake linings.
– Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle no longer corresponds to the condition at delivery, and the warranty is no longer valid.
– Check the front brake disc. ( P. 41)
600041-10
– Check parts for damage and wear. Replace damaged or worn parts.
– Check that the leaf spring in the brake caliper and sliding plate in the brake
caliper support are seated correctly.
Info
The arrow on the leaf spring points in the rotation direction of the brake
disc.
