KTM 690 User Manual

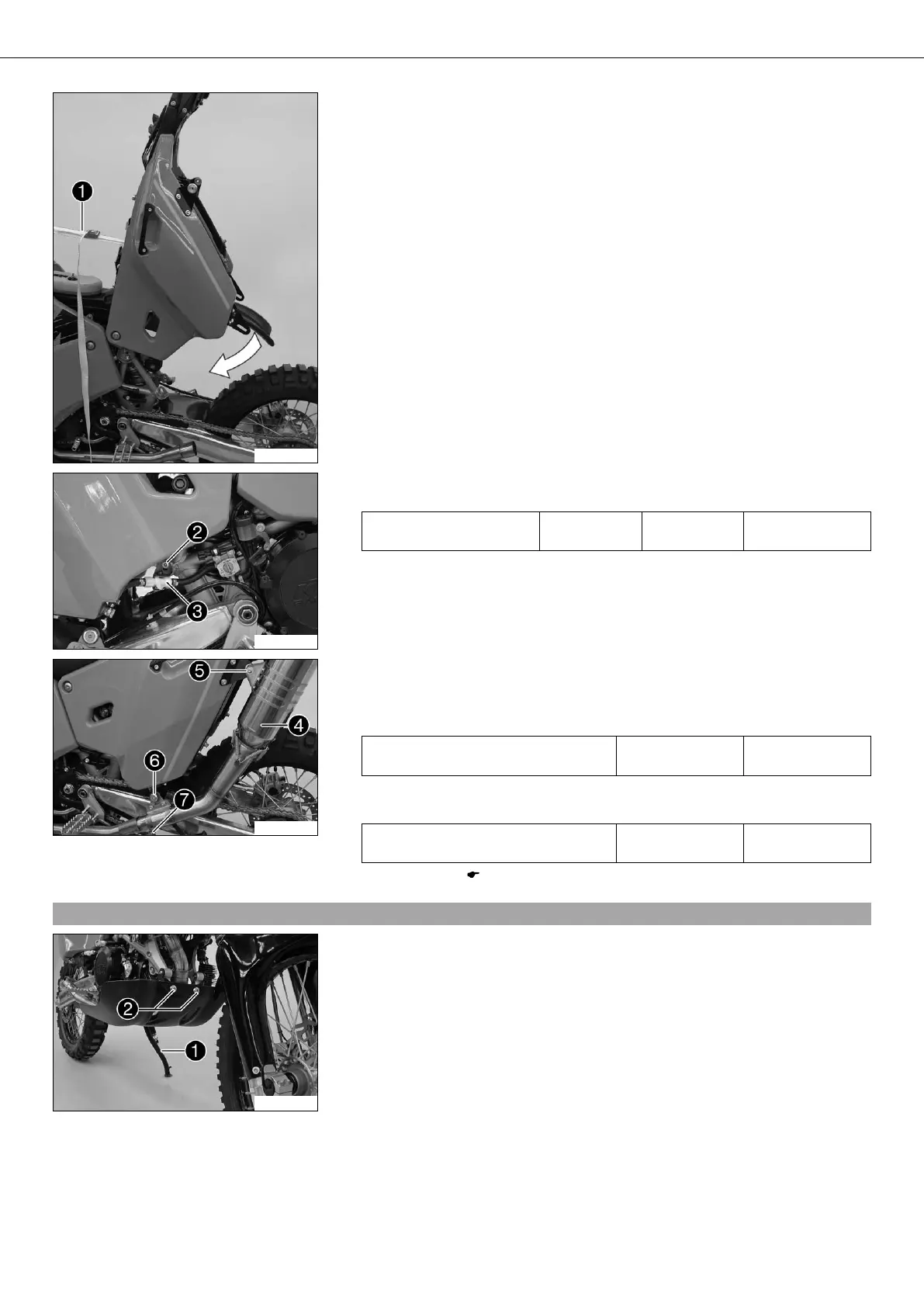

MAINTENANCE WORK ON CHASSIS AND ENGINE 58
600091-10
– Detach the belt  and carefully position the rear tank.
600092-11
– Mount and tighten screw .
Specification
Screw, rear tank fixing
bracket
M8 20 Nm
(14.75 lbf ft)
Loctite
®
243™
– Clean and connect the quick releases of the fuel line  with each other.
600090-11
– Connect the main silencers  with the manifolds on both sides. Mount the
screw  on both sides but do not tighten it yet.
– Align the main silencer. Mount and tighten screws  and  on both sides.
Specification
Remaining screws, chassis M8 25 Nm
(18.44 lbf ft)
– Tighten screw  on both sides.
Specification
Remaining screws, chassis M6 10 Nm
(7.38 lbf ft)
– Mount the seat ( P. 55)
8.67Removing the motor guard
600073-10
– Park the motorcycle on its side stand  on a horizontal surface.
– Remove screws .

KTM 690 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Transmission	6-speed
Starter	Electric
Fuel System	Electronic fuel injection
Cooling	Liquid-cooled
Rear Suspension	WP monoshock
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Brembo single-piston caliper, 240 mm disc
Fuel Tank Capacity	13.5 liters
Frame	Chromium-Molybdenum steel trellis
Rear Wheel	17"
