MAINTENANCE WORK ON CHASSIS AND ENGINE 49

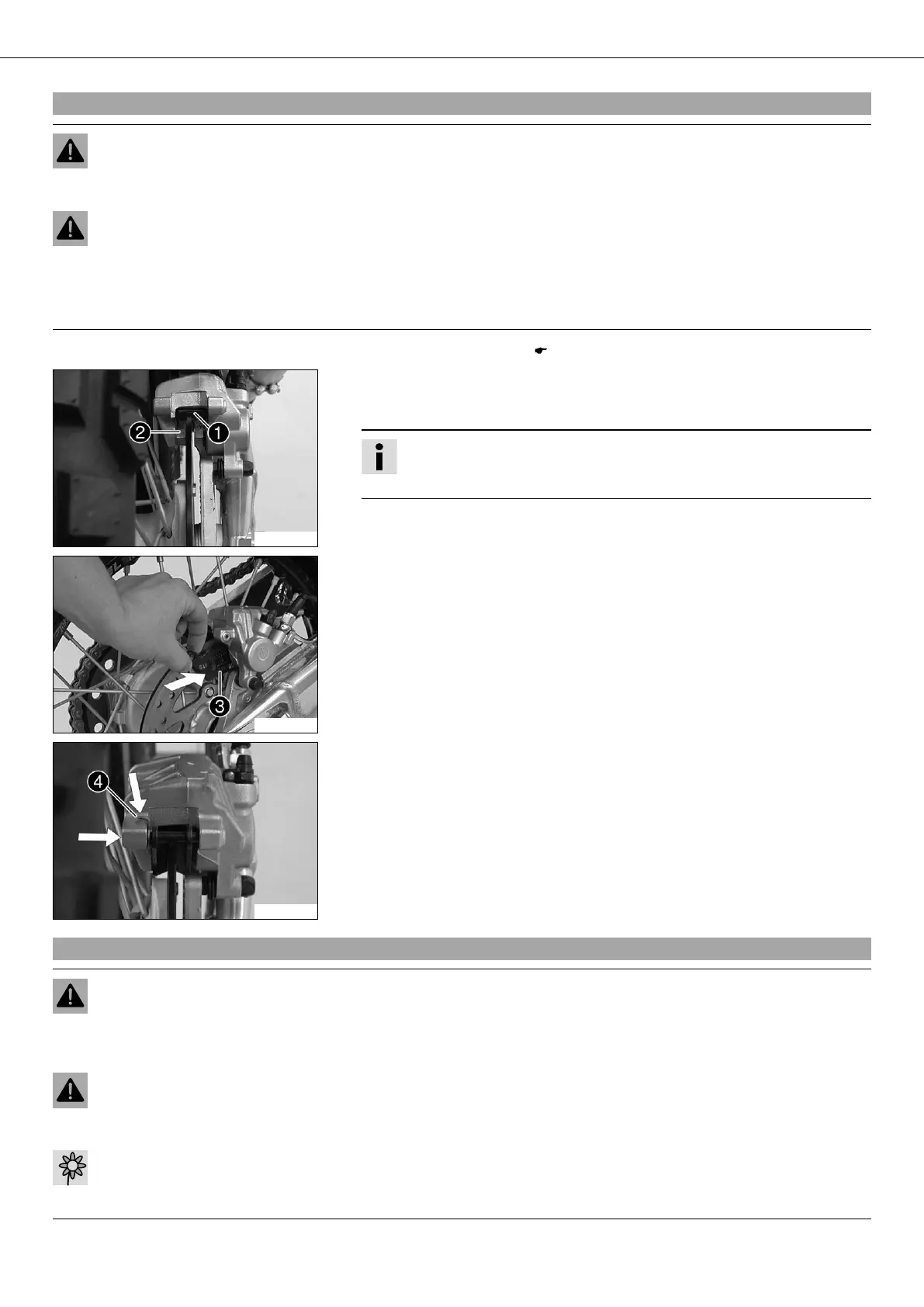

8.50Mounting rear brake linings x
Warning
Danger of accidents Reduced braking due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danger of accidents Reduced braking due to use of non-approved brake linings.
– Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle no longer corresponds to the condition at delivery, and the warranty is no longer valid.
– Check the rear brake disc. ( P. 46)
600066-11
– Check parts for damage and wear. Replace damaged or worn parts.
– Check that the leaf spring in the brake caliper and sliding plate in the brake
caliper support are seated correctly.
Info
The arrow on the leaf spring points in the rotation direction of the brake
disc.
600065-11
– Insert brake linings .
600042-11
– Mount the bolt with a suitable tool and insert the lock pin .
– Operate the foot brake lever repeatedly until the brake linings lie on the brake disc
and there is a tight spot.
8.51Changing rear brake linings x
Warning
Skin irritations Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– If brake fluid gets into your eyes, rinse thoroughly with water and contact a doctor immediately.
Warning
Danger of accidents Reduced braking due to old brake fluid.
– Have the front and rear brake fluid replaced according to the service plan in an authorized KTM workshop.
Warning
Environmental hazard Problem materials cause environmental damage.
– Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
