KTM 690 User Manual

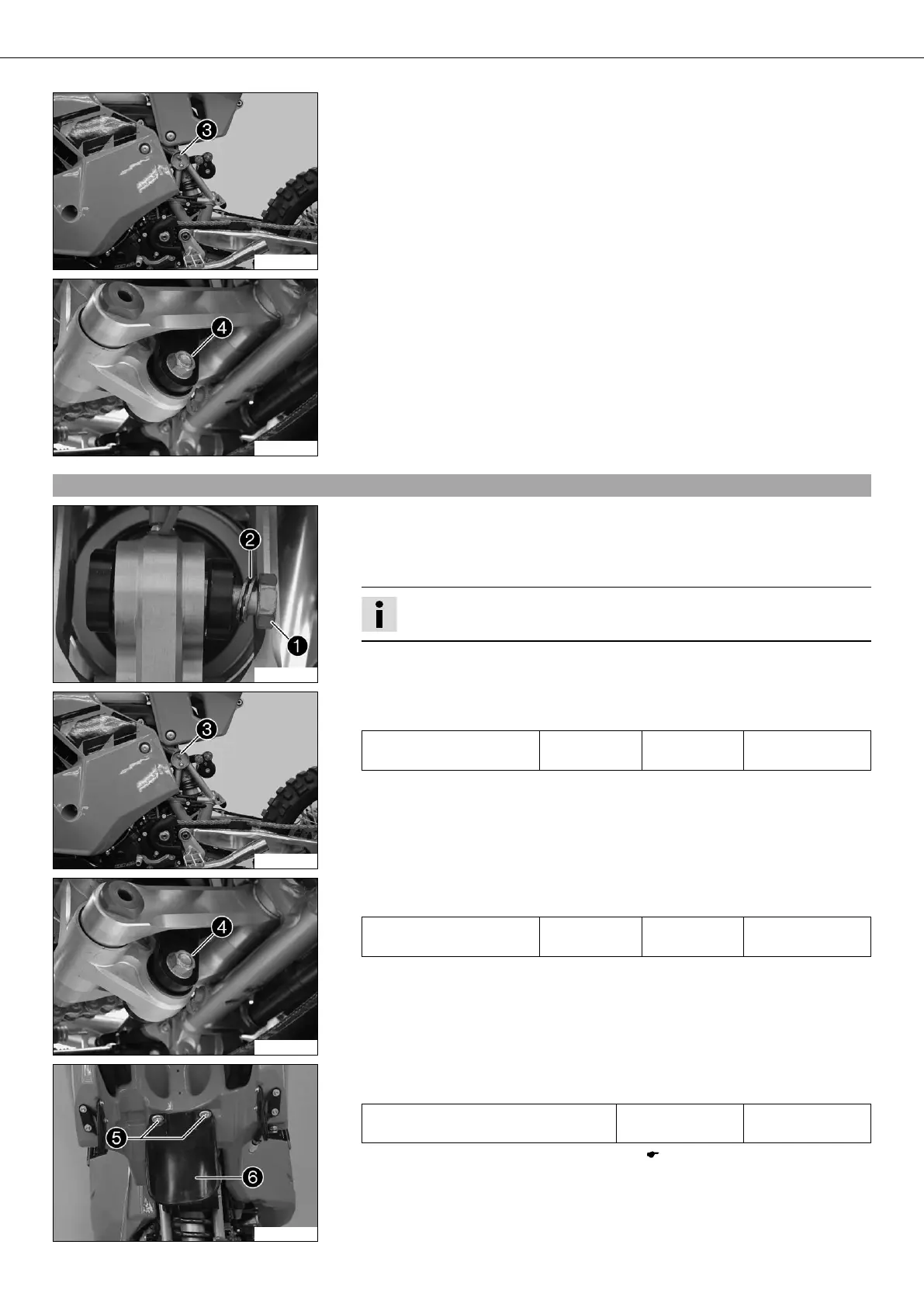

MAINTENANCE WORK ON CHASSIS AND ENGINE 33
600094-10
– Remove screw .
600095-10
– Remove screw .
– Remove shock absorber.
8.13Installing shock absorber
600096-10
– Check parts for damage and wear. Replace damaged or worn parts.
– Position the shock absorber.
– Mount the screw  with the washers at the bottom of the shock absorber but do
not tighten it yet.
Info
Ensure that the washers  are properly positioned.
600094-10
– Mount and tighten screw .
Specification
Screw, top shock absorber M10 45 Nm
(33.19 lbf ft)
Loctite
®
243™
600095-10
– Tighten screw .
Specification
Screw, bottom shock
absorber
M10 45 Nm
(33.19 lbf ft)
Loctite
®
243™
600097-11
– Position the splash protector . Mount and tighten screws .
Specification
Remaining screws, chassis M6 10 Nm
(7.38 lbf ft)
– Remove the motorcycle from the work stand. ( P. 29)

KTM 690 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Transmission	6-speed
Starter	Electric
Fuel System	Electronic fuel injection
Cooling	Liquid-cooled
Rear Suspension	WP monoshock
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Brembo single-piston caliper, 240 mm disc
Fuel Tank Capacity	13.5 liters
Frame	Chromium-Molybdenum steel trellis
Rear Wheel	17"
