KTM 690 User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 52

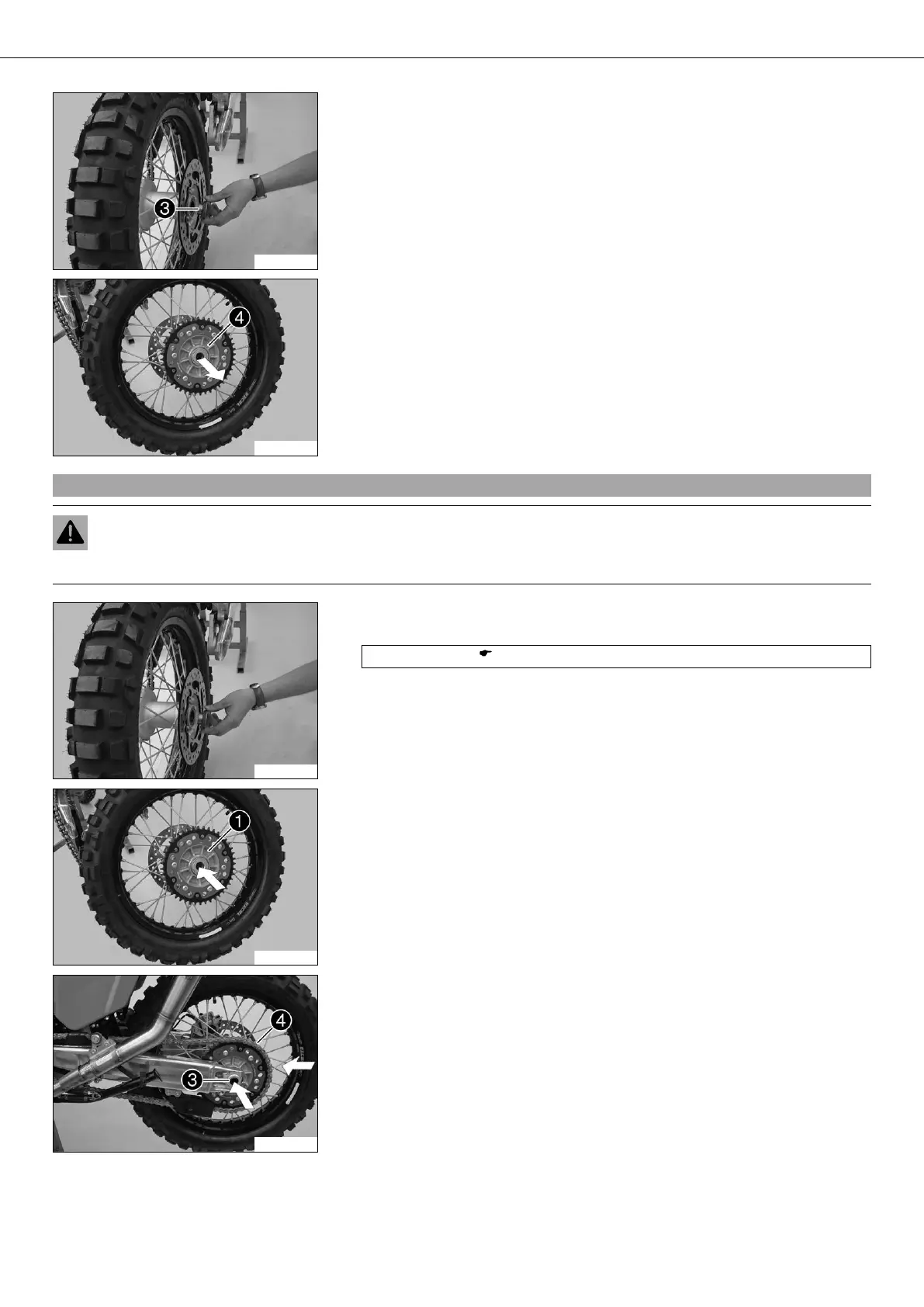

600037-10
– Remove the distance bushing .
600038-10
– Remove the rear sprocket carrier .
8.55Fitting rear wheel x
Warning
Danger of accidents Reduced braking due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
600037-11
– Check parts for damage and wear. Replace damaged or worn parts.
– Clean and grease shaft seal rings and bearing surface of the distance bushings.
Long-life grease ( P. 98)
– Fit the distance bushings.
600038-11
– Insert the rear sprocket carrier  into the rear hub.
600036-11
– Lift the rear wheel into the swing arm, position it, and insert the wheel spindle .
– Attach the chain .

KTM 690 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Transmission	6-speed
Starter	Electric
Fuel System	Electronic fuel injection
Cooling	Liquid-cooled
Rear Suspension	WP monoshock
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Brembo single-piston caliper, 240 mm disc
Fuel Tank Capacity	13.5 liters
Frame	Chromium-Molybdenum steel trellis
Rear Wheel	17"
