KTM 690 - Fuel Tap; Choke

OPERATING ELEMENTS 18

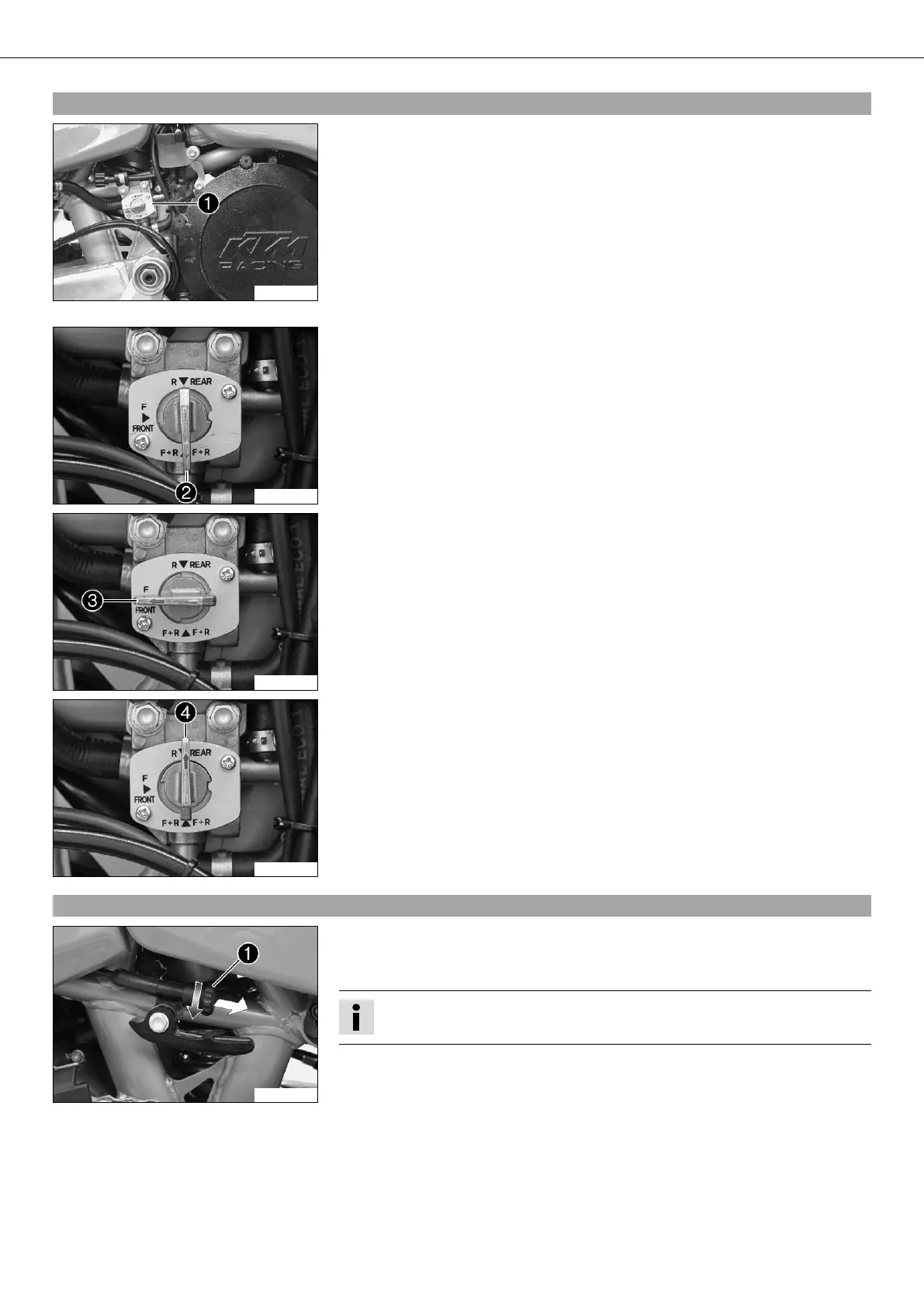

4.30Fuel tap
600008-10
The fuel tap  is located on the right over the fork pivot.
The fuel tap can be used to control the individual fuel tanks. The fuel tap does not
have an OFF position since the fuel pump does not let fuel pass when the engine is
stopped.
Possible states
600015-10
• F+R – If the tap handle of the fuel tap points down, fuel is taken from all three
fuel tanks. All fuel tanks empty out completely.
600017-10
• F FRONT – If the tap handle of the fuel tap points toward the rear, fuel is taken
from the two front fuel tanks. Only the front fuel tanks empty out completely.
600016-10
• R REAR – If the tap handle  of the fuel tap points up, fuel is taken from the rear
fuel tank. Only the rear fuel tank empties out completely.
4.31Choke
600072-10
The chock knob  is fitted on the left side of the frame.
Activating the choke function frees an opening through which the engine can draw
extra fuel. This gives a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated – The choke knob has been pulled out slightly and
turned.
• Choke function deactivated – The choke knob is engaged in the guide.
