MAINTENANCE WORK ON FRAME AND ENGINE 118

9.48Changing the main fuse

Warning

Fire hazard The electrical system can be overloaded by the use of incorrect fuses.

– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.

Info

The main fuse is located in the starter relay under the right underride guard.

– Switch off all power consumers and the engine.

– Remove the right underride guard. ( p. 117)

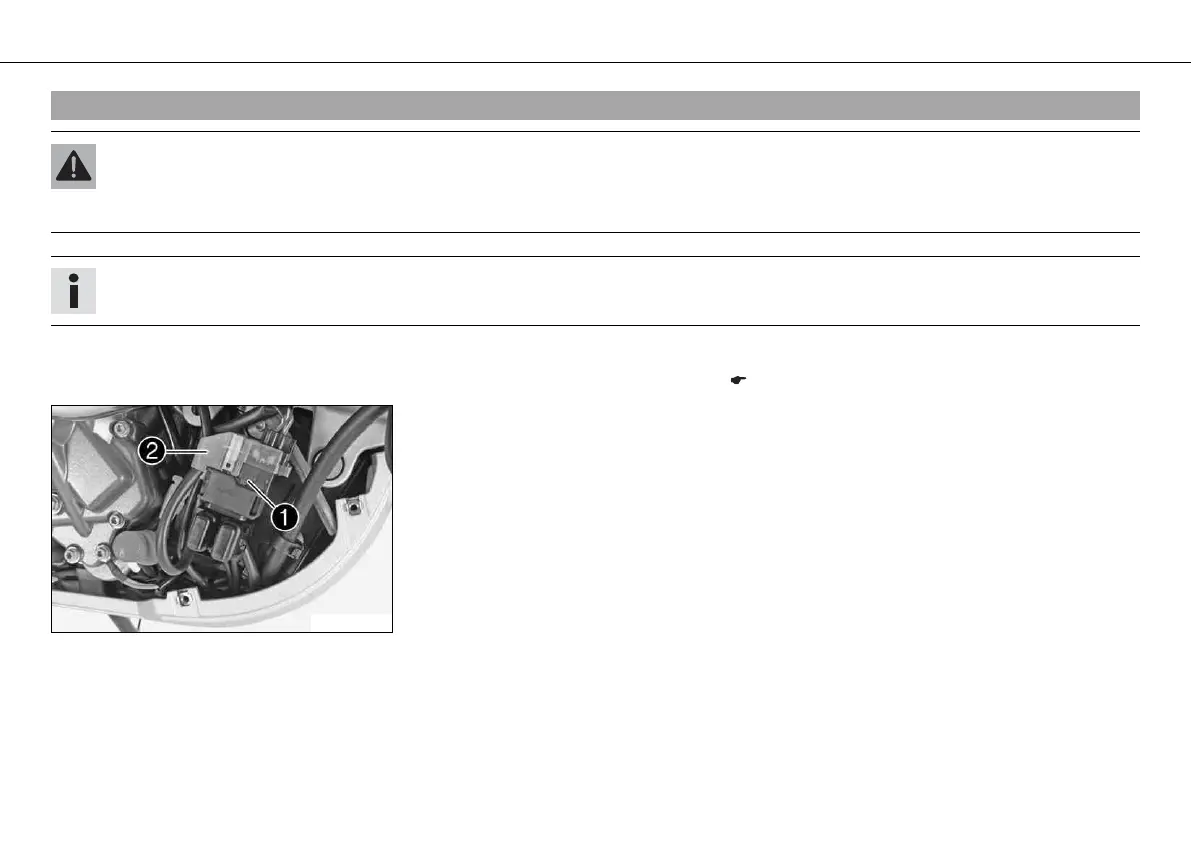

100583-10

– Pull starter relay  off of the holder and remove protective cover .
