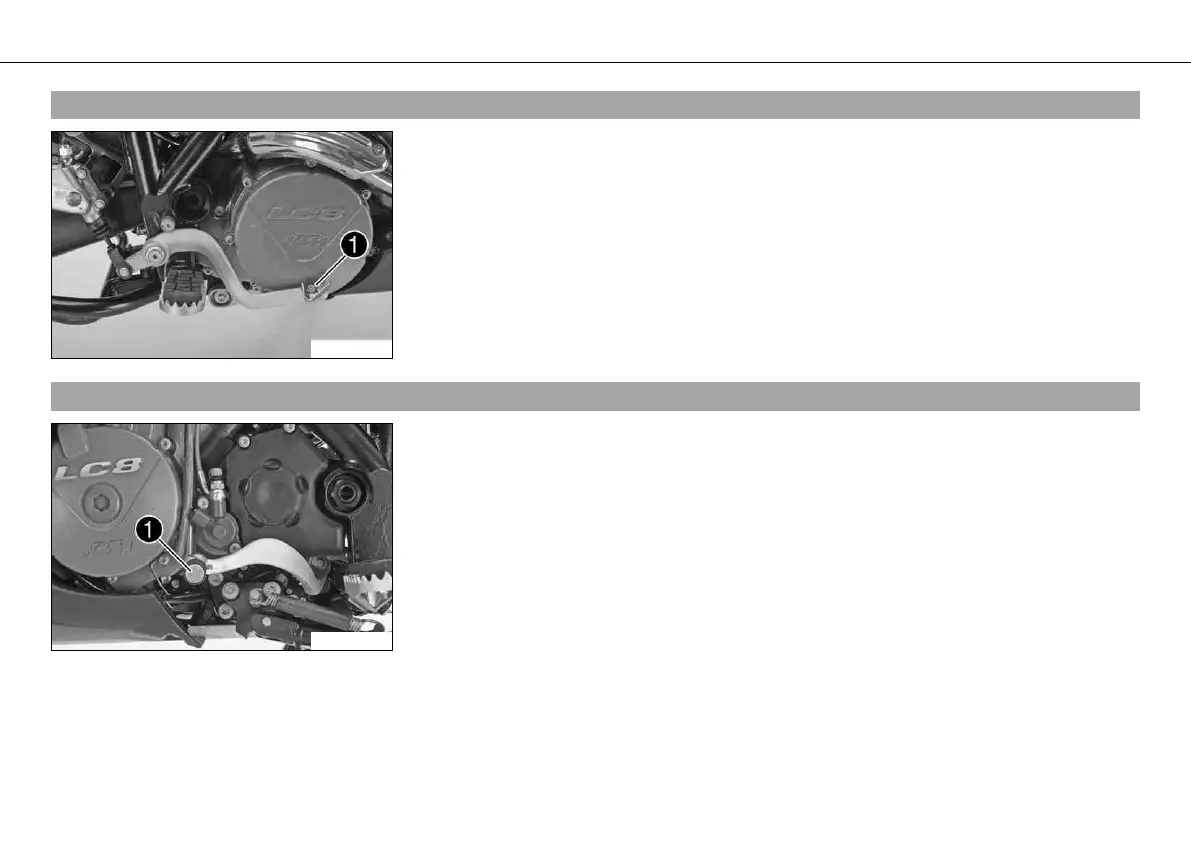

CONTROLS 40

5.40Foot brake lever

100525-10

Foot brake lever  is located in front of the right footrest.

The rear brake is activated using the foot brake lever.

5.41Shift lever

100526-10

Shift lever  is mounted on the left side of the engine.
