CONTROLS 28

Condition

The motorcycle is standing.

400893-10

– Switch on the ignition by turning the black ignition key to the position ON .

– Press the MODE button repeatedly until the ODO mode is active.

– Keep the MODE button pressed until the display mode changes from km/h to mph or

from mph to km/h.

5.18Combination instrument - time

400893-11

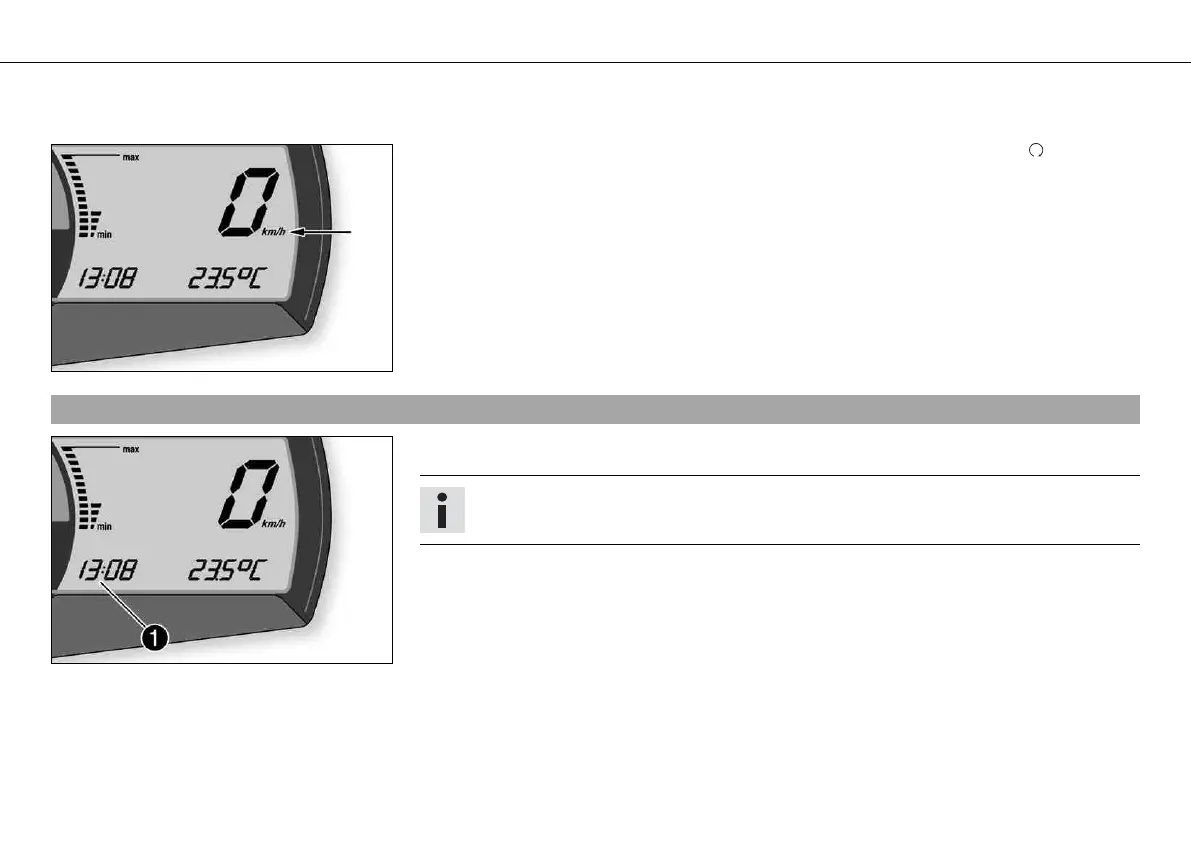

The time is shown in area  of the display.

Info

The time must be reset after the battery is reconnected or when the fuse is changed.
