MAINTENANCE WORK ON FRAME AND ENGINE 137

100616-10

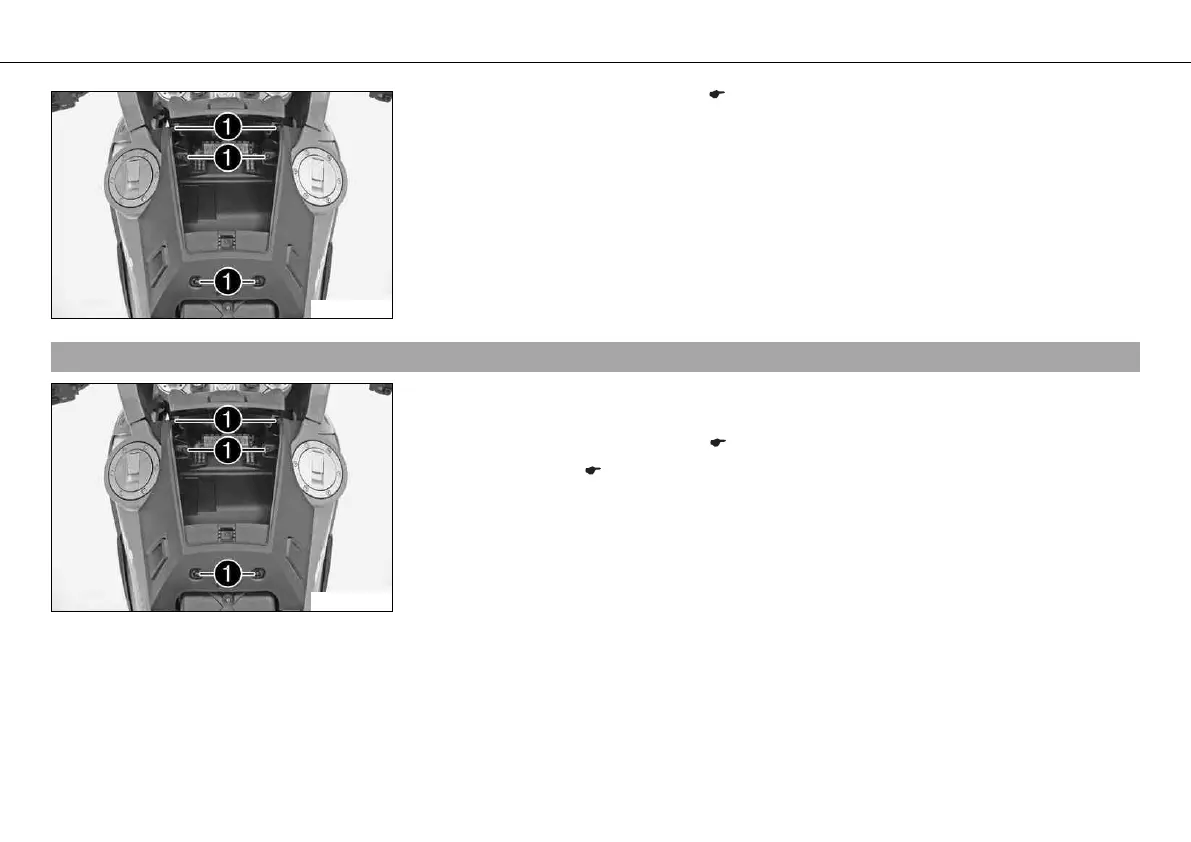

– Open the storage compartment. ( p. 37)

– Remove screws .

– Carefully remove the storage compartment and swing it to the right. Place a cloth

between the right fuel tank and the storage compartment to prevent damage.

9.65Installing the storage compartment x

100616-10

– Remove the cloth and position the storage compartment.

– Mount and tighten screws .

– Close the storage compartment. ( p. 38)

– Mount the seat. ( p. 67)
