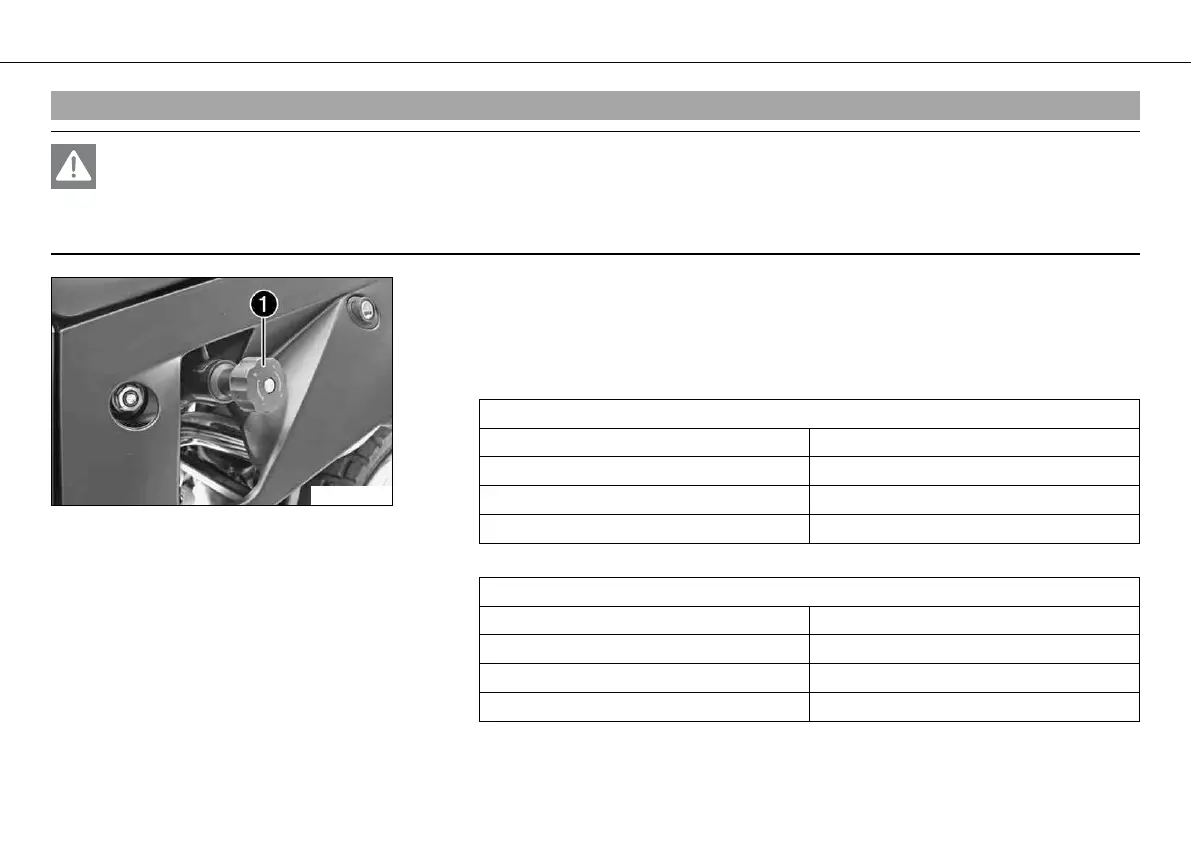

9.13Adjusting the spring preload of the shock absorber
Danger
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will
be glad to help.)
100549-10
– Turn handwheel counterclockwise as far as it will go.
– Turn it clockwise by the number of turns corresponding to the shock absorber type and
use.
Guideline
(990 Adventure)
Spring preload - Preload Adjuster
Comfort 4 turns
Standard 4 turns
Sport 8 turns
Full payload 16 turns
(990 Adventure R)
Spring preload - Preload Adjuster
Comfort 4 turns
Standard 4 turns
Sport 8 turns
Full payload 10 turns
