TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-M39

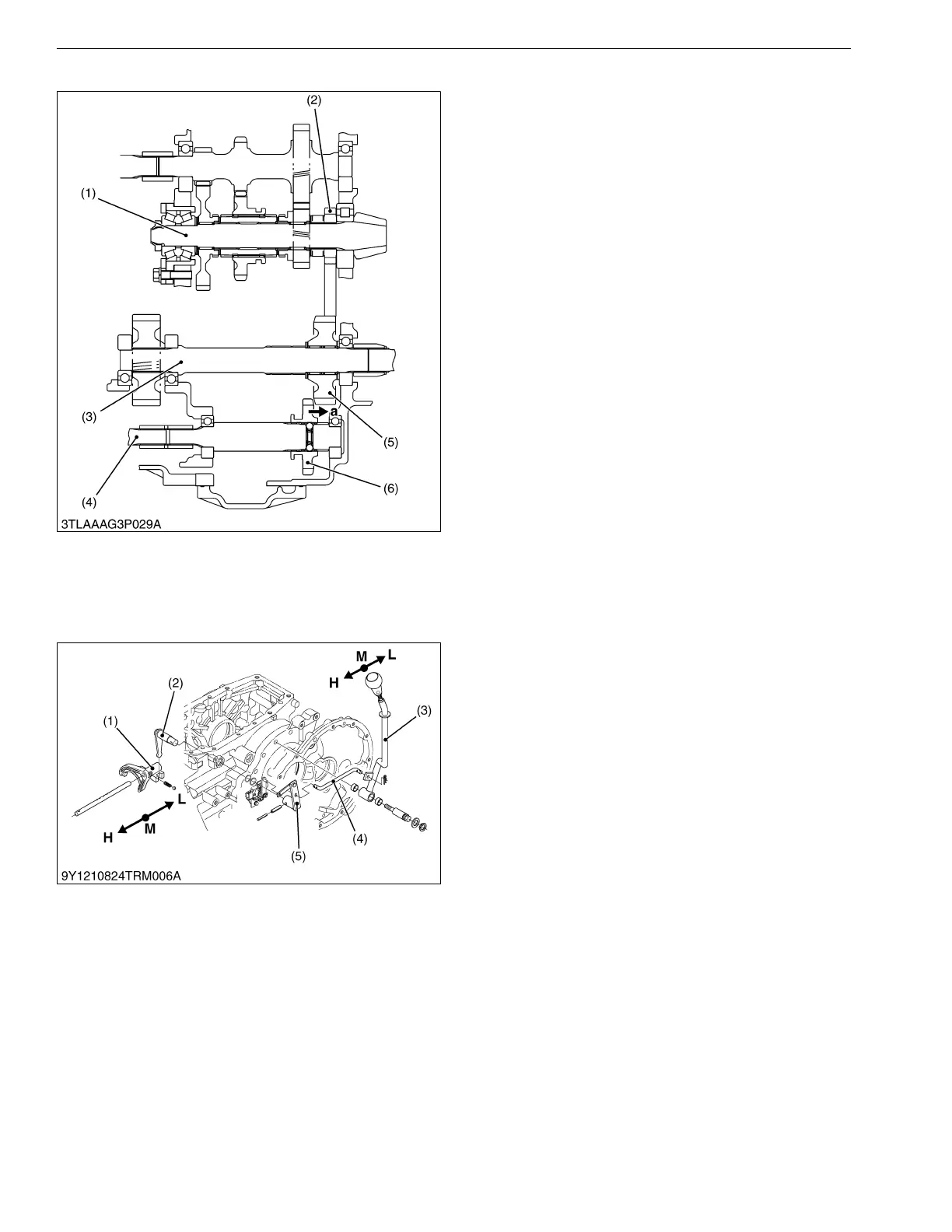

(6) Front Wheel Drive Section
Front wheel drive section is located in the differential
gear case.
2 wheel drive or 4 wheel drive is selected by
operating the front wheel drive lever to shift the shifter
gear (6).
9Y1210824TRM0044US0
[2] SHIFT LINKAGE MECHANISM
The shift linkage mechanism of "Front Wheel Drive Lever", refer to page 3-M7.
9Y1210824TRM0045US0
(1) Range Gear Shift Lever
The links are connected from the shift lever (3) to the
shift fork (1) as shown in figure.
9Y1210824TRM0046US0
(1) Spiral Bevel Pinion Shaft
(2) Front Wheel Drive Output
Gear
(3) PTO Drive Shaft
(4) Front Wheel Drive Shaft
(5) Front Wheel Drive Gear
(6) Shifter Gear
a: 4 Wheel Drive Position
(1) Shift Fork
(2) Shift Arm
(3) Range Gear Shift Lever
(4) Rod
(5) Sub-arm
To Next Page
