ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-S36

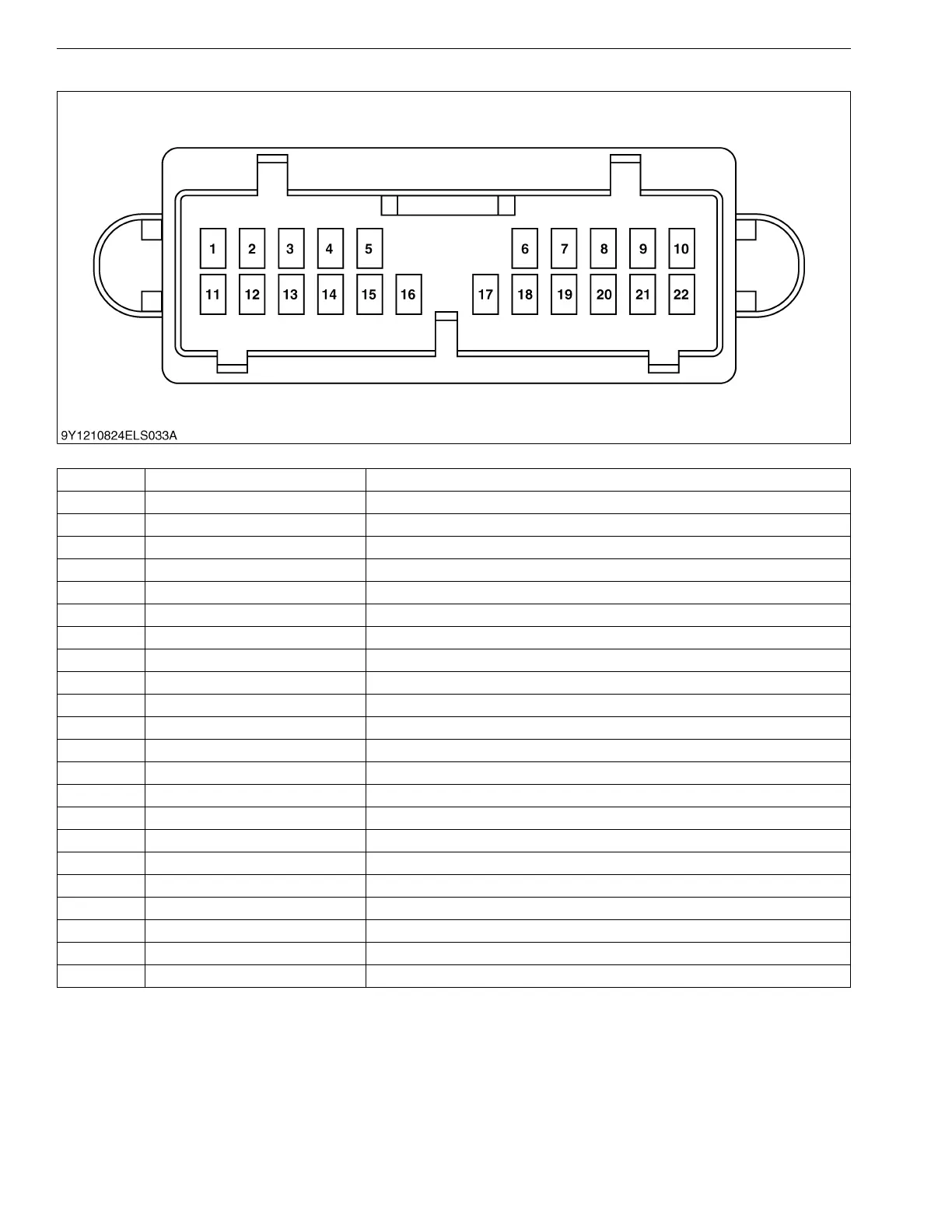

(2) Checking by Electronic Instrument Panel Connector
Connector of Wire Harness Side
9Y1210824ELS0029US0
No. Color of wiring Terminal Name
1 GCAN (L)
2 YCAN (H)
3 ––
4 ––
5 ––
6 ––
7 ––
8 B/W Turn Signal Switch RH
9 G/L Turn Signal Switch LH
10 BGND
11 Br/Y High-Beam Indicator
12 L Engine Oil Pressure Switch
13 W/R Alternator L Terminal
14 ––
15 ––
16 G/R Parking Brake Switch
17 G/R Illumintaion
18 Y/L Fuel Level Sensor
19 ––
20 Lg/B Display Mode Switch
21 R/L IGN
22 R +12V (Power Souse from Battery)
