ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-S37

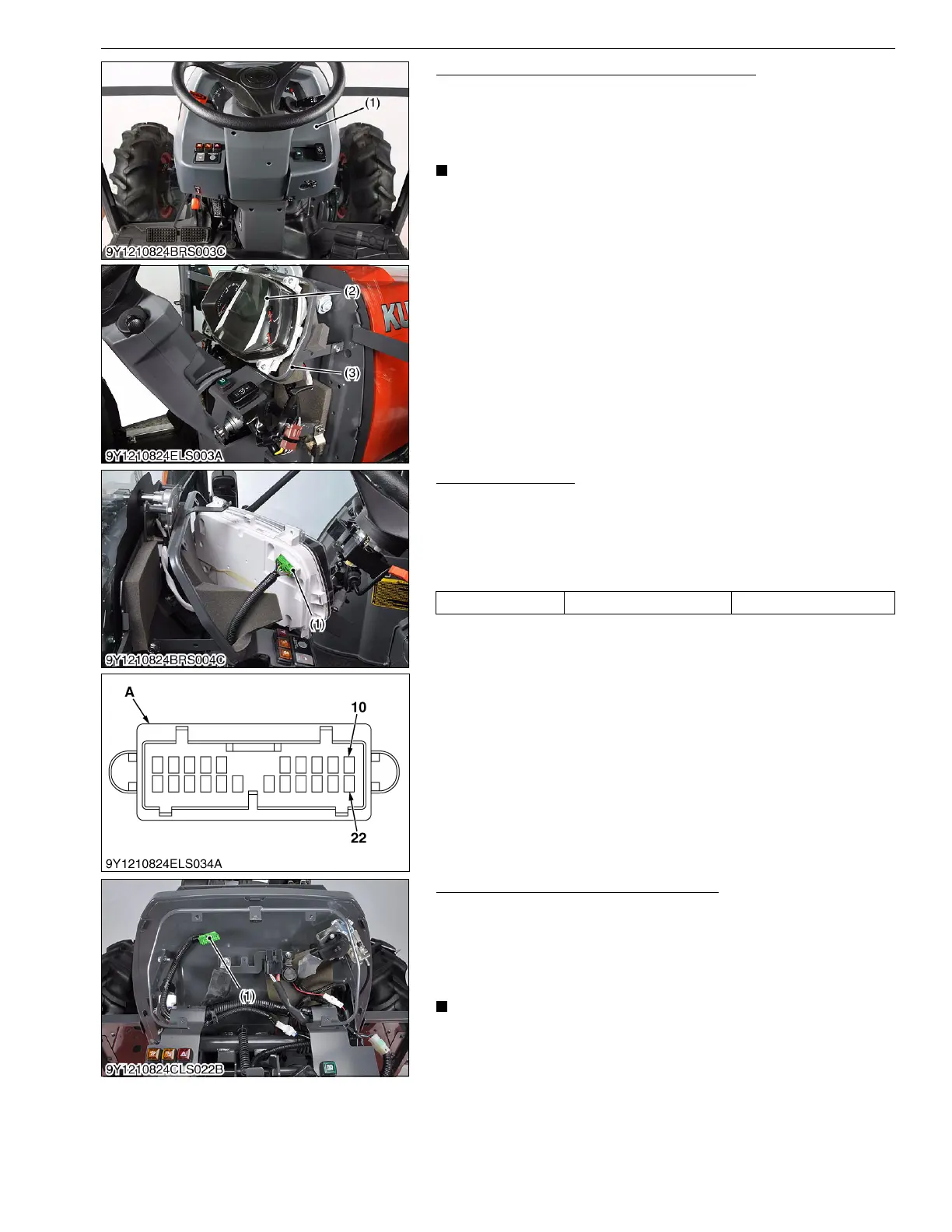

Disconnecting Instrument Panel Connector
1. Remove the panel cover (1).
2. Remove the electronic instrument panel (2) from panel frame
(3).
3. Disconnect the panel connector.
• When replacing the electronic instrument panel, adjust to
mode "B", "C" and mode "J".
9Y1210824ELS0030US0
Connector Voltage
Main Voltage
1. Measure the voltage between the terminal 22 (+) and terminal
10 (−).
2. If the voltage differs from the battery voltage (11 to 14 V), the
wiring harness or battery is faulty.
9Y1210824ELS0031US0
Checking Instrument Panel Connector
1. Disconnect the connector (1) and check their terminals for
contamination and deformation.
2. Check to see that cable does not broken or terminals are not
shelled off.
3. If any damaged parts are found, repair or replace them.
• Connect connectors surely after checked.
9Y1210824ELS0028US0
(1) Panel Cover
(2) Instrument Panel (Intellipanel)
(3) Panel Frame
Voltage Terminal 22 to 10 Approx. battery voltage
(1) Connector A: Connector of Wire Harness Side
(1) Connector
To Next Page
