TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-M41

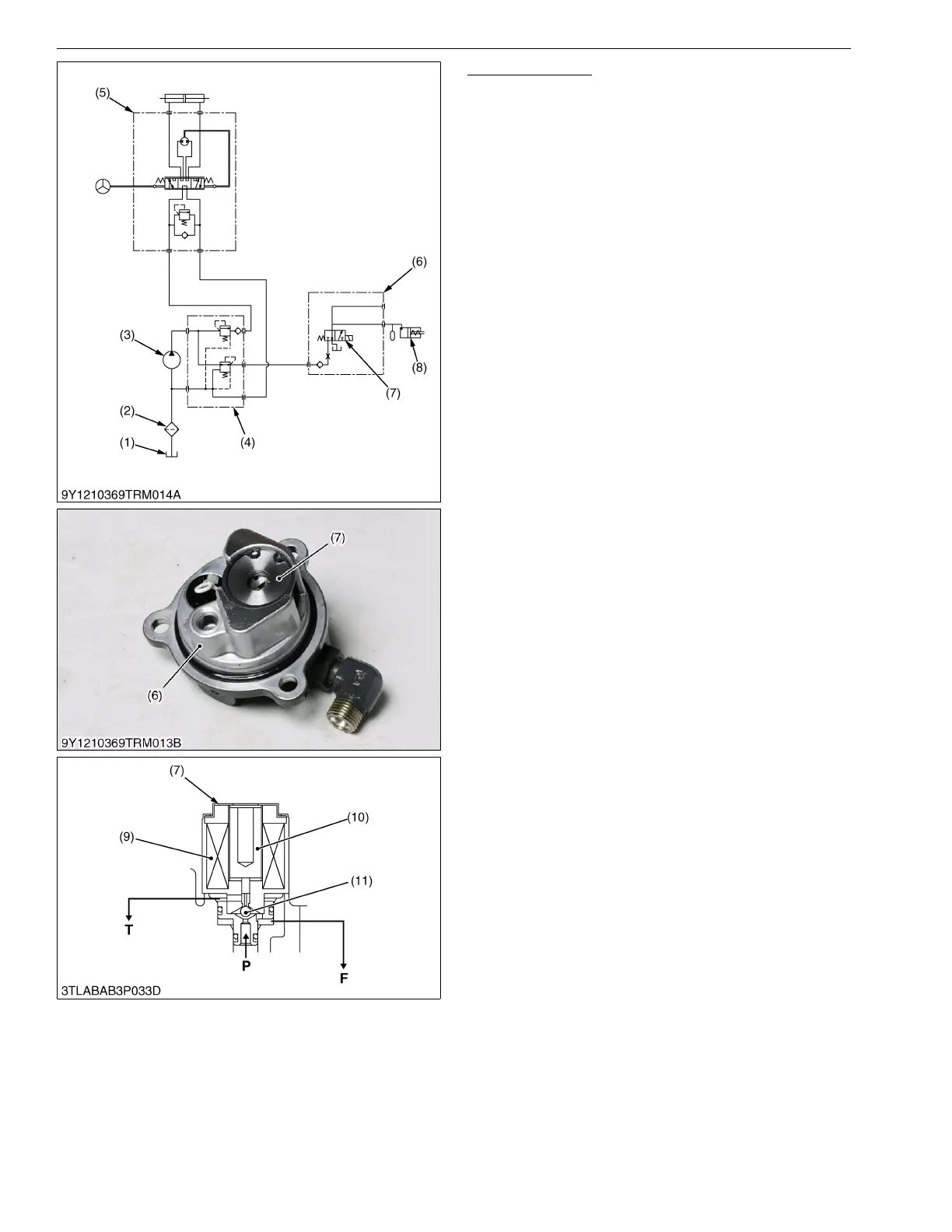

Hydraulic Circuit
The oil from the regulator valve (4) flows into the
PTO clutch solenoid valve (6).
When PTO switch is at "OFF" position, the oil flows
is stopped by PTO solenoid valve (6).
When PTO switch is at "ON" position, the oil flows
PTO clutch through the PTO solenoid valve and PTO
clutch is engaged.
9Y1210824TRM0048US0
(1) Transmission Case
(2) Oil Filter
(3) Hydraulic Pump
(4) Regulator Valve
(5) Power Steering Controller
(6) PTO Valve Assembly
(7) PTO Solenoid Valve
(8) PTO Clutch
(9) Solenoid
(10) Plunger
(11) Ball
P: IN Port
F: To PTO Clutch
T: Drain Port
To Next Page
