TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S65

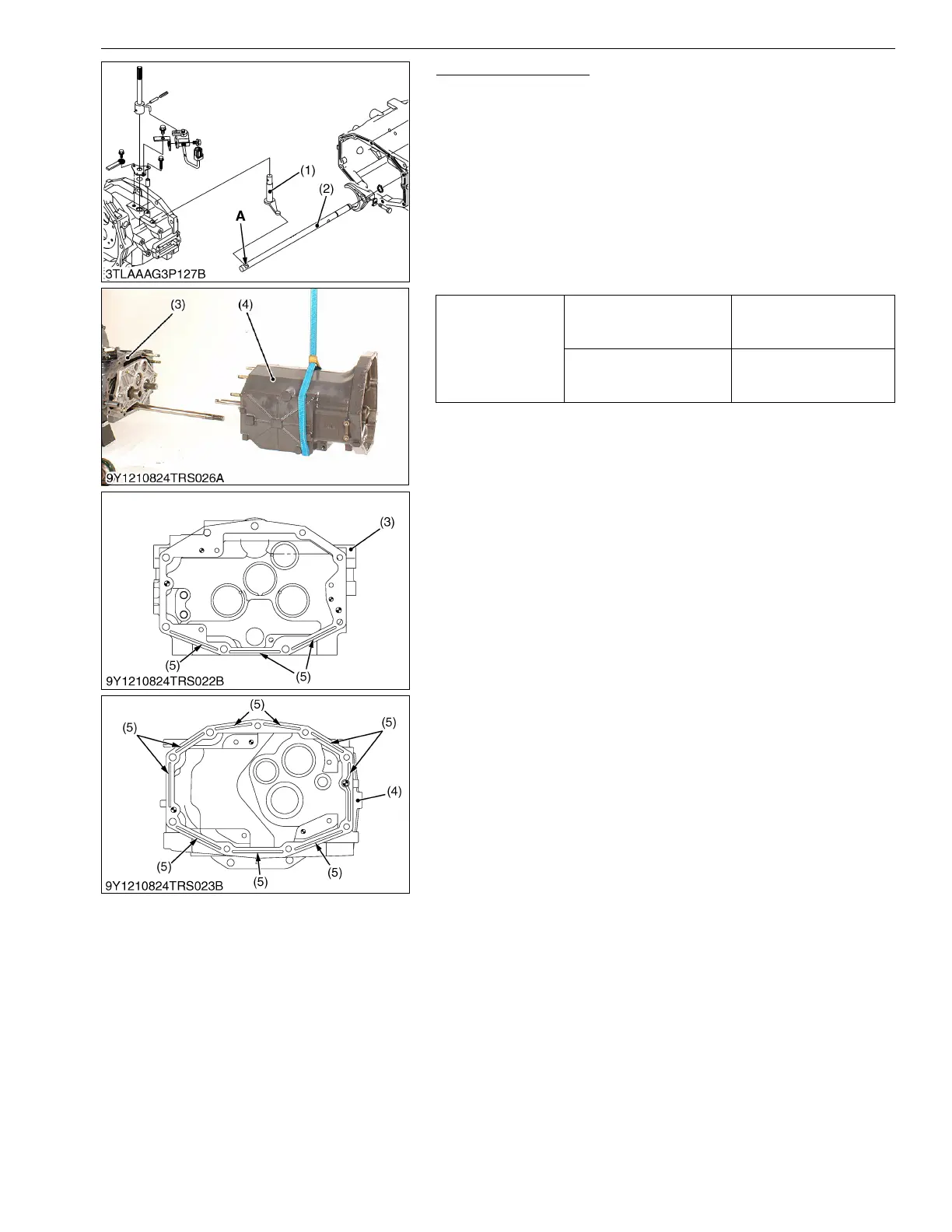

Separating Mid Case
1. Lift up the shuttle shift arm (1).
2. Separate the mid case (4) from the clutch housing (3) after
removing their mounting screws.
(When reassembling)
• Apply liquid gasket (Three Bond 1208C or equivalent) to joint
face of clutch housing (3) and mid case (4).
• When reassembling the shuttle shift arm (1) to the shuttle fork
rod (2), be sure to install it to the groove "A".
• Make sure to apply liquid gasket to elongated grooves (5) on the
mid case face and to those on the lower side of the clutch
housing face.
9Y1210824TRS0022US0
Tightening torque
Clutch housing and mid
case mounting screw
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Clutch housing and mid
case mounting nut
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
(1) Shuttle Shift Arm
(2) Shuttle Fork Rod
(3) Clutch Housing
(4) Mid Case
(5) Elongated Groove
A: Fork Rod Groove
