BRAKES
L3560, L4060, L4760, L5060, L5460, L6060, WSM
5-S14

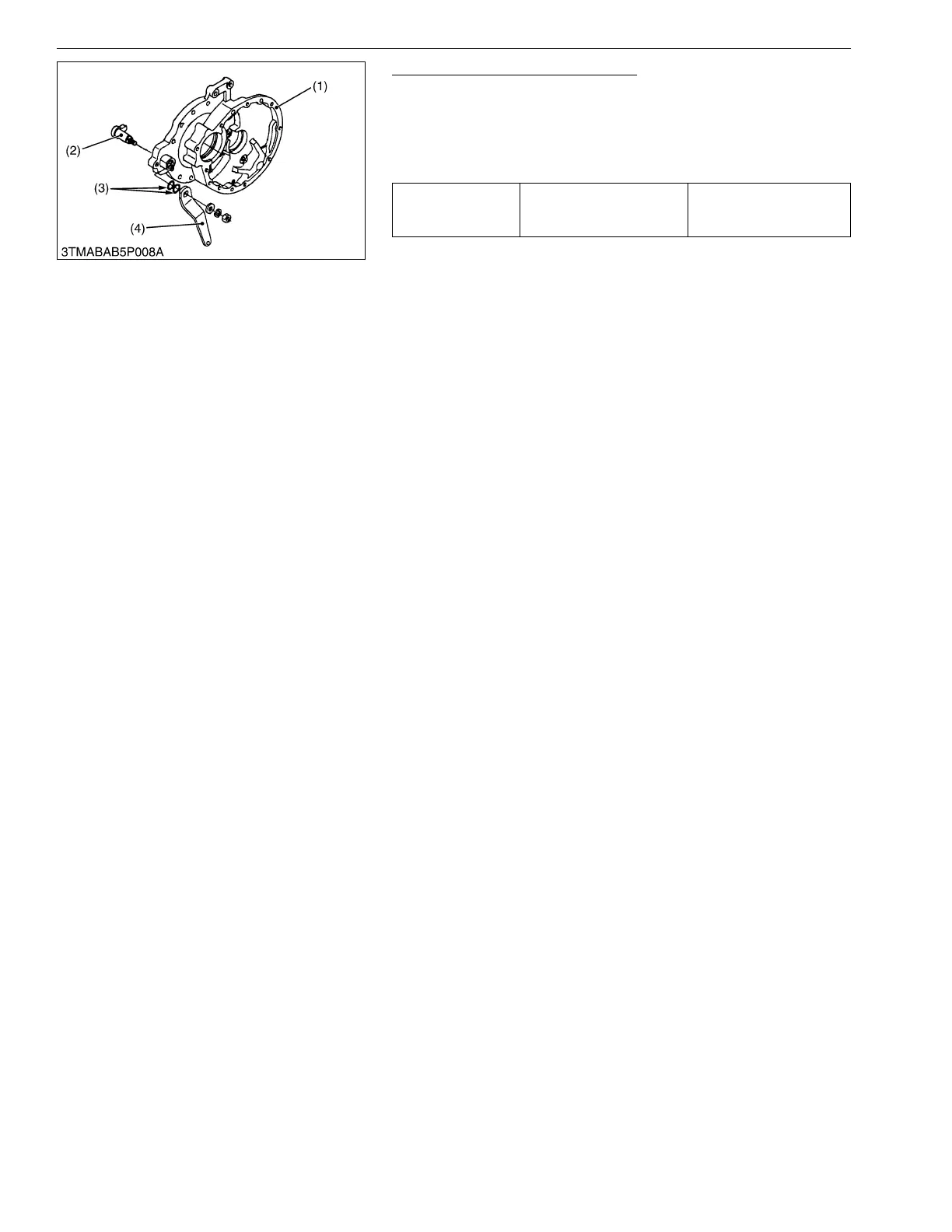

Brake Cam and Brake Cam Lever
1. Remove the brake cam mounting nut and remove the brake
cam (2) and brake cam lever (4).
(When reassembling)
• Apply grease to the O-ring (3) and be careful not damage the
O-ring.
9Y1210824BRS0011US0
Tightening torque
Brake cam lever mounting
nut
63 to 72 N·m
6.4 to 7.4 kgf·m
47 to 53 lbf·ft
(1) Brake Case
(2) Brake Cam
(3) O-ring
(4) Brake Cam Lever
To Next Page
