FRONT AXLE
L3560, L4060, L4760, L5060, L5460, L6060, WSM
6-S9

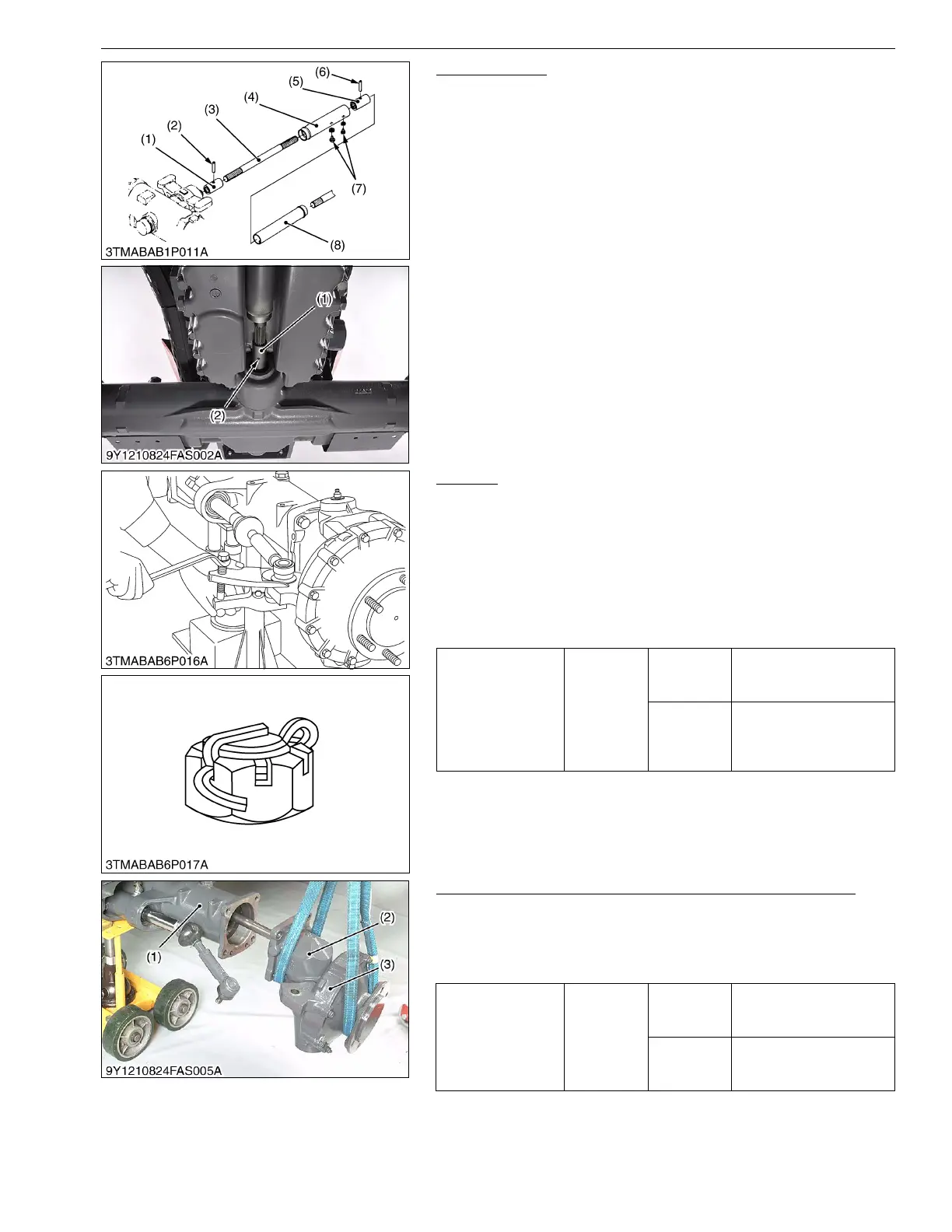

Propeller Shaft
1. Slide the propeller shaft cover (4) and (8) after removing the
screws (7).
2. Tap out the spring pins (2), (6) and slide the couplings (1), (5)
and then remove the propeller shaft with covers (4), (8).
(When reassembling)
• Apply grease to the splines of propeller shaft (3).
9Y1210824FAS0009US0
Tie-rods
1. Jack up the front side of tractor.
2. Remove the front wheels and cylinder covers.
3. Pull out the cotter pin and remove the tie-rod end slotted nuts.
4. Remove the tie-rod with a tie-rod end lifter (Code No.
07909-39051).
(When reassembling)
• After tightening the tie-rod end nut to the specified torques,
install a cotter pin as shown in the figure left.
9Y1210824FAS0013US0
Bevel Gear Case and Front Gear Case (L3560 and L4060)
1. Remove the bevel gear case mounting screws.
2. Remove the bevel gear case (2) and front gear case (3) as a unit
from the front axle case (1).
(When reassembling)
9Y1210824FAS0014US0
(1) Coupling
(2) Spring Pin
(3) Propeller Shaft
(4) Propeller Shaft Cover
(5) Coupling
(6) Spring Pin
(7) Screws
(8) Propeller Shaft Cover
Tightening torque
Tie-rod end
nut
L3560
L4060
40 to 45 N·m
4.0 to 4.6 kgf·m
29 to 33 lbf·ft
L4760
L5060
L5460
L6060
157 to 176 N·m
16.0 to 18.0 kgf·m
116 to 130 lbf·ft
Tightening torque
Bevel gear
case
mounting
screw
L3560
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
L4060
167 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
(1) Front Axle Case
(2) Bevel Gear Case
(3) Front Gear Case
KiSC issued 03, 2016 A
