Lubricating Grease Fitting
1. Apply a small amount of multipurpose grease to the following
points every 50 hours.
If you operated the machine in extremely wet and muddy
conditions, lubricate grease fittings more often.
2. When apply a grease to forward front axle support, remove the
breather plug and apply a grease until grease overflows from
breather plug port. After greasing reinstall the breather plug.
9Y1210824GEG0036US0

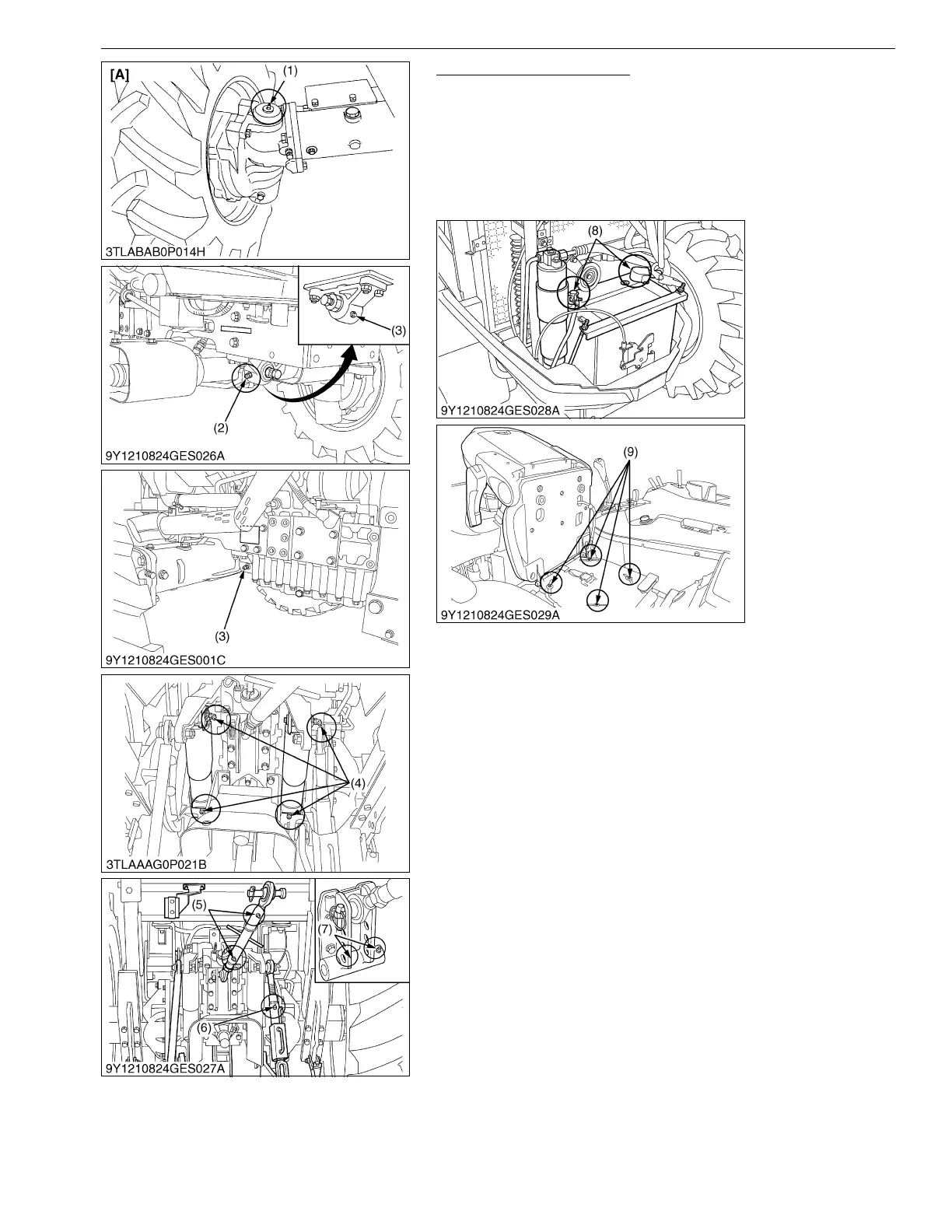

(1) Grease Fitting (Front Wheel Case
Support RH, LH)
(2) Grease Fitting (Front Axle Support)
(3) Breather Plug
(4) Grease Fitting (Lift Cylinder)
(5) Grease Fitting (Top Link)
(6) Grease Fitting (Lifting Rod RH)
(7) Grease Fitting (Top Link Bracket)
(8) Battery Terminal
(9) Swivel Seat
[A] L4760, L5060, L5460, L6060
