HYDRAULIC SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
8-S15

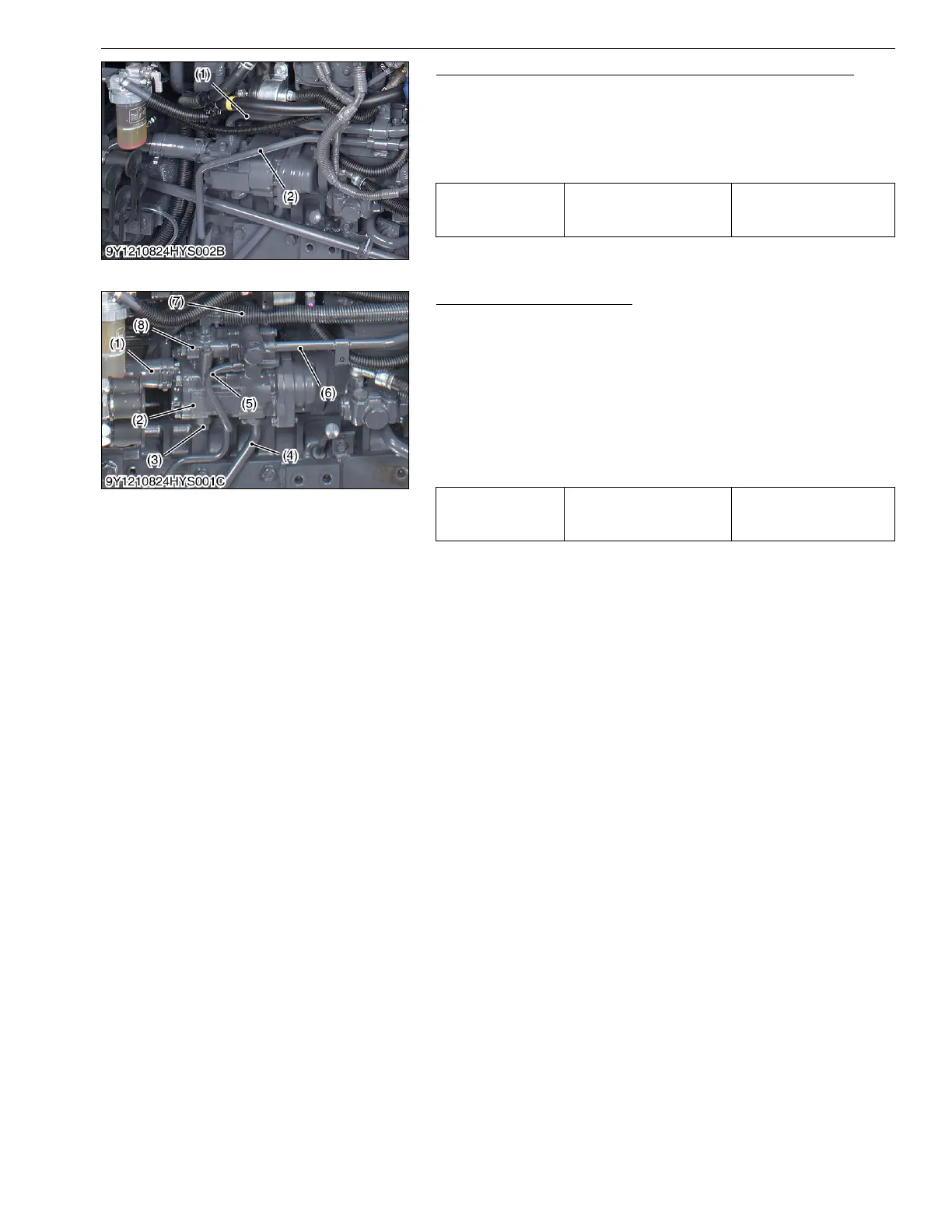

Power Steering Delivery Pipe and Oil Cooler Return Pipe
1. Disconnect the power steering delivery pipe (2) and oil cooler
return pipe (1).
(When reassembling)
• Install the copper washers firmly.
• Be careful not to damage the O-ring.
9Y1210824HYS0014US0
Hydraulic Pump Assembly
1. Disconnect the power steering delivery pipe (6) and return hose
(7).
2. Disconnect the PTO delivery pipe (5) and regulator delivery pipe
(3).
3. Remove the regulating valve (8).
4. Disconnect the suction hose (1) and main delivery pipe (4).
5. Remove the hydraulic pump assembly (2).
(When reassembling)
• Apply grease to the O-ring and be careful not to damage it.
9Y1210824HYS0015US0
Tightening torque
Power steering delivery
pipe joint bolt
40 to 49 N·m
4.0 to 5.0 kgf·m
29 to 36 lbf·ft
(1) Oil Cooler Return Pipe (2) Power Steering Delivery Pipe
Tightening torque
Hydraulic pump assembly
mounting screw and nut
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Suction Hose
(2) Hydraulic Pump Assembly
(3) Regulator Delivery Pipe
(4) Main Delivery Pipe
(5) PTO Delivery PIpe
(6) Power Steering Delivery Pipe
(7) Return Hose
(8) Regulator Valve
To Next Page
