CABIN
L3560, L4060, L4760, L5060, L5460, L6060, WSM
10-S46

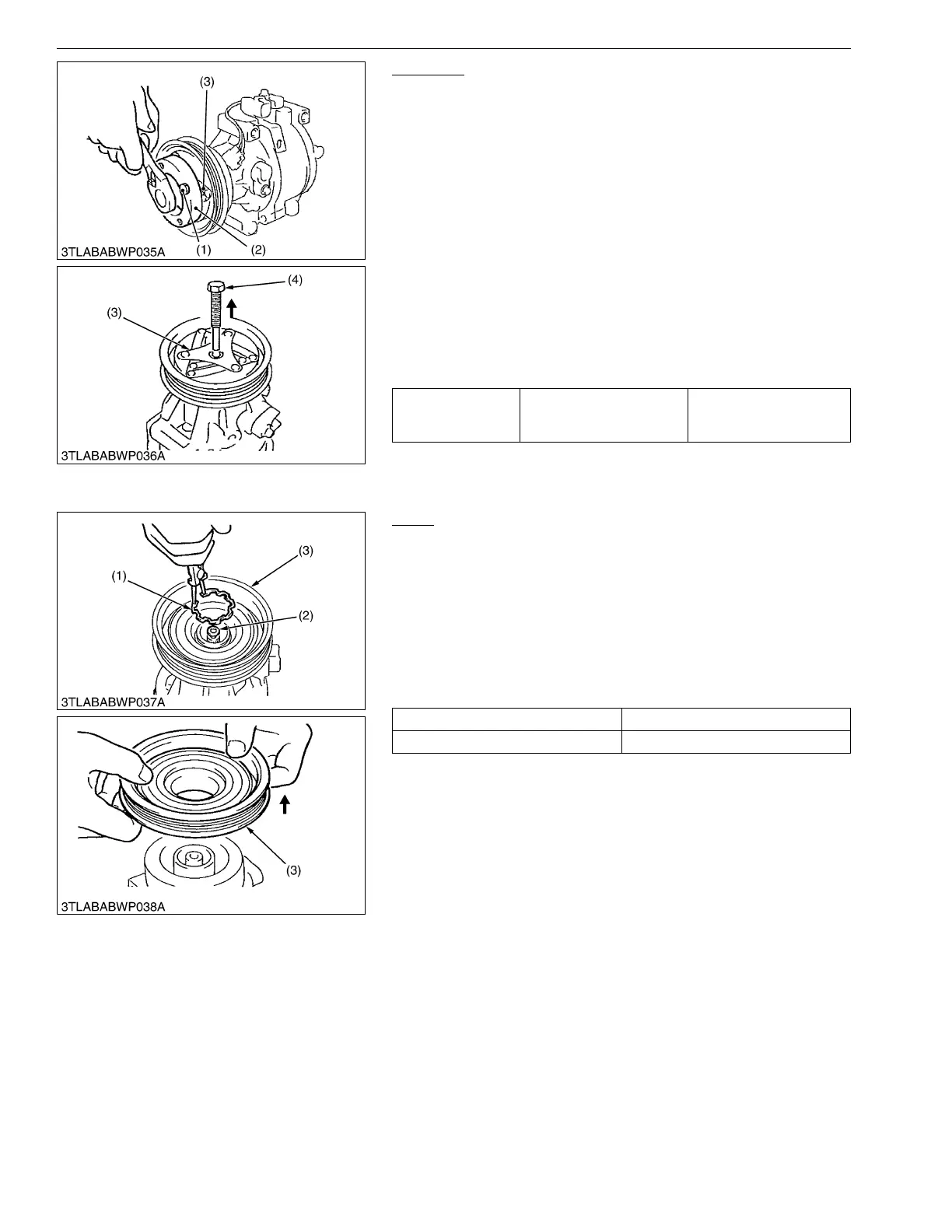

Hub Plate
1. Three stopper bolts (1) are set in stopper magnet clutch (2) at
the position corresponding to the shape of compressor. (See
page G-72.)
2. The stopper magnet clutch (2) is hung on hub plate (3) and it is
fixed that the compressor rotates.
3. Remove the magnet clutch mounting screw.
4. Remove the hub plate (3).
5. Remove the shims.
(When reassembling)
• Do not apply grease or oil on the hub plate facing.
• Do not use the magnetic clutch mounting screw again.
• Make sure to turn rotor by hand after assembling and the stator
does not contact with the hub plate.
• Check and adjust the air gap before tight the magnet clutch
mounting screw or nut to the specified torque. (See page
10-S57.)
9Y1210824CAS0075US0
Rotor
1. Remove the circlip (1).
2. Remove the rotor (3).
(When reassembling)
• Do not use the circlip again.
• Assemble the circlip for the tapered side to become outside of
rotor.
• The width of expanding of circlip is set in boss of shaft as a
minimum.
(Reference)
9Y1210824CAS0076US0
Tightening torque Clutch mounting screw
12.3 to 14.1 N·m
1.25 to 1.44 kgf·m
9.05 to 10.4 lbf·ft
(1) Stopper Bolt
(2) Stopper Magnet Clutch
(3) Hub Plate
(4) Remover Magnet Clutch
Type of compressor Code No. for circlip
Scroll type T1065-87450
(1) Circlip
(2) Shim
(3) Rotor
