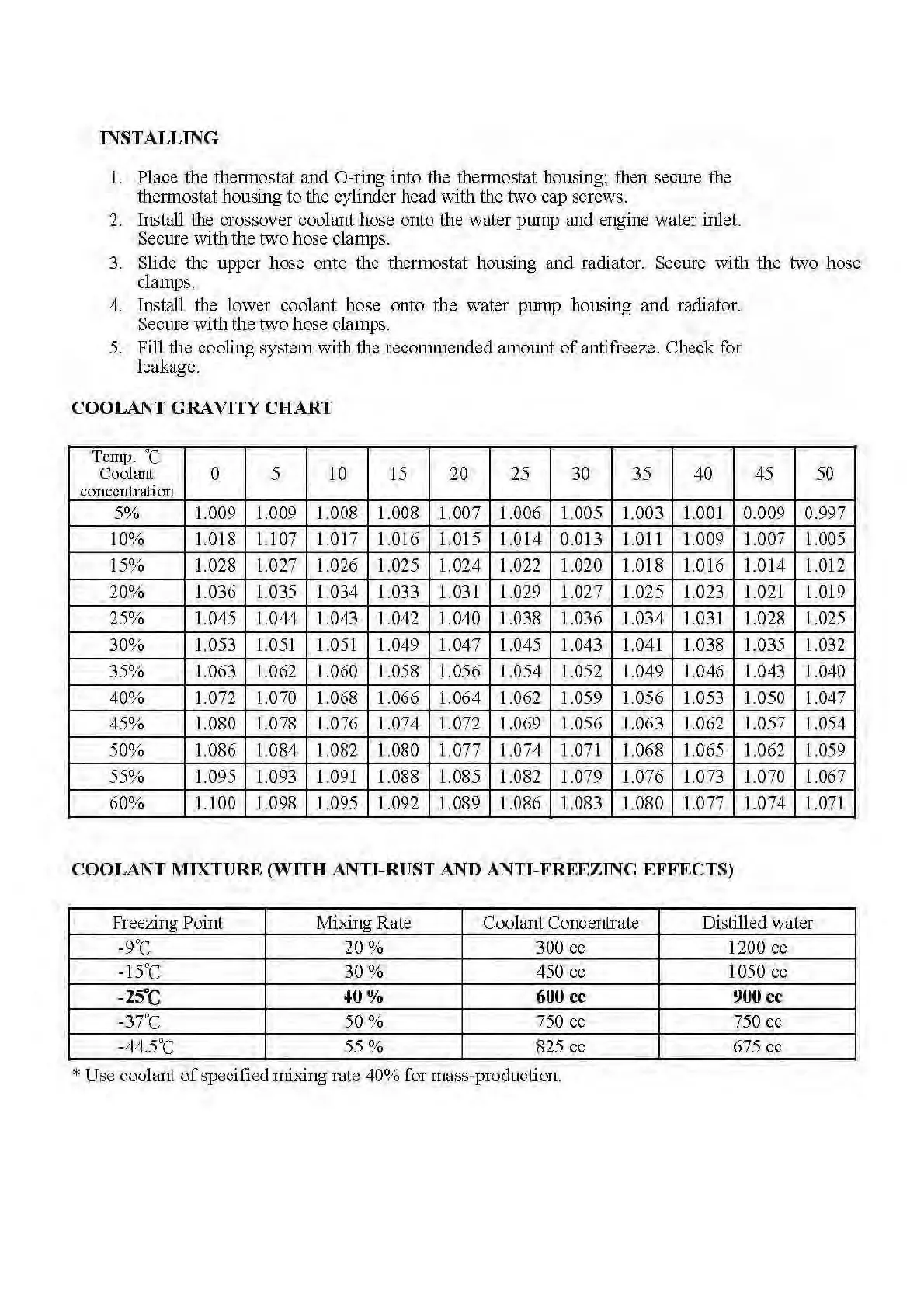

10-4
INSTALLING
1.
Place the thennostat and 0-ring into the thennostat
housing~
then secure the
therrnostat housing to the cylinder head with the two cap screws.
2. Install the crossover coolant hose onto the water pump and engine water inlet.
Secure with the
tvvo
hose clamps.
3.
Slide the upper hose onto the thermostat housing and radiator. Secure with the two hose
clamps.
4.
Install the lower coolant hose onto the water pump housing and radiator.
Secure with the two hose clamps.
5.
Fill the cooling system with the recommended amount
of
antifreeze. Check for
leakage.
COOLANT GRAVITY
CHART
Temp. QC
Coolant
0 5 10 15 20 25 30
35
40
concentration
5%
1.009 1.009 1.008 1.008 1.007 1.006 1.005 1.003 1.001
10% 1.018 1.107
1.017
1.016 1.015
1.014
0.013 1.011 1.009
15% 1.028 1.027 1.026 1.025 1.024 1.022 1.020 1.018 1.016
20% 1.036
1.035
1.034 1.033
1.031 1.029 1.027 1.025
1.023
25%
1.045 1.044 1.043 1.042 1.040 1.038 1.036 1.034 1.031
30% 1.053 L051 1.
051
1.049 1.047 1.045 1.043 1.041 1.038
35% 1.063 1.062 1.060 1.058 1.056 1.054 1.052 1.049 1.046
40%
1.072
1.070 1.068 1.066
1.064
1.062 1.059 1.056
1.053
45% 1.080 L078 1.076 1.074 1.072 1.069 1.056 1.063 1.062
50% 1.086 1
.'
084 1.082 1.080 1.077 1.074 1
."
071
1.068 1.065
55%
1.095
1.093 1.091 1.088 1.085 1.082
1.079
1.076 1.073
60%
1.100 1.098 1.095 1.092 1.089 1.086 1.083 1.080 1.077
COOLANT MIXTURE
(WITH
ANTI-RUST AND ANTI-FREEZING EFFECTS)
45
50
0.009
0.997
1.007 1.005
1.014 1.012
1.021 1.019
1.028 1.025
1.035 1.032
1.043 1.040
1.050
1.047
1.057
1.05
"4
1.062 1.059
1.070 1.067
1.074
1.071
Freezing Point
Mixing Rate Coolant Concentrate Distilled water
-9°C
20%
300 cc 1200 cc
-15°C
30%
450 cc 1050 cc
-25°C
40%
600
cc
900cc
·-37°C
50%
750 cc
750 cc
-44.5
9
C
55%
825 cc 675 cc
* Use coolant
of
specified mixing rate 40% for mass-production.
