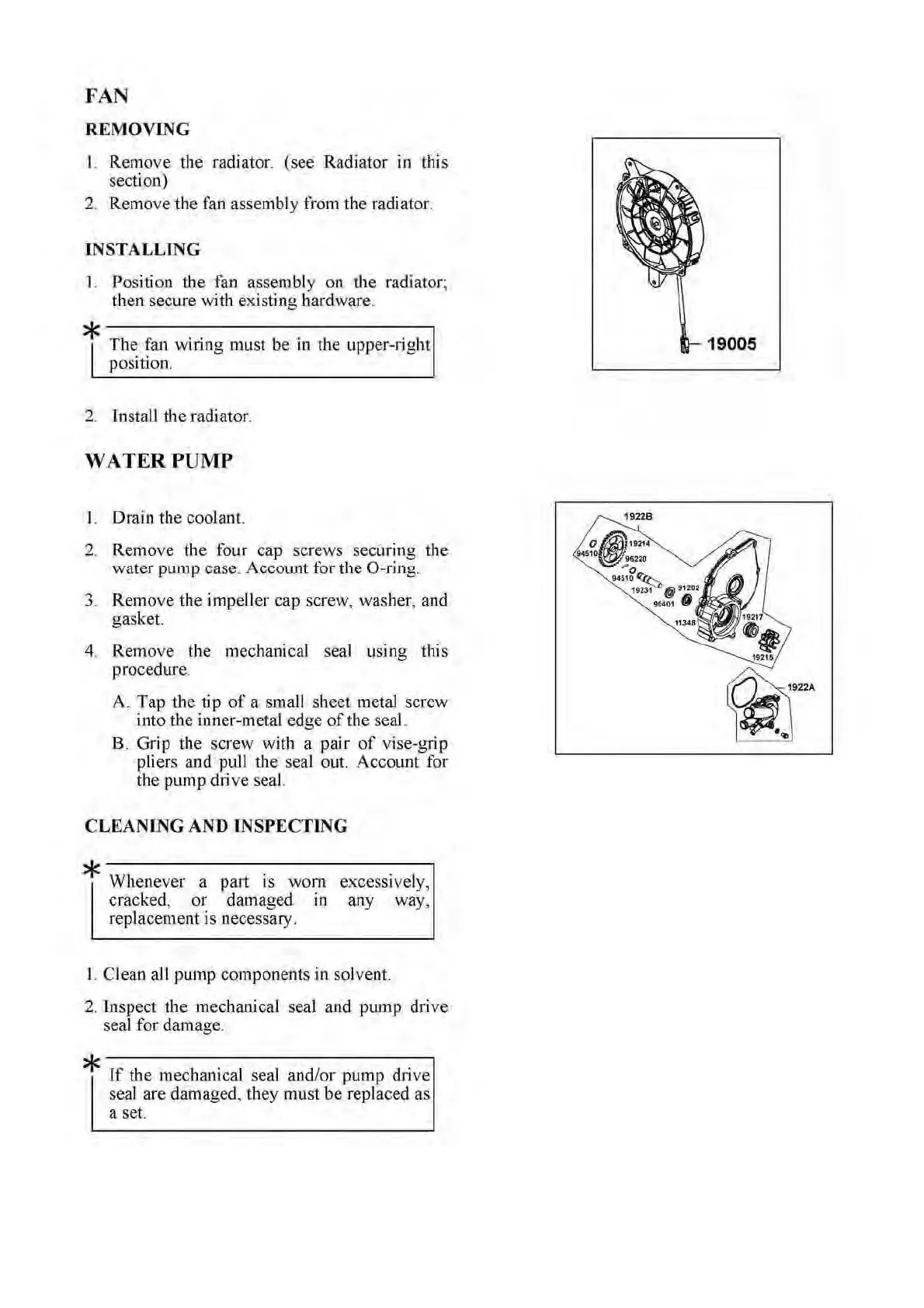

10-5
FAN
REMOVING
L Remove
the
radiator. (see Radiator in this
section)
2. Remove the fan assembly from
the
radiator.
INSTALLING
1.
Position the fan assembly on the radiator;
then secure
with
existing hardware.
* The fan wiring must be in the upper-right
position.
2. Install the radiator.
WATER PUMP
I. Drain the coolant.
2. Remove the four cap screws securing
the
water
pump case. Account for
the
0-ring
.
3.
Remove
the impeller cap screw, washer, and
ga
sket.
4. Remove the mechanical seal ustng this
procedure.
A. Tap
the
tip
of
a small sheet metaJ screw
into the inner-metal edge
of
the
seal.
B. Grip the screw with a pair
of
vise-grip
p
li
ers and pull the seal out.
Account
for
the
pump drjve seal.
CLEANING AND INSP.ECTING
*Wl
.
1enever a part ts
wom
cracked, or damaged in
replacement is necessary.
excessively,
any way.
1.
Clean
all
pump components in solvent.
2. lnspect the mechanical seal and pump drive
seal
for
damage.
*
If
the
mechanical seal and/
or
pump drive
seal are damaged, they must
be
replaced as
a set.
19005
