HDMI cable
DC power cord
USB cable

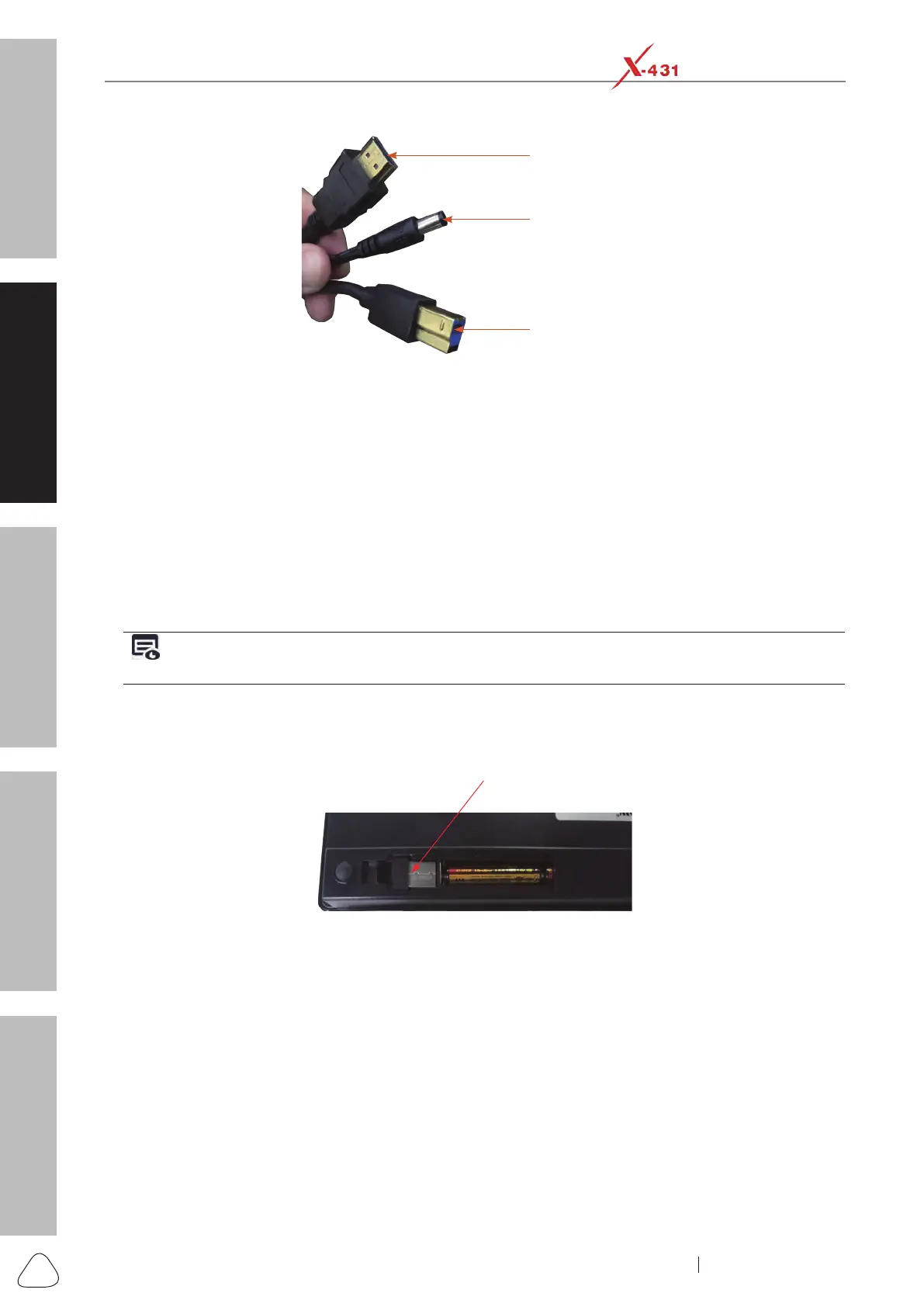

The 3 cables in the lifting drag chain
6. Hang the mount bracket secured on the monitor on the monitor hook.
2.1.2 Installing the camera
If remote diagnostics and video chat are required, mount the camera on top of the monitor and plug the
camera's USB cable into the USB hub on the back of the workbench.
2.1.3 Installing the wireless keyboard and mouse
1. Take out the keyboard and mouse from the package box.
2. A wireless receiver
is installed within the battery compartment of the keyboard. Open the battery
compartment cover following the indicated direction.
Note: Only one wireless receiver is available for the mouse and keyboard since they can share the same
receiver.
3. Take the wireless receiver from the battery compartment and plug it into the USB hub on the diagnostic
workbench.
4. Slide the switch on the back of the mouse & keyboard to ON.
Wireless receiver
5. Now the mouse & keyboard are ready for use.
2.1.4 Powering on the diagnostic workbench
1. The power cord jack of the mobile diagnostic workbench is located on the right side of the cabinet, as
shown in the following gure:
To Next Page
