LAUNCH
Station
User's Guide
4.1.2 Controls & Accessories

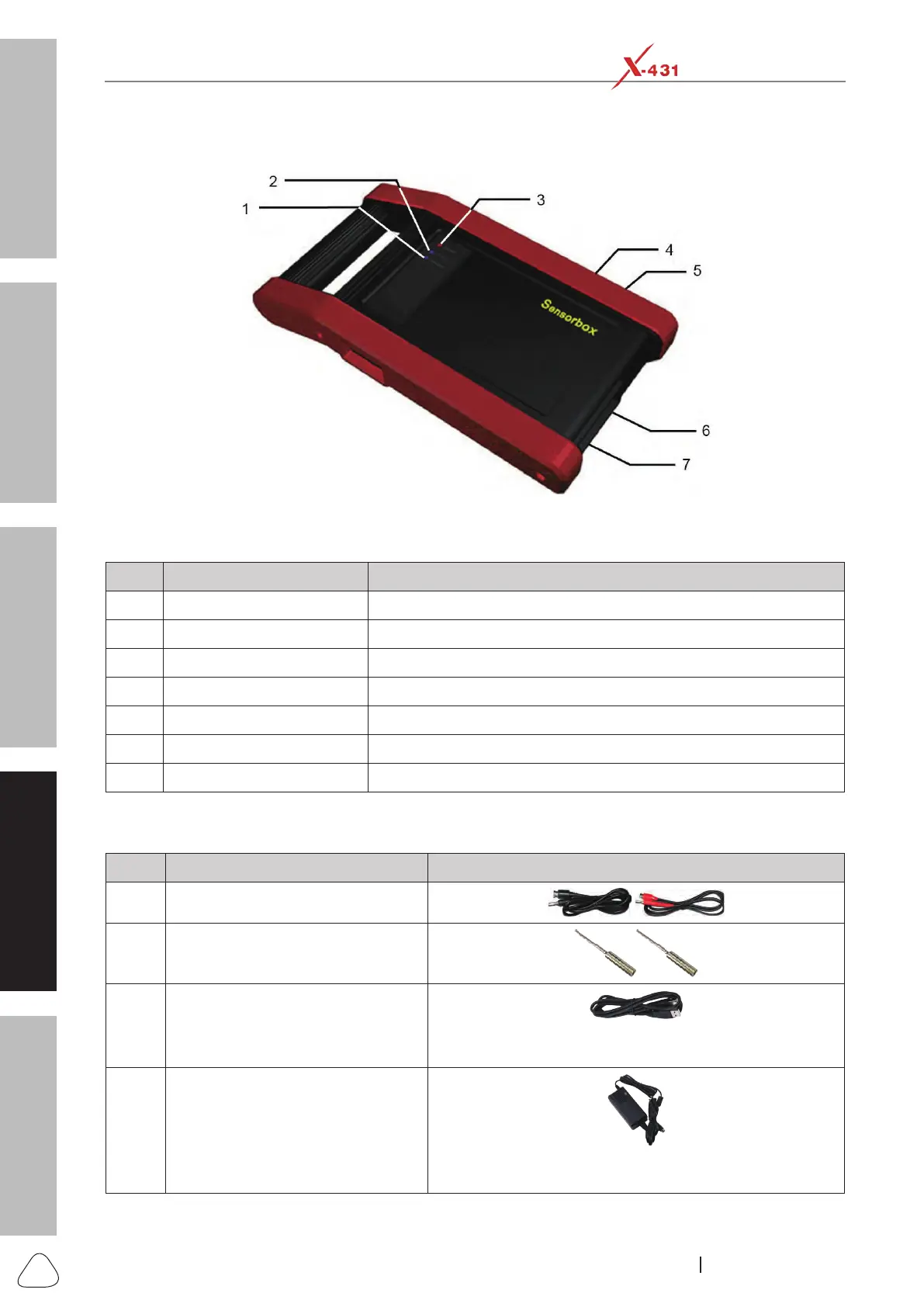

Sensorbox Front View
Below shows the ports and indicators for the Sensorbox
No. Name Description
1 Data receiving LED Indicator (green) for receiving data from the diagnostic tool.
2 Data sending LED Indicator (green) for sending data to the diagnostic tool.
3 Power LED It keeps steady on (red) after theSensorbox is powered on.
4 B-shaped data I/O port Connect to the diagnostic tool with data cable.
5 Power Interface Connect to power supply through the power adaptor.
6 COM Common terminal of multimeter
7 VΩHz Testing terminal of multimeter
The Sensorbox accessories include sensor test cable, probe etc. For detailed items, please see the packing
list. Below formulates the Sensorbox accessories:
No. Name Picture
1 Sensor test cable
2 Sensor probes
3 Data Cable
Connects the Sensorbox and diagnostic tool so that the sampled
signal can be displayed on the diagnostic tool.
4 Power adapter
To supply power to the Sensorbox through connection to AC
outlet.
