STATUS GPS1200 179
24.1.2 Real-Time Status

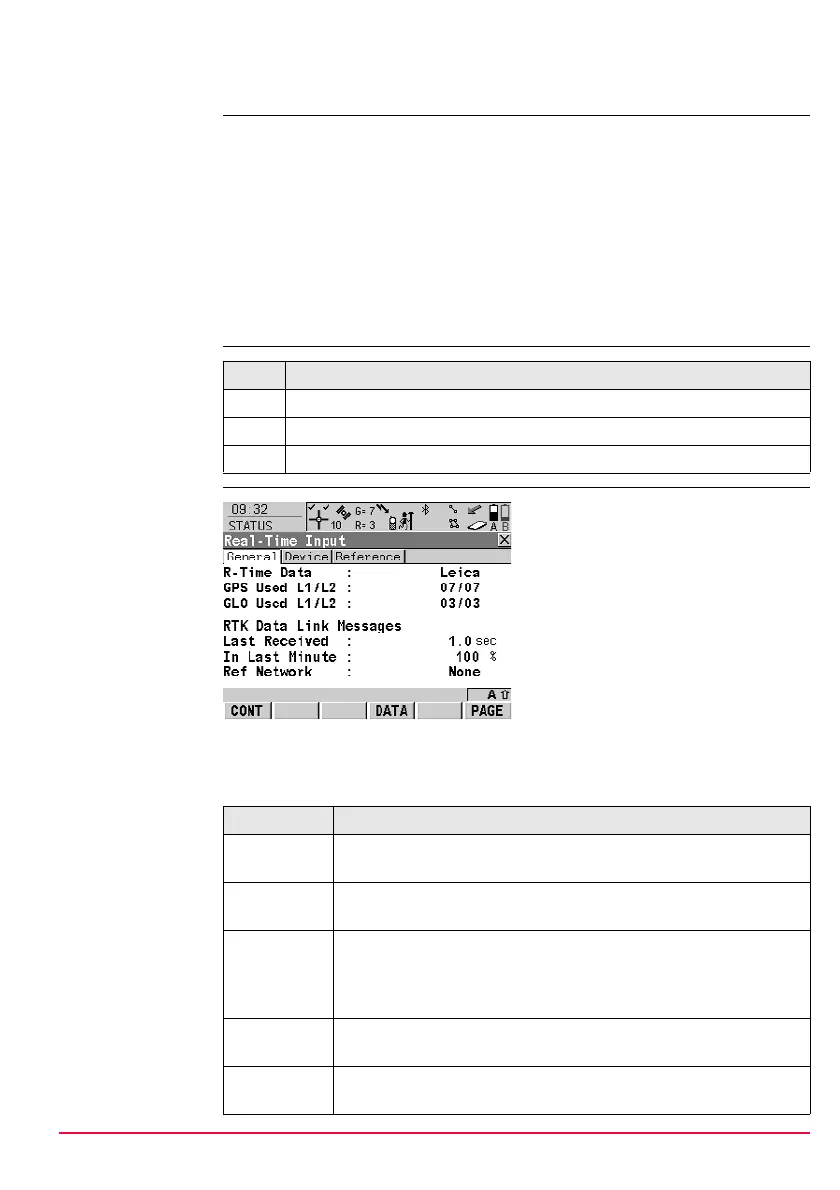

Description This screen shows information related to real-time data.
The name of the screen changes depending on the configuration:
For simplicity, the screen is named here as STATUS Real-Time. Differences
depending on the configurations are outlined.
Access
STATUS
Real-Time,
General page
Description of fields
Real-time rover configuration: STATUS Real-Time Input
Real-time reference configuration with one
real-time device: STATUS Real-Time Output
Real-time reference configuration with two
real-time devices: STATUS Real-Time Output 1
and STATUS Real-Time Output 2
Step Description
1. Press USER to access GPS1200 User Menu.
2. Press STAT (F3) to access STATUS Status Menu.
3. Select Survey...\Real-Time Status.
CONT (F1)
To exit STATUS Real-Time.
DATA (F4)
To view the data being received.
Depending on <R-Time Data:>, the
shown data differ.
REF2 (F5) and REF1 (F5)
Available for <R-Time Mode: Refer-
ence> with two real-time devices
configured. To change between the
status information for both real-time
devices.
Field Description
<R-Time
Data:>
The received real-time data format message type.
<GPS used
L1/L2:>
The number of satellites on L1 and L2 being used in the current
position solution.
<GLO used
L1/L2:>
Available for GX1230 GG/ATX1230 GG/GRX1200 GG Pro when
<Sat System: GPS & GLONASS> is configured in
CONFIGURE Satellite settings. The number of satellites on L1
and L2 being used in the current position solution.
<Last Sent:> Available for <R-Time Mode: Reference>.
Seconds since the last message from the reference was sent.
<Last
Received:>
Available for <R-Time Mode: Rover>.
Seconds since the last message from the reference was received.
To Next Page
