Lenz Digital plus SET-01/4 User Manual

Information SET-01 7
DIGITAL plus
3 Quick Start Users Guide
In this section you will learn about:
- the few steps that you need to know to operate your SET-01
- how to start your first test run
In the later sections, the whole range of functions of the SET-01 will
be explained in detail.
3.1 Connection and
initial operation

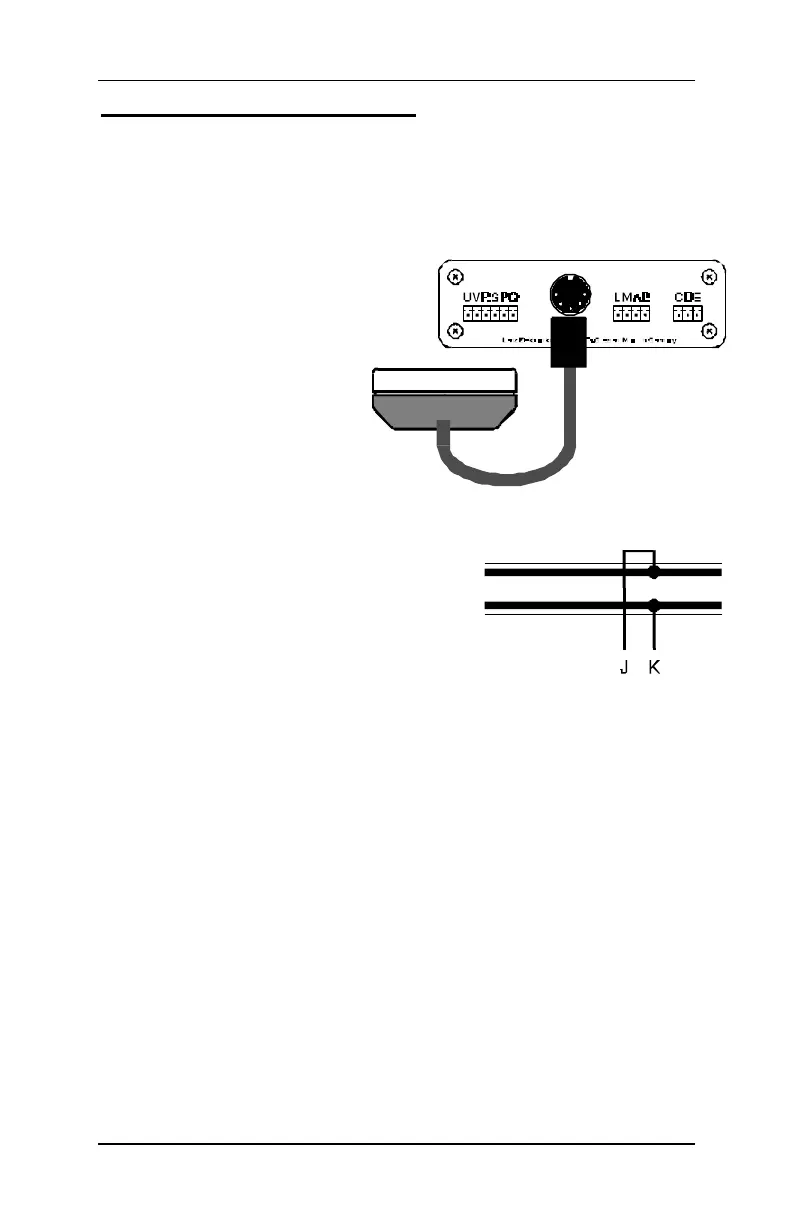

1. Plug the 5 pin din plug at
the end of the LH100 cord
into the 5 pin din socket
that is located on the rear
of the LZ100
2. Connect terminals J and K of the
LV101 power station to the tracks of
your model railway. You can pull off the
green terminal connectors on the back
of the LZ100 and LV101. This will
facilitate the installation of cables.
Make sure that no other transformers
or operating controllers are connected
to the tracks.
3. For a quick start, connect terminals U and V of the LZ100 and
of the LV101 to a model railway transformer with a 14-18 VAC
voltage. Eventually you will want two separate transformers but
for now a single transformer will work fine. For initial operation
virtually any transformer with a current rating of greater than 13
VA will work. To operate the maximum number of locomotives a
transformer with a minimum capacity of 60 VA should be used
for the LV101 and a 1.25 Amp 14 volt transformer such as the
TR16 used for the LZ100. See page 82 for more details on
suitable transformers.
