Preface and general information
System block introduction
Access via system variables
1

23
EDBCSXA064 EN 3.2
1.5.3 Access via system variables
If you have integrated a system block into the system configuration of the DDS, you can use
its system variables within your project.

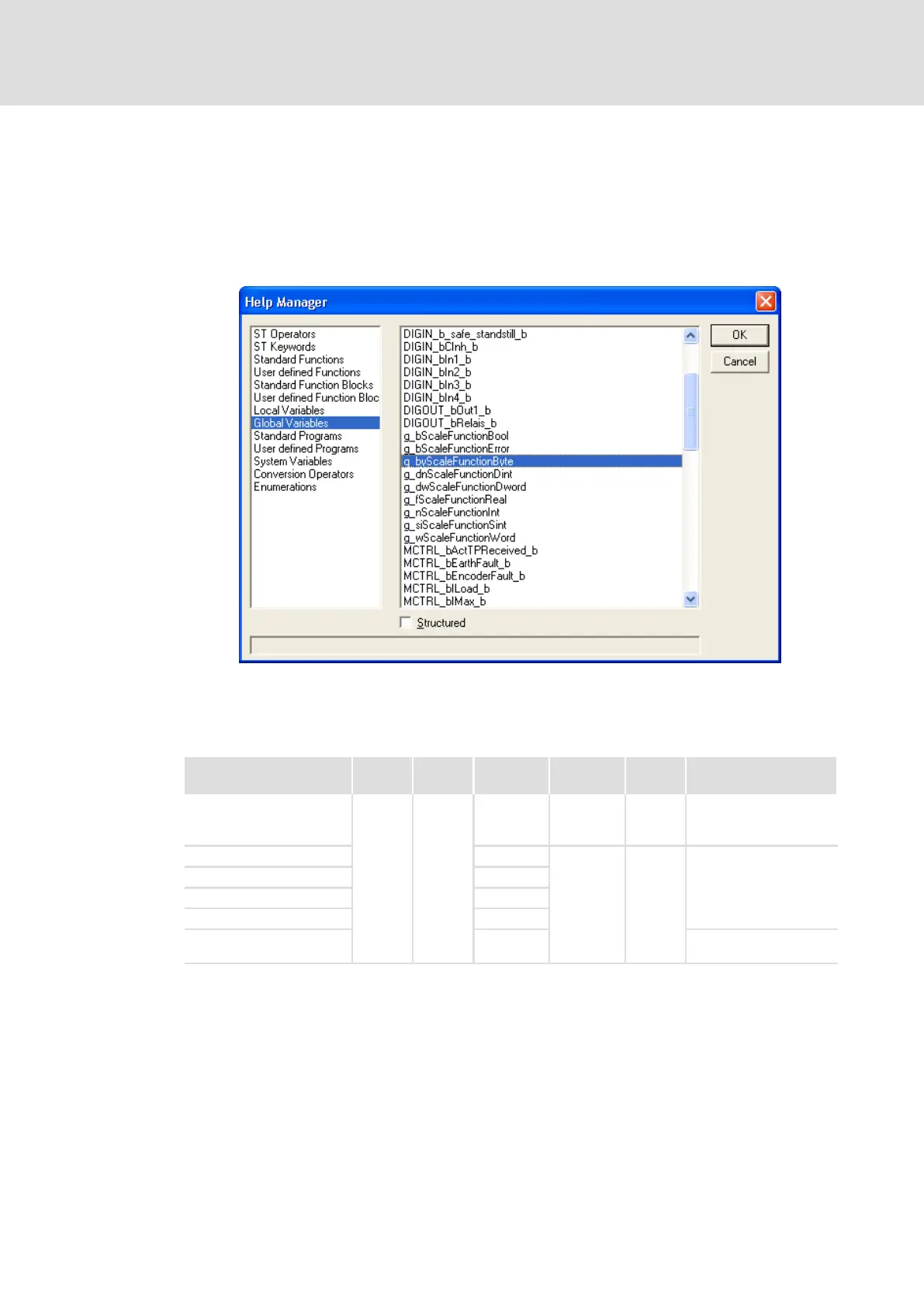

You can call up the input assistance in the editors of the DDS via <F2>, among other things
listing all the system variables that are provided:
In this Manual, the system variables can be retrieved in the system variable table of the
corresponding system block.
Example: Table with the inputs of the SB Inputs_Digital of the ECSxA... axis module
Variable Data
type
Signal
type
Address Display
code
Display
format
Notes
DIGIN_bCInh_b
BOOL
binary
%IX1.0.0 ˘ ˘
Controller inhibit ˘ takes
direct effect on the
device control DCTRL.
DIGIN_bIn1_b %IX1.0.1
C0443 bin
DIGIN_bIn2_b %IX1.0.2
DIGIN_bIn3_b %IX1.0.3
DIGIN_bIn4_b %IX1.0.4
DIGIN_b_safe_standstill_b %IX1.0.5
"Safe torque off"
(former "safe standstill")
