Preface and general information
System block introduction
Integrate system blocks into DDS
1

26
EDBCSXA064 EN 3.2
1.5.6 Integrate system blocks into DDS
The required system blocks must be explicitly integrated into the project of the DDS via the
control configuration.
ƒ The control configuration is an object in the Resources tab in the Object Organizer.
ƒ For each system block, the control configuration contains the inputs and outputs
with the identifier of the corresponding system variable, the absolute address and
the data type of the system variable:
012
ECSXA245

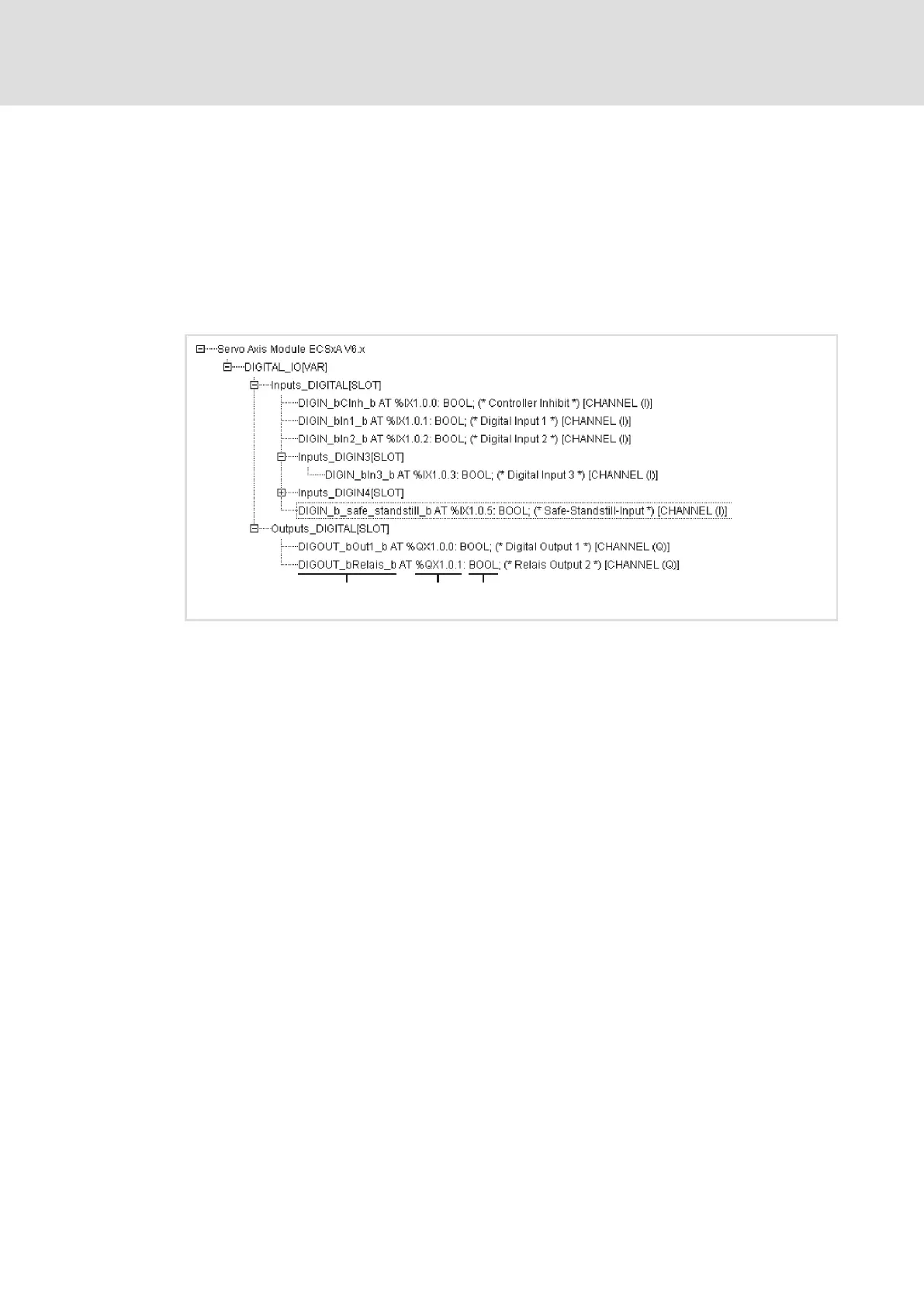

Fig. 1−3 Example: Control configuration with system blocks "Inputs_DIGITAL" and "Outputs_DIGITAL"
 Identifier of the system variable
 Absolute address
 Data type of the system variable
 Tip!
The control configuration provides a context menu via the right mouse button
which serves to add or remove system blocks.
