Mechanical installation
Mounting with fixing rails (standard installation)
Dimensions
4
49
EDBCSXA064 EN 3.2
4.2 Mounting with fixing rails (standard installation)
4.2.1 Dimensions
Note!
Mounting with ECSZS000X0B shield mounting kit:
ƒ Mounting clearance below the module > 195 mm
h
h
a
g
g
a
d1
d
g
g
0
1
³ 65 mm
e
³ 65 mm
d1
d
b
b
ECSxA005

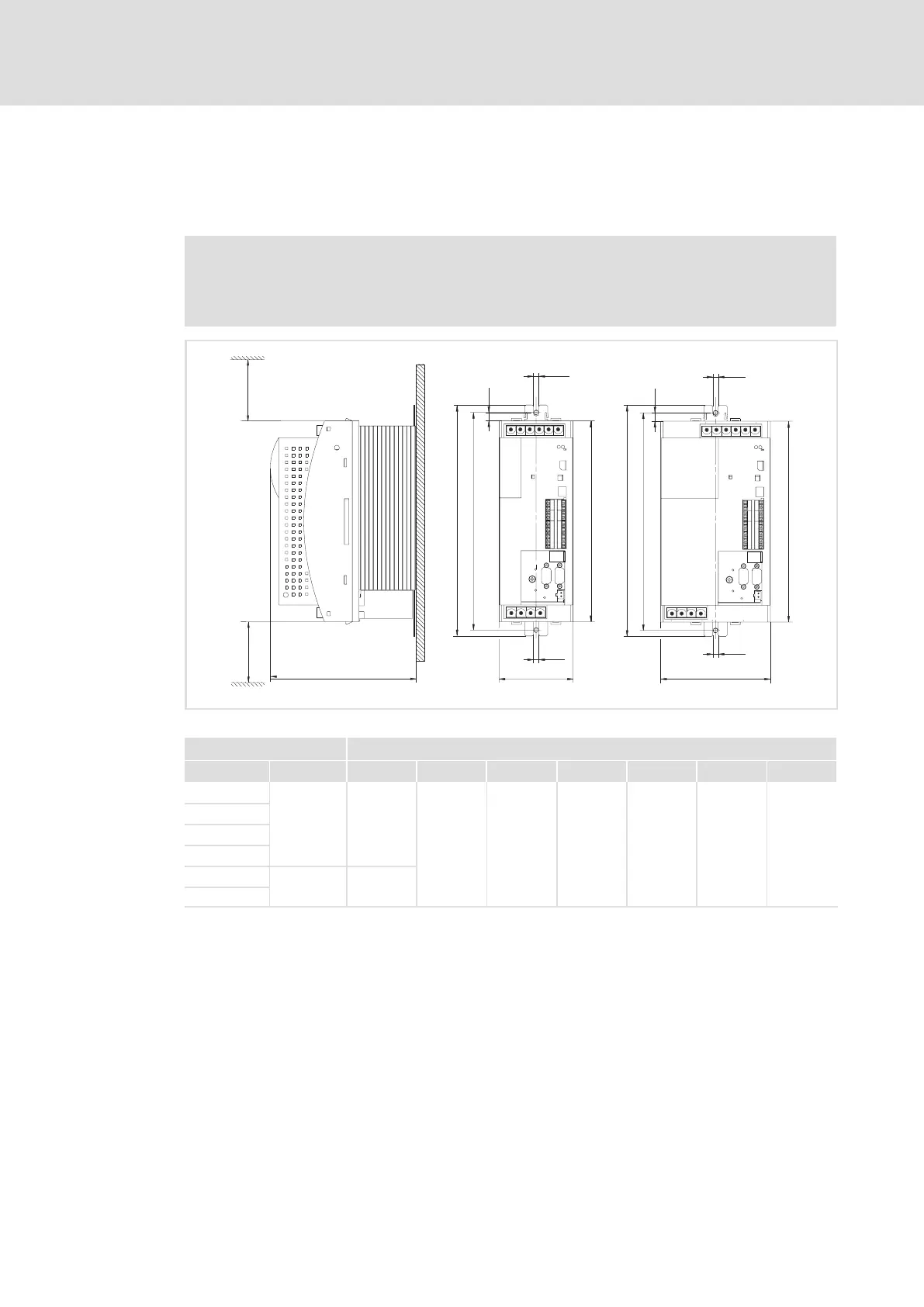

Fig. 4−1 Dimensions for "panel−mounted" design
Axis module Dimensions [mm]
Type Size a b d d1 e h g
ECSE004
88,5
240 276 260
176
212
1)
10
6,5
(M6)
ECSE008
ECSE016
ECSE032
ECSE048
131
ECSE064
1)
Max. 212 mm, depending on the plugged−on communication module
Application software: S = Speed & Torque P = Posi & Shaft
M = Motion A = Application
