4-18 Service Manual
5025-2xx, 4xx

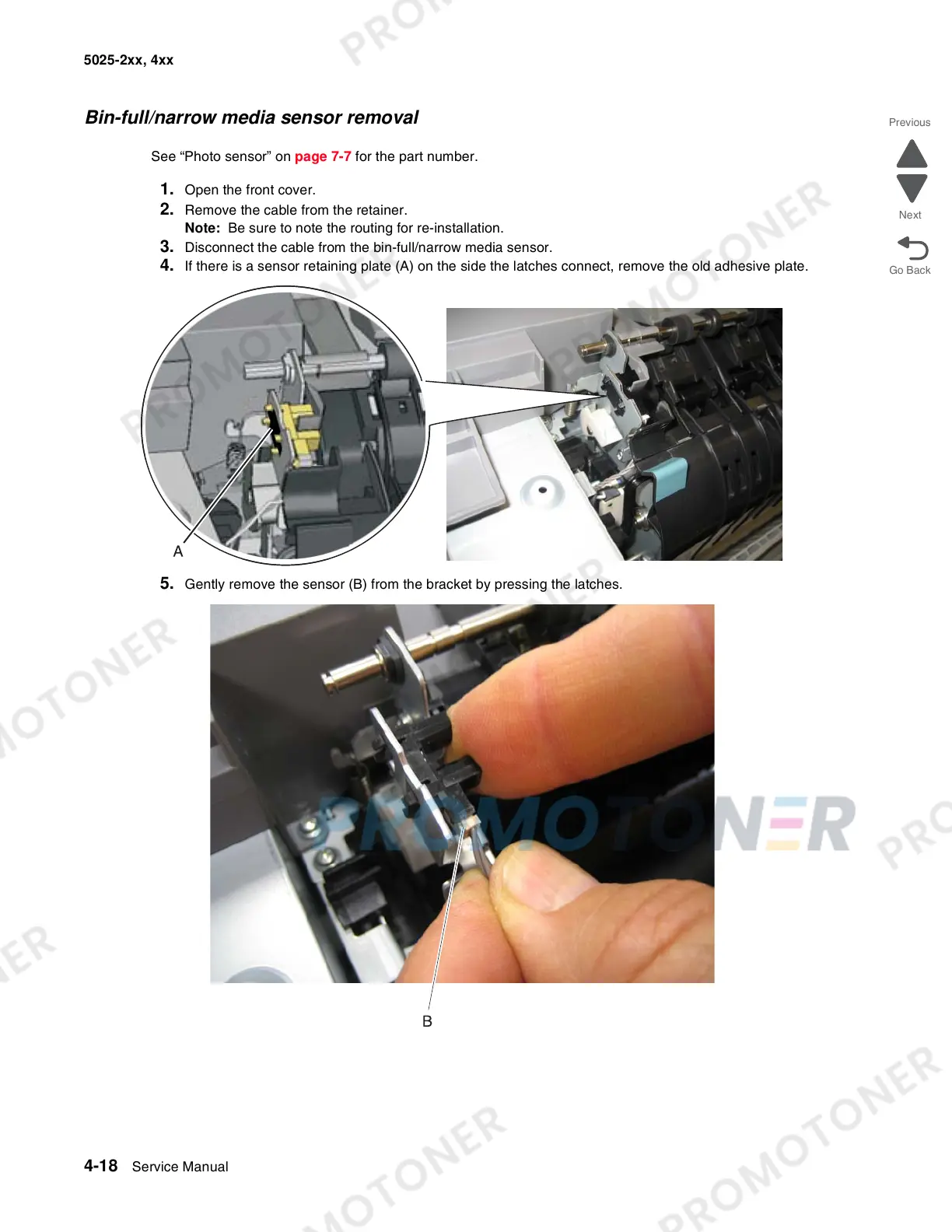

Bin-full/narrow media sensor removal
See “Photo sensor” on page 7-7 for the part number.
1. Open the front cover.
2. Remove the cable from the retainer.
Note: Be sure to note the routing for re-installation.
3. Disconnect the cable from the bin-full/narrow media sensor.
4. If there is a sensor retaining plate (A) on the side the latches connect, remove the old adhesive plate.
5. Gently remove the sensor (B) from the bracket by pressing the latches.
