Lexmark C543dn Service Manual

Repair information 4-45
5025-2xx, 4xx
Go Back
Previous
Next

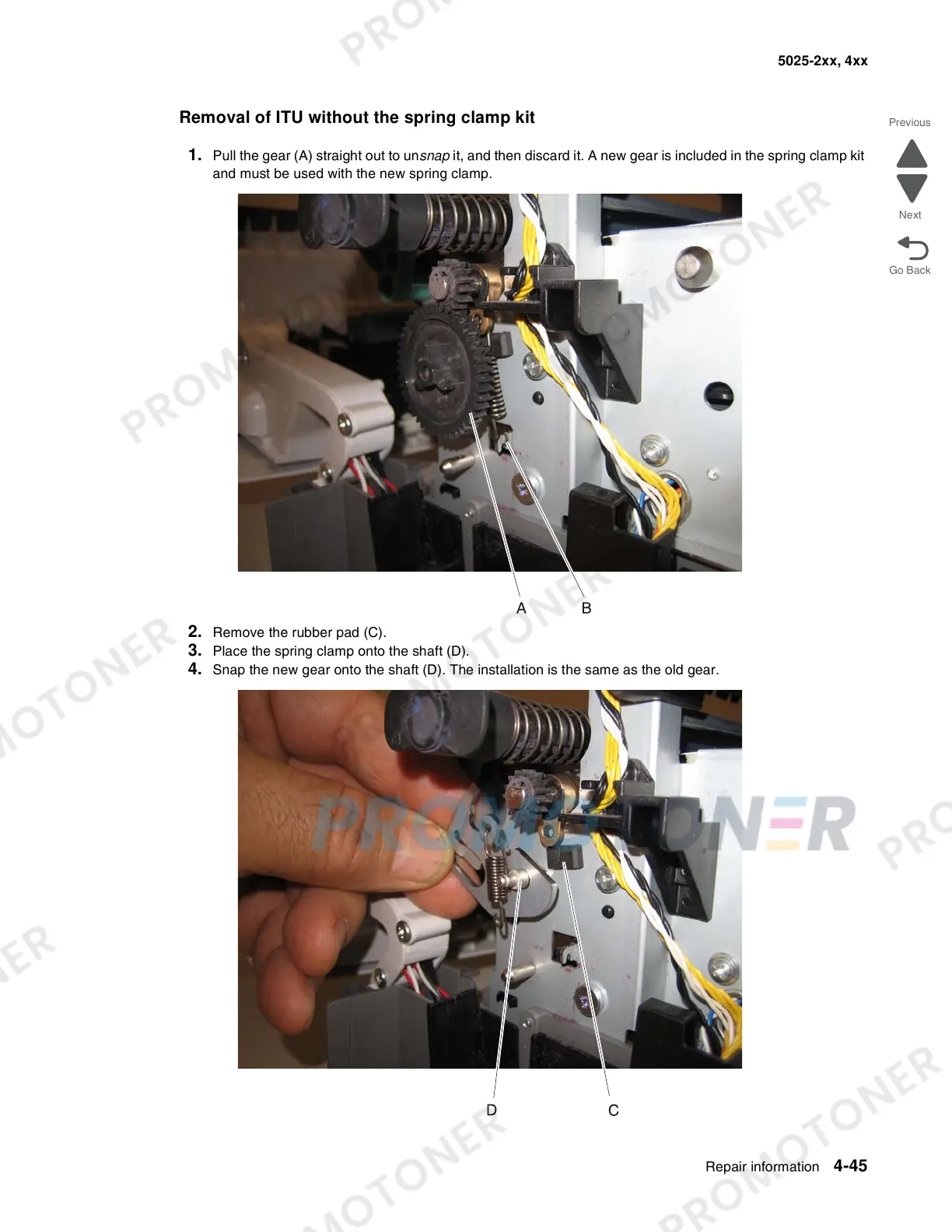

Removal of ITU without the spring clamp kit
1.
Pull the gear (A) straight out to unsnap it, and then discard it. A new gear is included in the spring clamp kit
and must be used with the new spring clamp.
2. Remove the rubber pad (C).
3. Place the spring clamp onto the shaft (D).
4. Snap the new gear onto the shaft (D). The installation is the same as the old gear.
