4-56 Service Manual
5025-2xx, 4xx
Go Back
Previous
Next

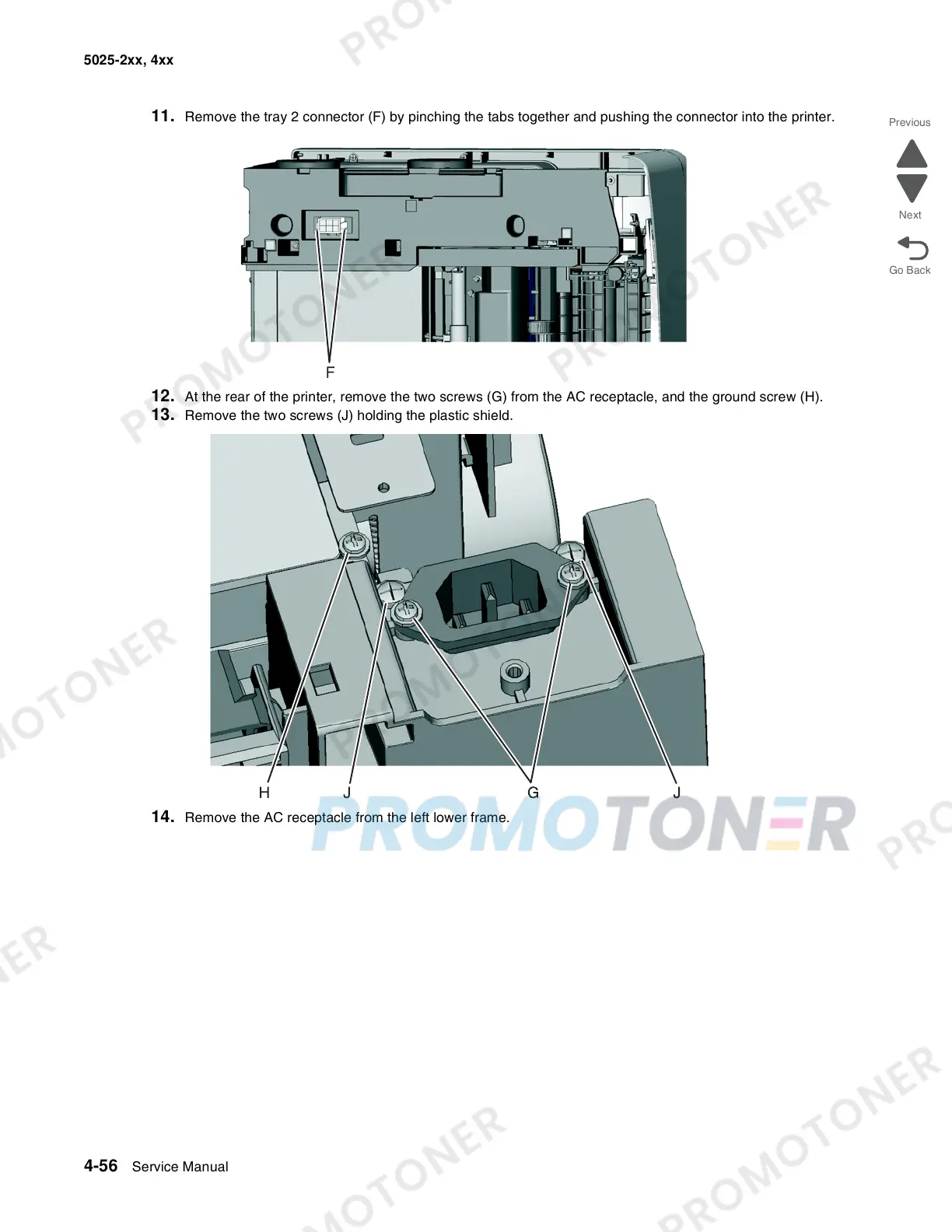

11. Remove the tray 2 connector (F) by pinching the tabs together and pushing the connector into the printer.
12. At the rear of the printer, remove the two screws (G) from the AC receptacle, and the ground screw (H).
13. Remove the two screws (J) holding the plastic shield.
14. Remove the AC receptacle from the left lower frame.
