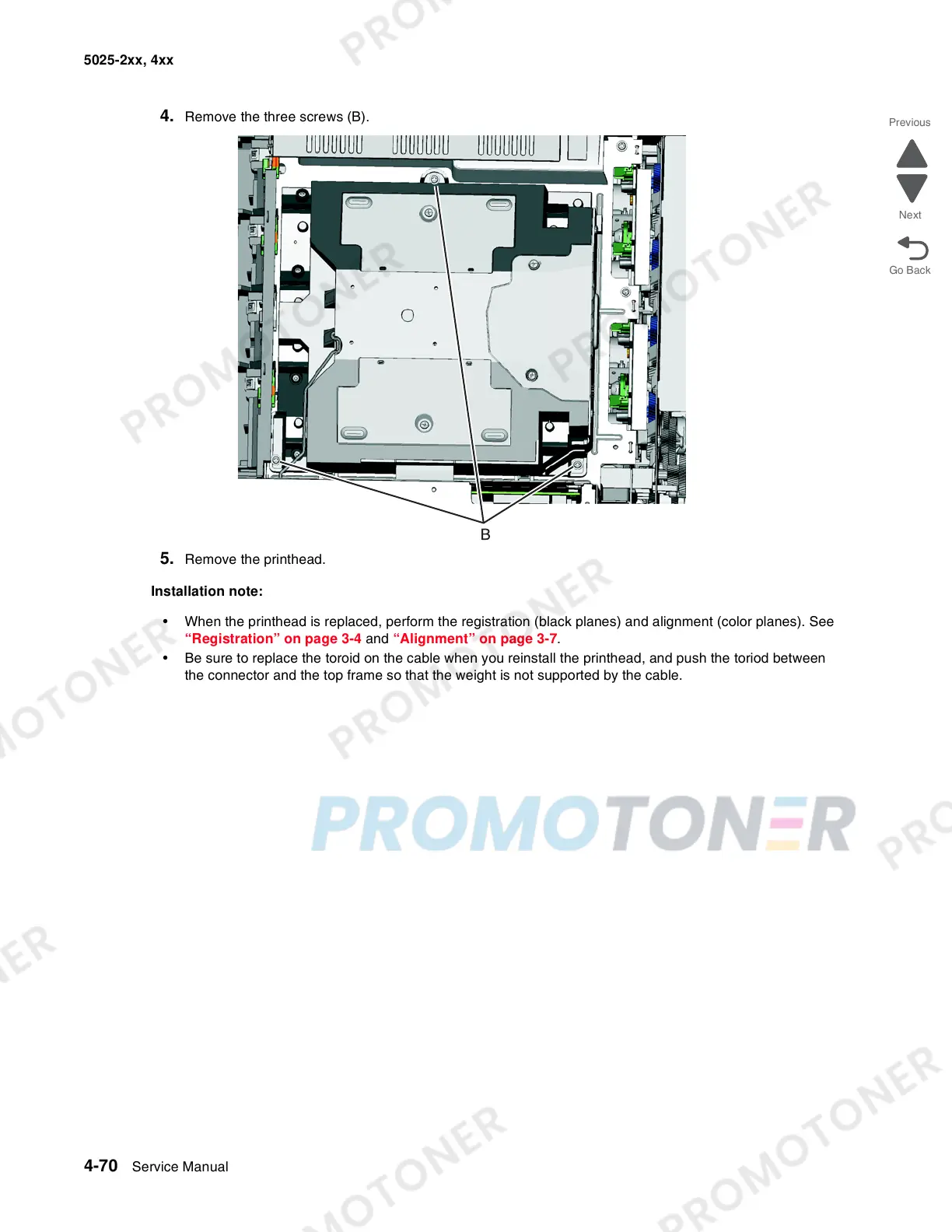

4-70 Service Manual
5025-2xx, 4xx
4. Remove the three screws (B).
5. Remove the printhead.
Installation note:
• When the printhead is replaced, perform the registration (black planes) and alignment (color planes). See
“Registration” on page 3-4 and “Alignment” on page 3-7.
• Be sure to replace the toroid on the cable when you reinstall the printhead, and push the toriod between
the connector and the top frame so that the weight is not supported by the cable.
