Operating elements for driving
3.1 Overview of the operating elements
3 - 36 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

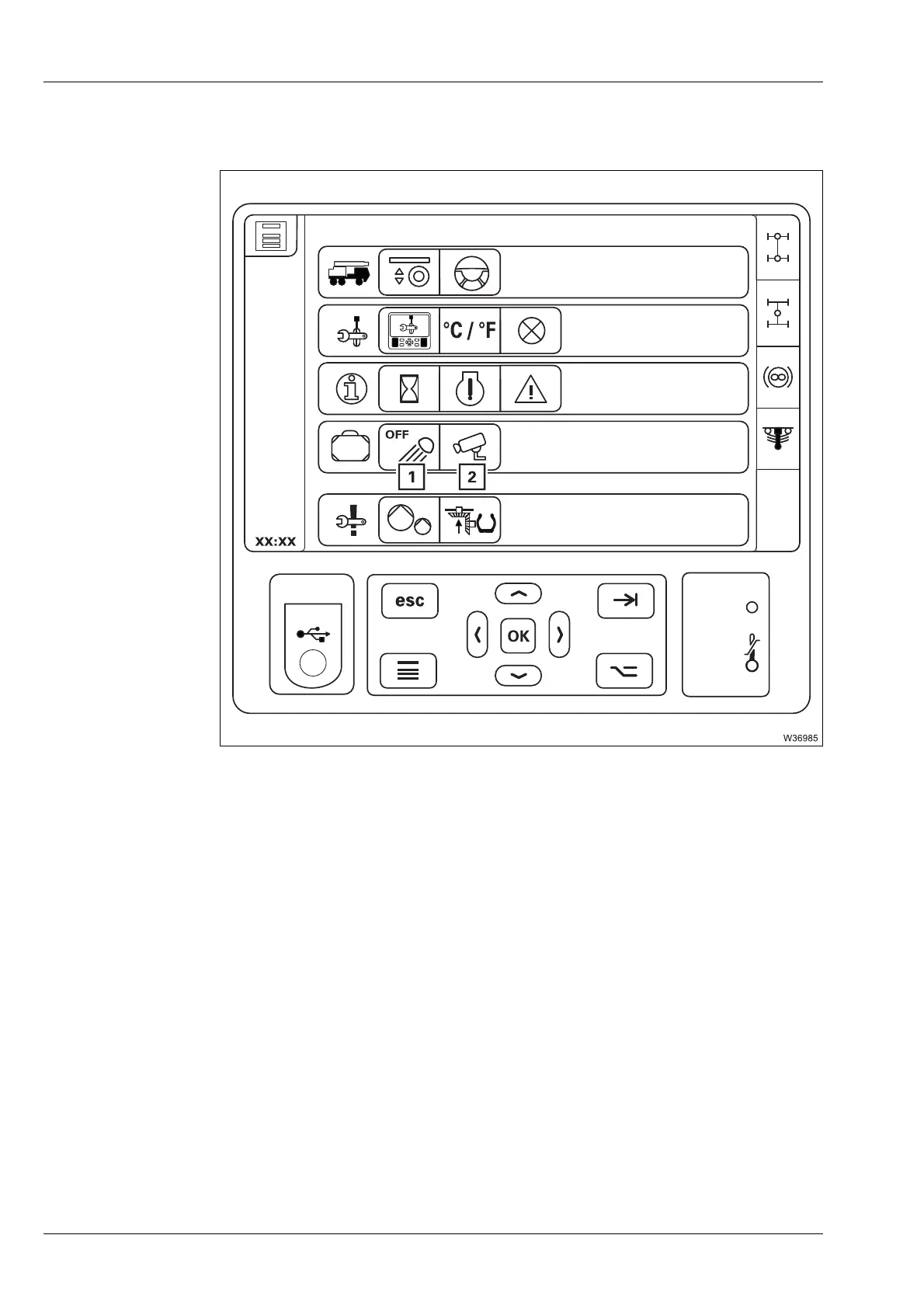

3.1.16 Various controls menu group
1 Outrigger lighting on/off à p. 3 - 67
2 Reverse camera on/off
à p. 3 - 52
