Operating elements for driving
3.2 Short description of the operating elements
3 - 56 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
3.2.12 Final drive
à Longitudinal and transverse differential locks, p. 5 - 51
Driving menu
Transverse differential locks on/off
When a symbol (1) is selected both transverse differential locks are
switched on or off.

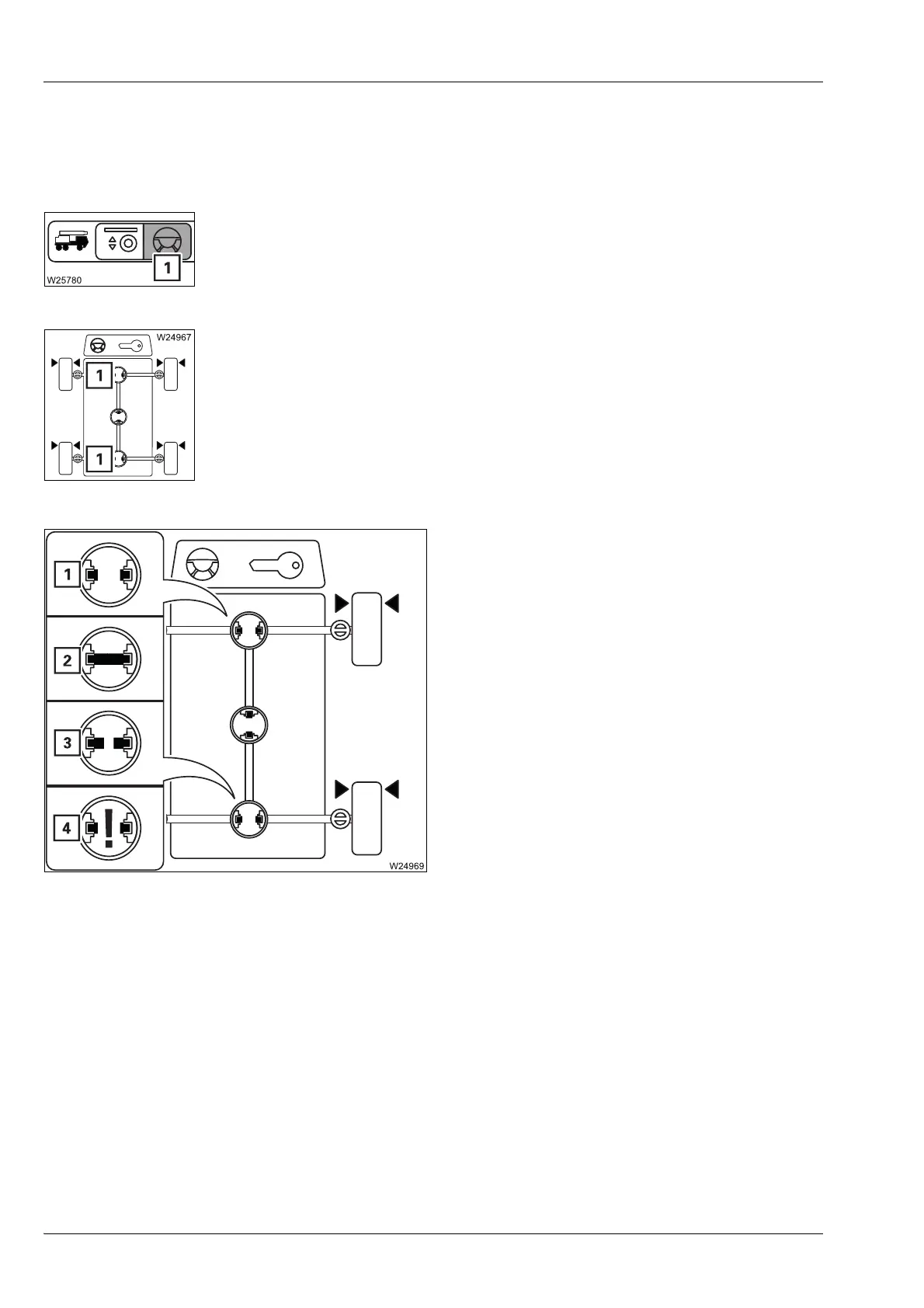

Transverse differential locks display
The current status is shown using different
symbols.
To open: Select symbol (1) and confirm – menu is opened
– To switch on: Select symbol (1) and confirm – symbol is red
– To switch off: Select symbol (1) and confirm – symbol is green
1Green – locks off
2Red – locks on
3 Yellow – intermediate position
4 Violet – error
à p. 5 - 51
