Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 690 en 3 - 55
GMK4100L-1
23.11.2017
3.2.11 Transfer case
Driving menu
Transfer case for off-road gear on/off
à p. 5 - 50

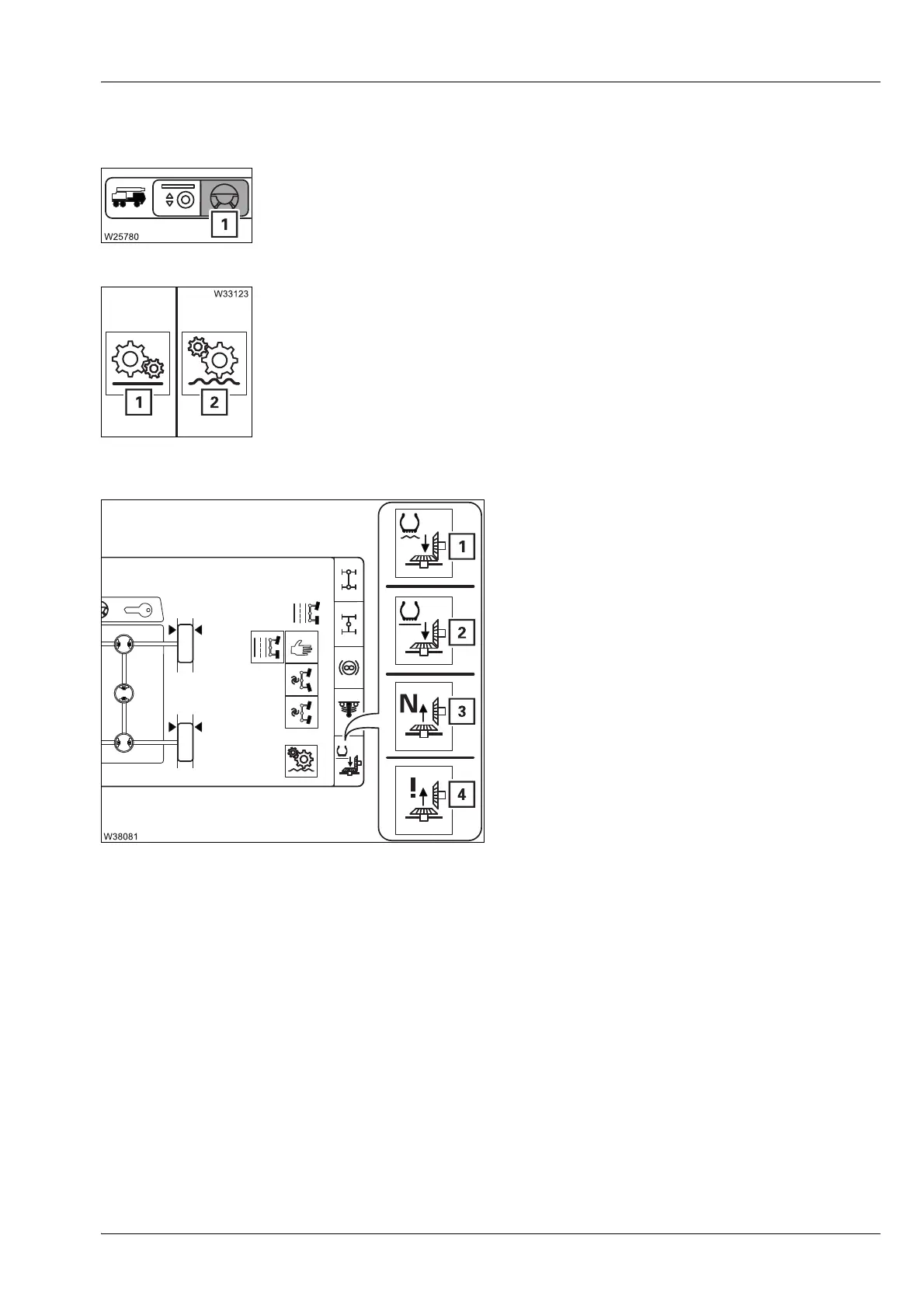

Transfer case display
The current status is shown using different
symbols:
To open: Select symbol (1) and confirm – menu is opened
– To switch on: Select symbol (2) and confirm – off-road gear
engaged
– To switch off: Select symbol (1) and confirm – off-road gear
disengaged
1 Off-road gear on
2 Off-road gear off – on-road driving
3 Select neutral
4 Error – violet
