12.9 Rigging/unrigging the counterweight
12 - 76 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

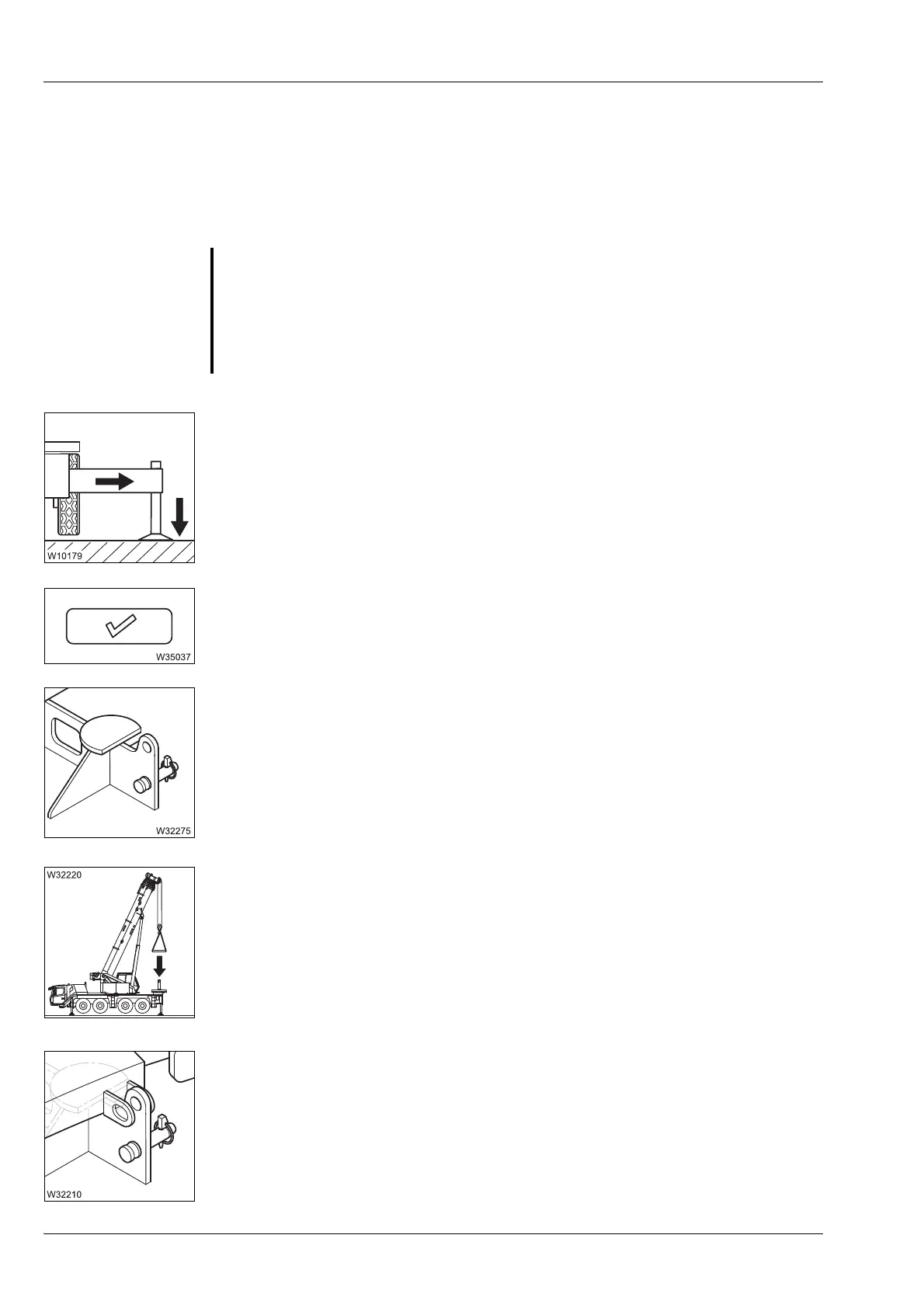

12.9.5 CHECKLIST: Rigging the counterweight
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
1. The truck crane is stabilised with the outrigger span required for crane
work according to the
load capacity chart. Enabled outrigger spans
–For the
Standard slewing range type; Ã p. 12 - 30,
–For the
MAXbase slewing range type; Ã p. 12 - 34.
2. Enter and confirm the current rigging mode;
à p. 11 - 32.
3. If necessary, unlock the
rear counterweight platform à p. 12 - 95
4. Assemble the required combination of counterweights:
–
à Slinging points on the counterweight sections, p. 12 - 74
–
à Assembling counterweight combination, p. 12 - 80
5. If necessary, unlock the 2.7 t base plate
à p. 12 - 95
G
Danger of overturning when slewing with a rigged counterweight
Always check before slewing whether slewing is permitted in the truck
crane's current rigging mode (counterweight, outrigger span, working
radius).
Correct the rigging mode if necessary;
à Slewing with rigged counterweight,
p. 12 - 97.
