12.11.5 Step at the crane cab

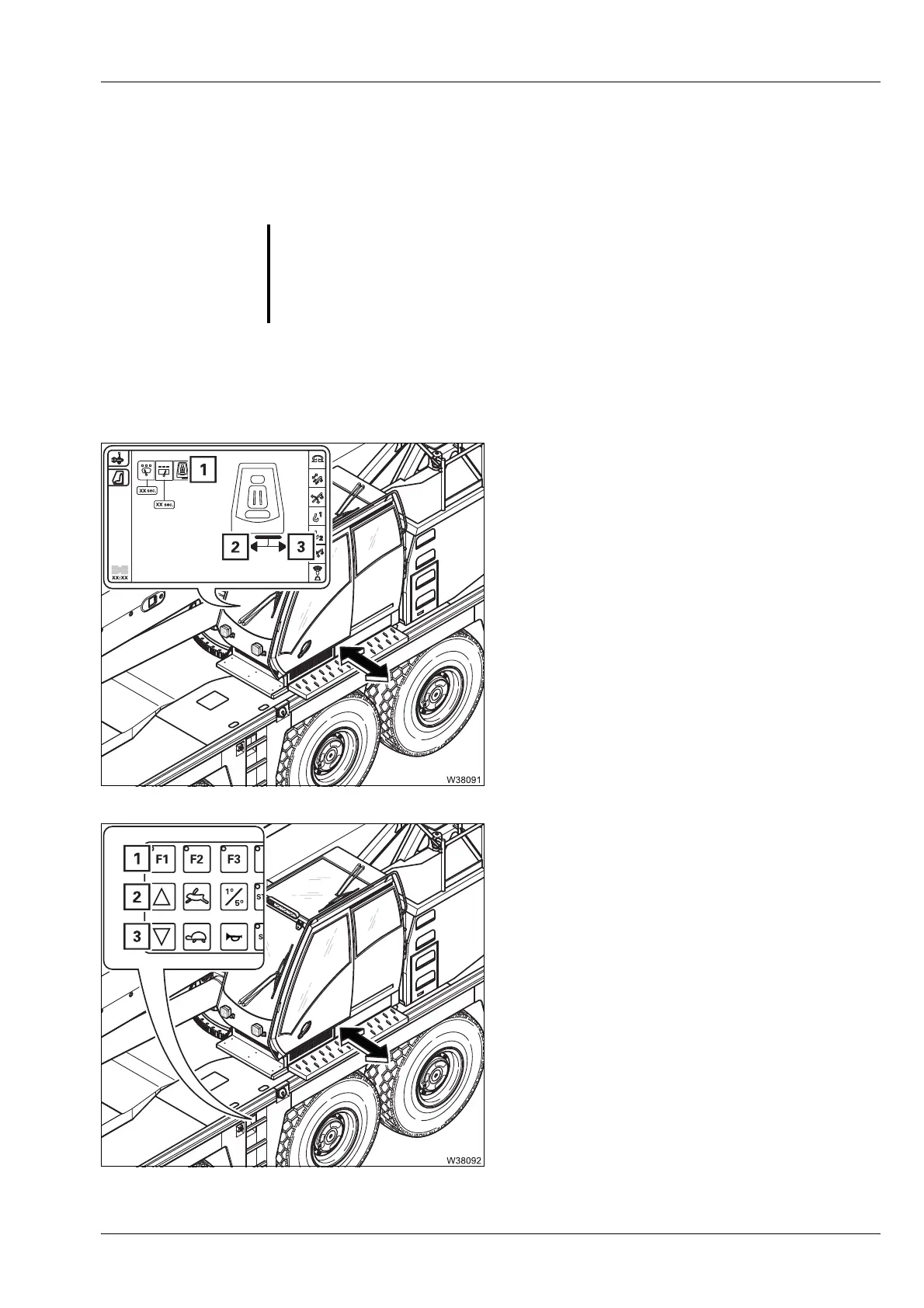

You can operate the access ladder in the Crane cab menu or on the outrigger
control unit.
H
You can only extend the step at the control unit when you are on the
operator side.
In the
Crane cab menu
Select
extend/retract access ladder as neces-
sary (1).
Extending
• Select and confirm the symbol (3) – the step
extends.
Retracting
• Select and confirm the symbol (2) – the step
retracts.
On the outrigger control unit
Extend
• Press the buttons (1) and (3) – the step
extends.
Retract
• Press the buttons (1) and (2) – the step
retracts.
G
Risk of accidents by exceeding the permissible overall width!
Always retract the step for on-road driving.
When the step is extended, the overall width specified for on-road driving
is exceeded.
